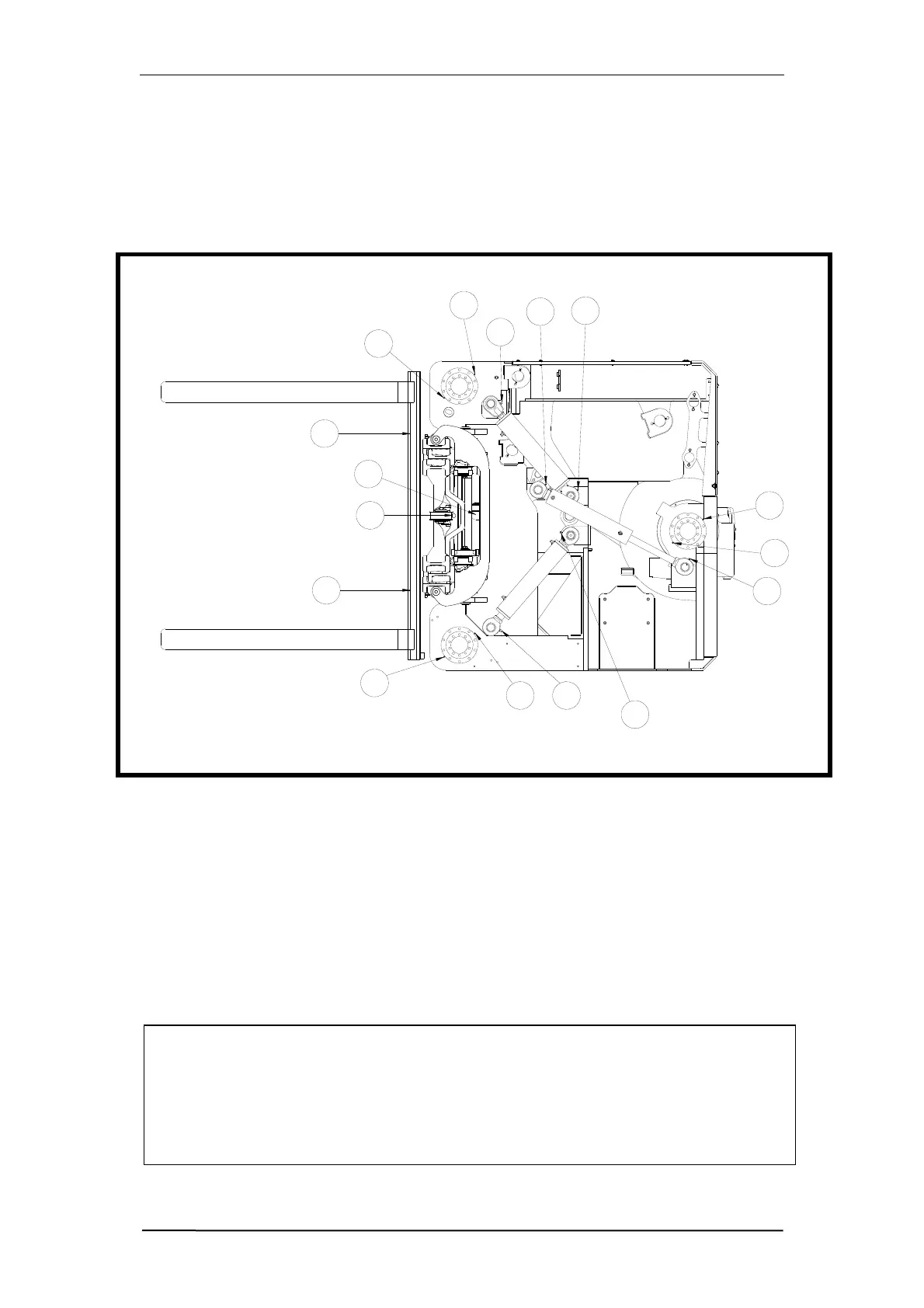

4.12: Grease Point Chart
Lubricate all of the points indicated on the chart below on a weekly basis
using the appropriate EP2 Grease. Also lubricate all grease points on the
mast and any attachments that may be fitted to the Combilift.
1. Swivel Front 2. Swivel Back
3. Steering Front 4. Steering Back
5. Rear Steering 6. Swivel Front
7. Swivel Back 8. Rear Steering
9. Steering Back 10. Steering Front
11. Swivel Back 12. Swivel Front
13. Fork Positioner Left 14. Front Tilt
15. Rear Tilt 16. Fork Positioner Right
