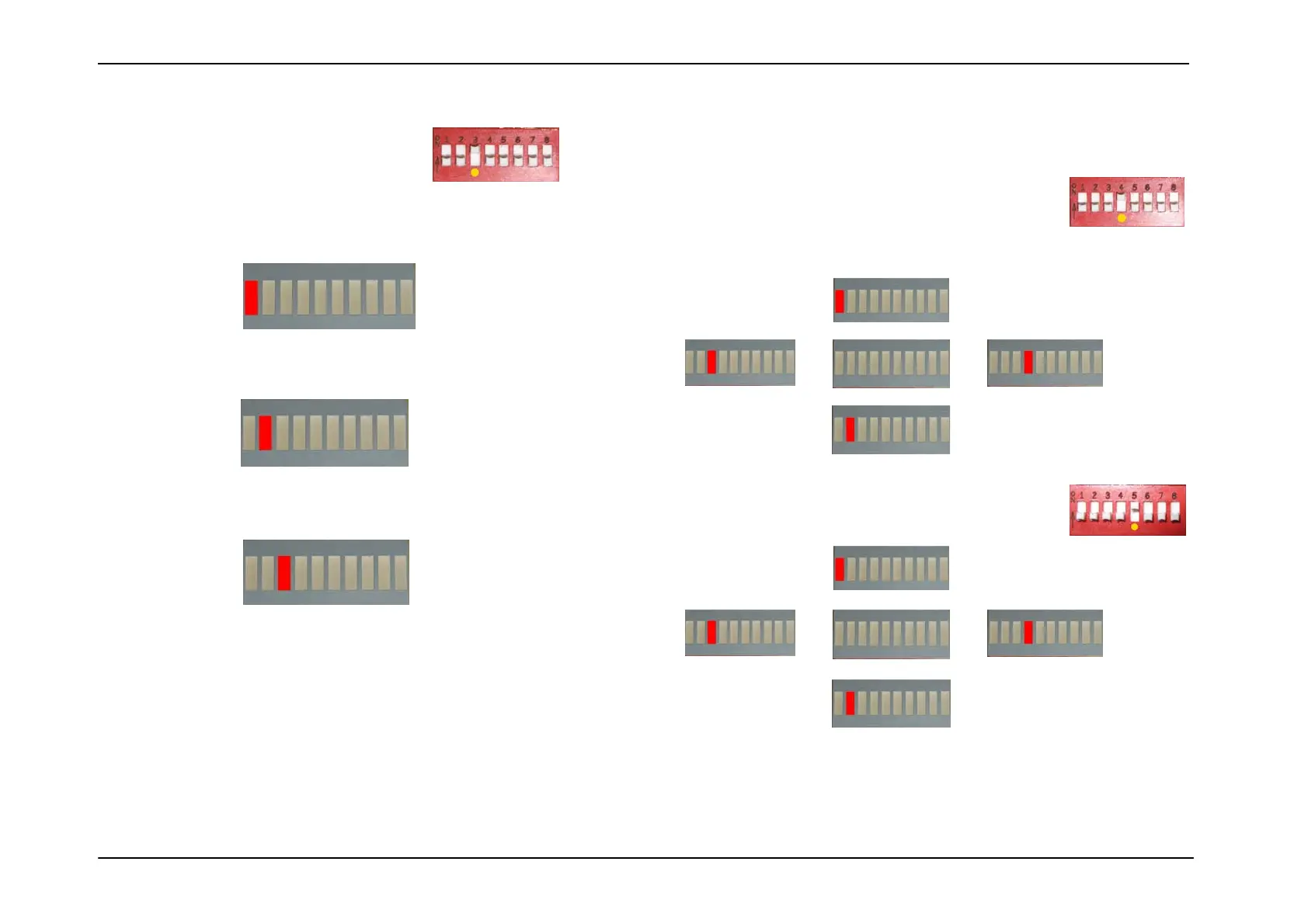

Mode 3 – Switch Mode
Move Switch ‘3’ to the ‘ON’ Position
Park Brake – LED 1
Mast Height Override Switch – LED 2
Mast Height Proximity Sensor – LED 3
 The Park Brake will only remain lit while the park brake is engaged.
 LED 2 will be ON constantly on all machines that do not have the
Mast Height Override Function.
 To energise the mast height proximity sensor lift the forks to the
height of the proximity sensor.
Mode 4 – Solenoid Mode
NOTE: This mode must only be used with the key turned on, NOT
with the engine running.
Forward, Reverse, 0 and 90 Solenoids
Move Switch ‘4’ to the ‘ON’ Position to test.
Use the directional joystick to energise the solenoids as below
FWD Solenoid
0 Solenoid
90 Solenoid
REV Solenoid
Steering, Reflex, Carousel and Drive Solenoids
Move Switch ‘5’ to the ‘ON’ Position to test.
Steering Solenoid
Carousel Solenoid
Drive Solenoid
Reflex Solenoid
 The LED on each solenoid should be lit along with the LED on the board.
 If the solenoid LED does not light, a wiring problem may be present.
 If the solenoid LED is lit but a problem remains the solenoid and/or the
valve should be checked for malfunction.
