Maintenance
101
C3M2-OM-EN-02
Note
Optional attachments with moving parts may have additional grease points
that have not been indicated on the above chart.
Grease points on optional attachments and guide rollers must be located
and greased every 100 hours or 3 months using EP2 grease.
6.7 Grease Point Chart

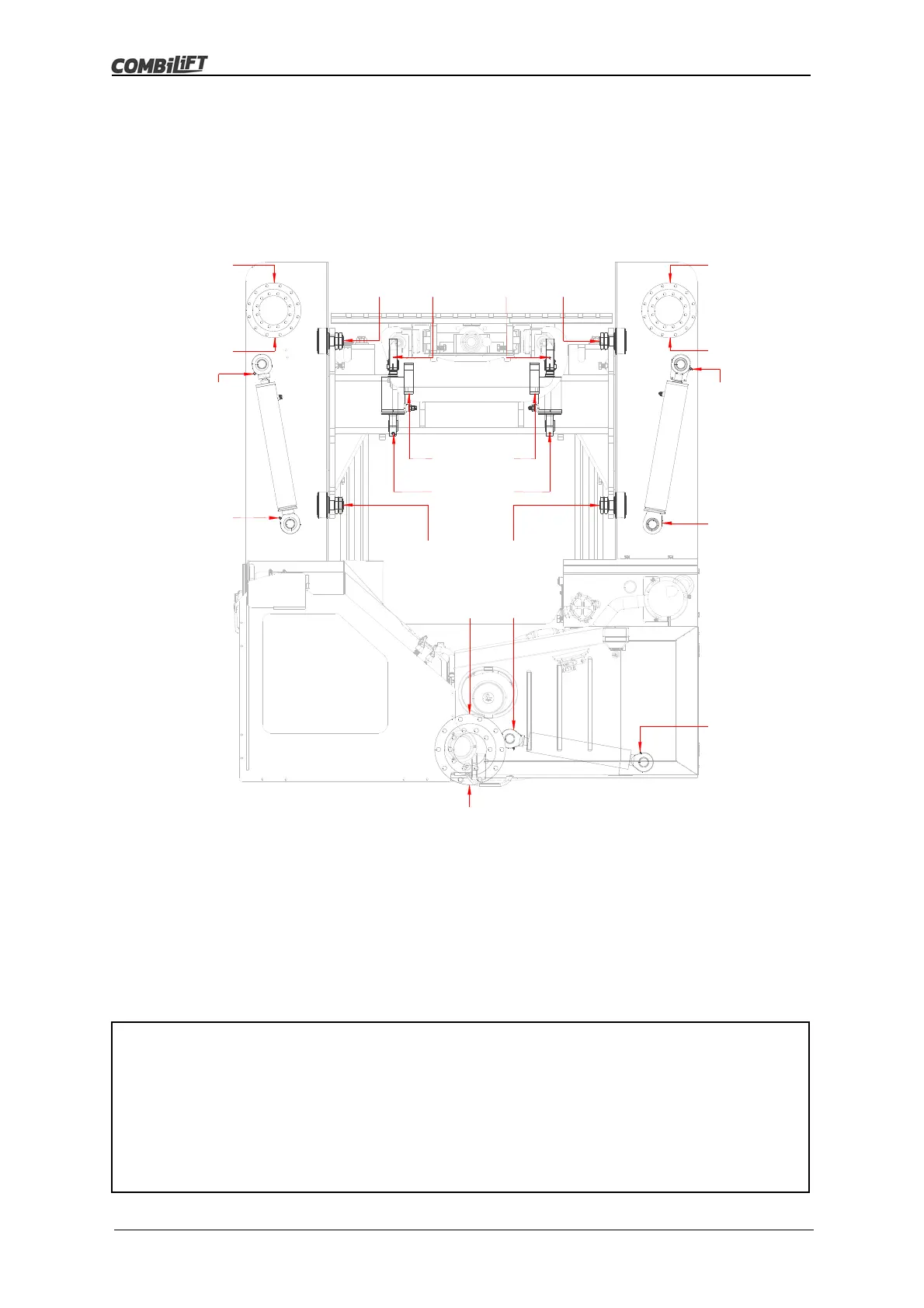

The diagram below indicates all of the points on the Combilift that must be greased
regularly. A copy of this diagram is located in the operator compartment in the form of
a decal / Information sticker.
All Points must be greased every 100 hours or 3 months with EP2 grease.
1. RH Swivel Slew 1
2. RH Swivel Slew 2
3. RH Steering Front
4. RH Steering Back
5. Rear Steering Back
6. Rear Swivel Slew 1
7. LH Steering Back
8. LH Steering Front
9. LH Swivel Slew 1
10. LH Swivel Slew 2
11. LH Carriage Front
12. LH Tilt Front
13. RH Tilt Front
14. RH Carriage Front
15. RH Carriage Back
16. Rear Steering Front
17. Rear Swivel Slew 2
18. LH Carriage Back
19. LH Tilt Back
20. RH Tilt Back
21. RH Mast Tilt Bush
22. LH Mast Tilt Bush
17 16
18 15
11 12 1413
2
20
21
19
22
5
4
3
1
7
8
9
10
6
