CombiLift C5000 - Power Distribution Module (PDM) Fuses

Appendices
146
C3M2-OM-EN-02
7.5.2 Power Distribution Module (PDM) Fuses

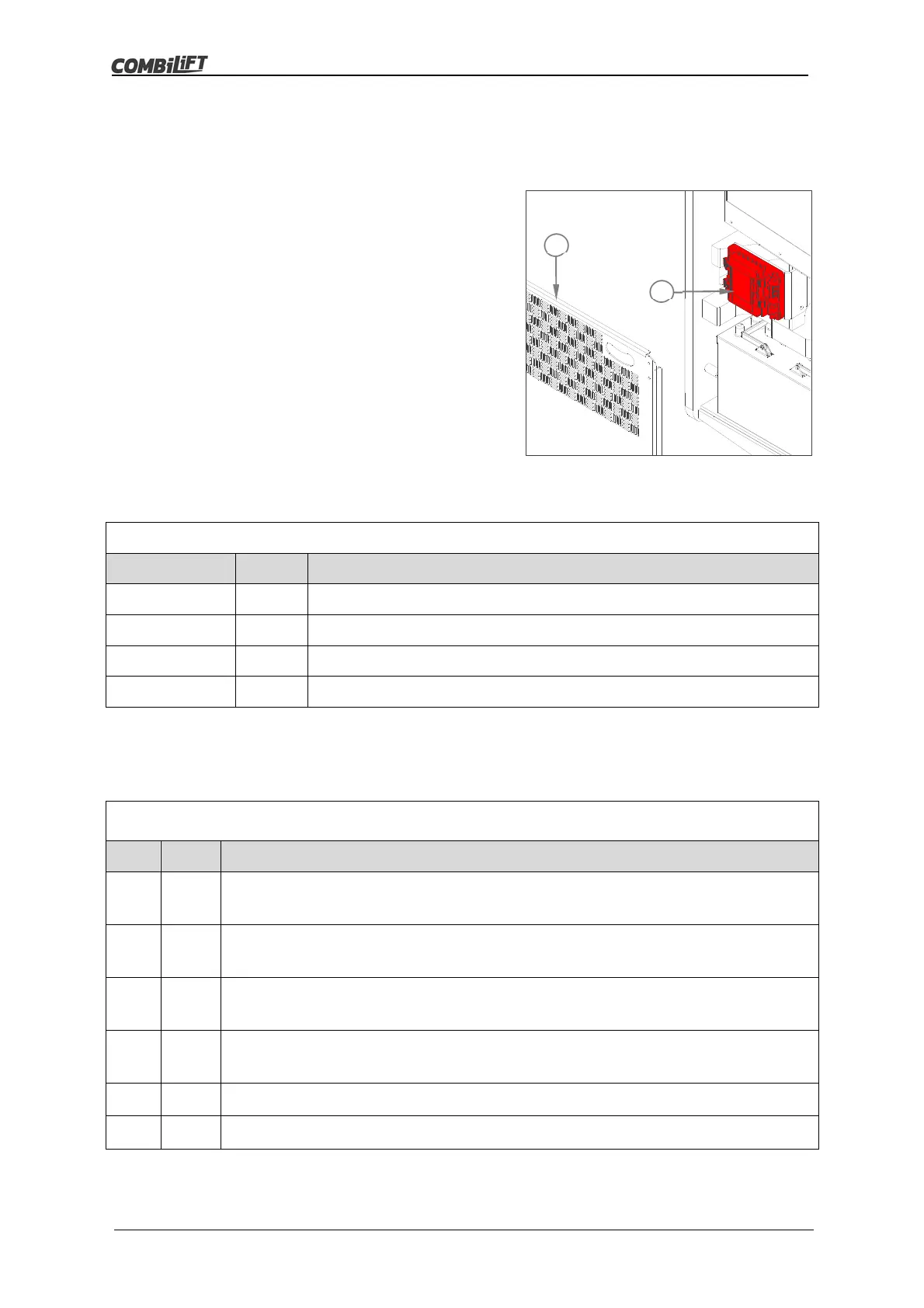

The power distribution module (PDM) is
mounted behind the large access panel on the
right hand side of the truck. Remove the
access panel (A) to gain access to the PDM
(B).
The PDM can hold four midi link fuses and six
ATO/regular blade fuses. Remove the cover
from the PDM to access the fuses.
The midi link fuses are numbered from 1 to 4
and the ATO/regular blade fuses are lettered
from A to F.
The table below gives the rating of and the
function related to each of the midi link fuses
located inside the PDM.
PDM Midi Link Fuse Table
Fuse Amps Circuit
1 60 Main Fuse - Ignition Key Switch Supply
2 60 Glow Heater Relay (Diesel Only)
3 30 Engine ECU Supply
4 30 Extra Oil Cooler With Electric Fan (If Fitted)
The table below gives the rating of and function related to each of the ATO/regular
blade fuses located inside the PDM.
PDM ATO/Regular Blade Fuse Table
Fuse Amps Circuit
A 15
Supply To CR2532 PLC ST 1 – Steering Solenoids, Brake Solenoid, Reversing
Bleeper
B 15
Supply To CR2532 PLC ST 19 – Drive Solenoid, Forward Solenoid, Reverse
Solenoid, Dead Band Solenoid
C 15 Supply To CR2532 PLC EX 1 – Work Lights, Road Lights (If Fitted)
D 15
Supply To CR2532 PLC EX 19 – Valve Chest Locking Valve Solenoids, Auxiliary
Hydraulic Function Solenoids (If Fitted),
E 20 Supply To Fuel Pump Relay Pin 30 (Diesel Only)
F 15 Supply Air Seat Relay (If Fitted) Pin 30
A
B
