3.4.1 LCD Main Interface
The specification of CM1200Belectrocardiograph is: 640× 480 color LCD (5.6 inch screen).

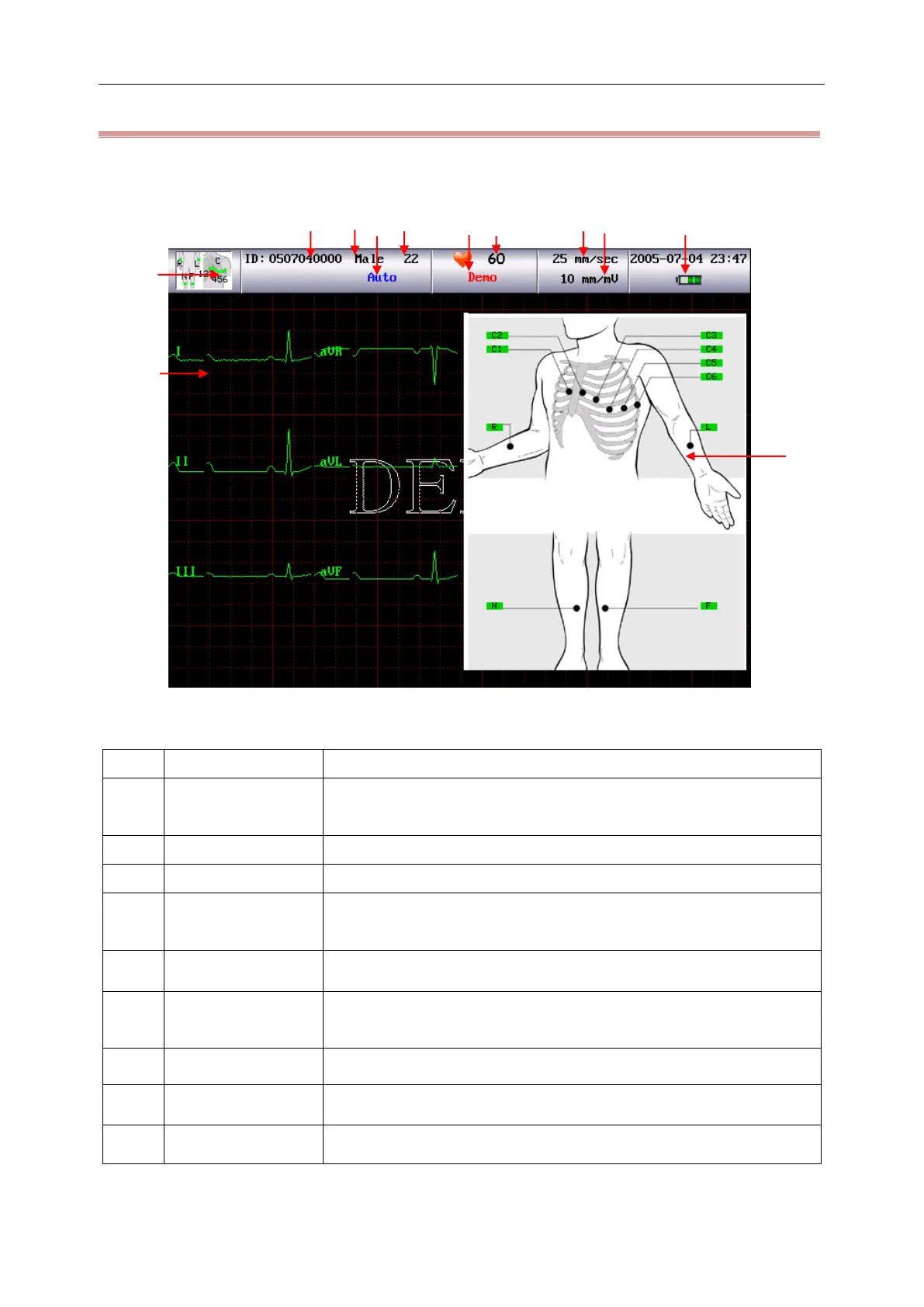

Figure 3-2 Main Interface
No.
Name
Explanation
A
Leads Status Map
Show the falling off state of the lead, white color shows that the lead is
connected and black point shows the falling off state of the lead.
B
Rhythm Lead Mode
Lead Modes: Auto/Manual/Rhythm
C
ID
Patient ID
D
Record Speed
The selection of record speed: 5mm/s, 10mm/s, 12.5mm/s, 25mm/s,
50mm/s
E
Sex
Sex: Male/Female
F
Gain
Gain：AGC, 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 10/5mm/mV,
20/10mm/mV
G
Age
Patient Age
H
Heart Rate
Display the current heart rate values
I
Time / Battery
Display and current time and battery capacity
A
I
F
B
J
H
D
G
C
K
L
E
