4.2 Loading the Record Paper
This electrocardiograph supports two kinds of record paper: rolled thermosensitive record paper and folded
thermosensitive record paper. When there is no record paper loaded or it reaches the end of the record paper,
“Paper?” will be displayed on the LCD screen to remind the user of loading or replacing the record paper.
Instruction: When using folded thermosensitive record paper, the paper roller should be taken out.

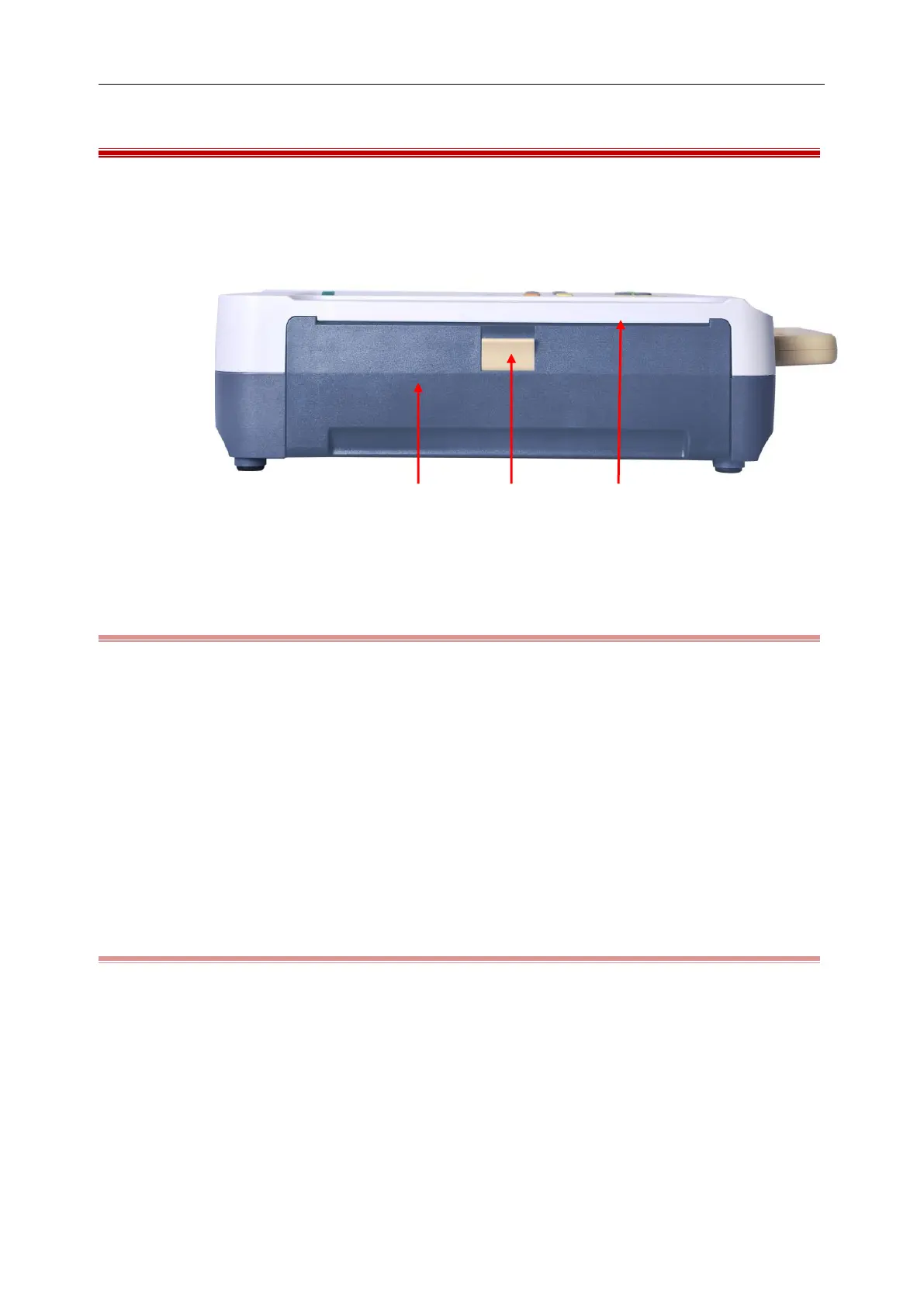

Figure 4-1 Recorder
4.2.1 Loading the Rolled Thermosensitive Record Paper：
1) Press the latch on the left of the recorder with one hand and open the recorder cover with another
hand forced down;
2) Take out the paper roller, and remove remaining paper from the left of roller if necessary;
3) Unwrap the new rolled record paper and put it into the paper tray; make sure that the grid surface
should face upward
4) Place the record paper and roller gently in the paper tray with the roller pin
5) Pull about 2 cm paper out from the paper exit on the left of the recorder and close the recorder
cover.
4.2.2 Loading the Folded Thermosensitive Record Paper:
1) Press the latch on the left of the recorder with one hand and open the recorder cover with
another hand forced down;
2) Take out the remaining folded record paper in the paper tray;
3) Unwrap the new folded record paper and place it into the paper tray; make sure that when the
free end of the record paper is vertical, the grid surface of the record paper should forward
right;
4) Pull about 2cm paper out from the paper exit on the left of the recorder and close the recorder
To Next Page
