Comen H3 - Back Panel

General Introduction
2-4
Figure 2-3 Right panel
Note
 Currently our ECG machine H3 supports such external printers as
PANTUM P3255DN.
Warning
 The accessories connected to the analog and digital interfaces should
be validated according to the respective IEC standards. Furthermore
all configurations should comply with the valid version of the IEC
60601-1. Therefore anybody, who connects additional equipment to
the signal input connector or signal output connector to configure a
medical system, must make sure that it complies with the
requirements of the valid version of the system standard IEC60601-1.
If there is any problem, consult us or your local agent.
 The sum of electric leakage should never exceed the electric leakage
limits while patient cable interface, external input and output interface
and net interface are connected with other equipments at the same
time.
2.6.3 Back panel

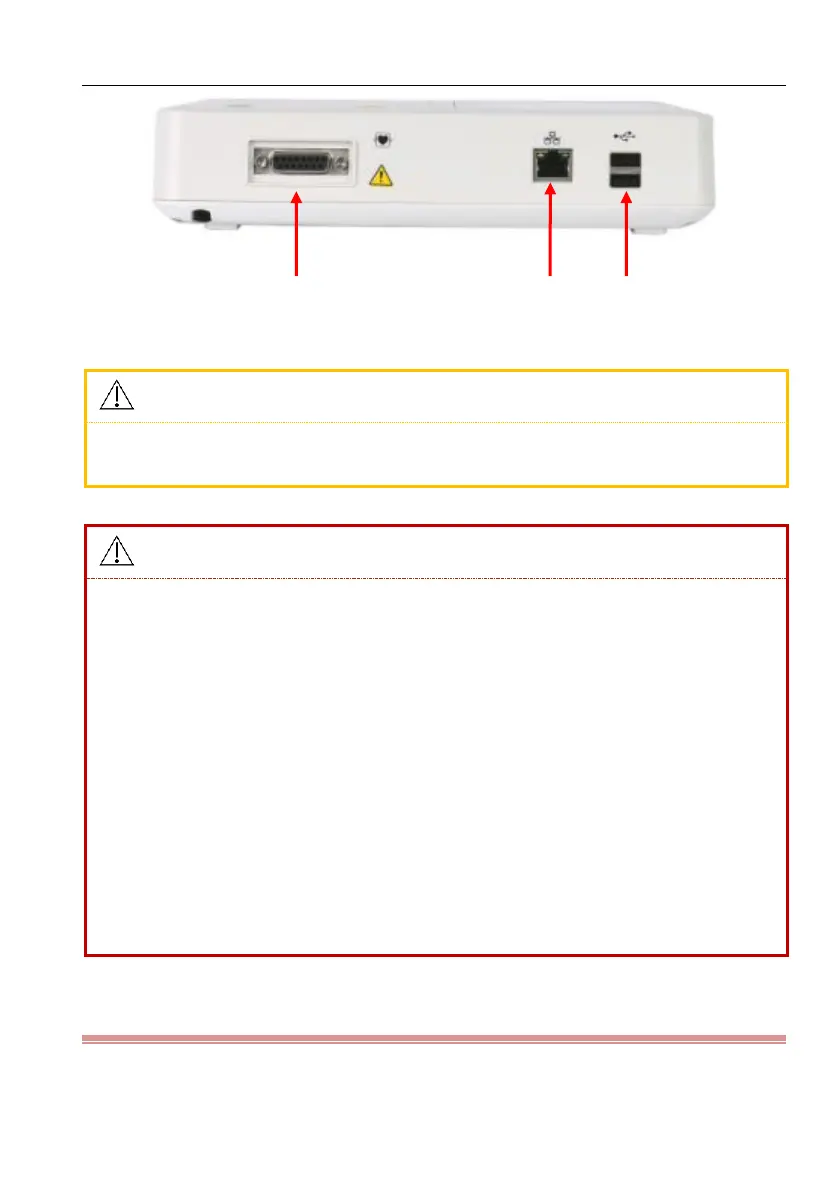

The back panel of this equipment is shown as the following figure:
ECG cable socket
Network
connecto
r
USB connector
