System Settings
4-20
transfer file directory as required.
4.7 ECG Recording
Take the ECG recording under auto mode with 3×4 display format, 3×4+1R
average template and detailed report information as an example, and the output
ECG report includes part (a) and part (b),shown as the follows:

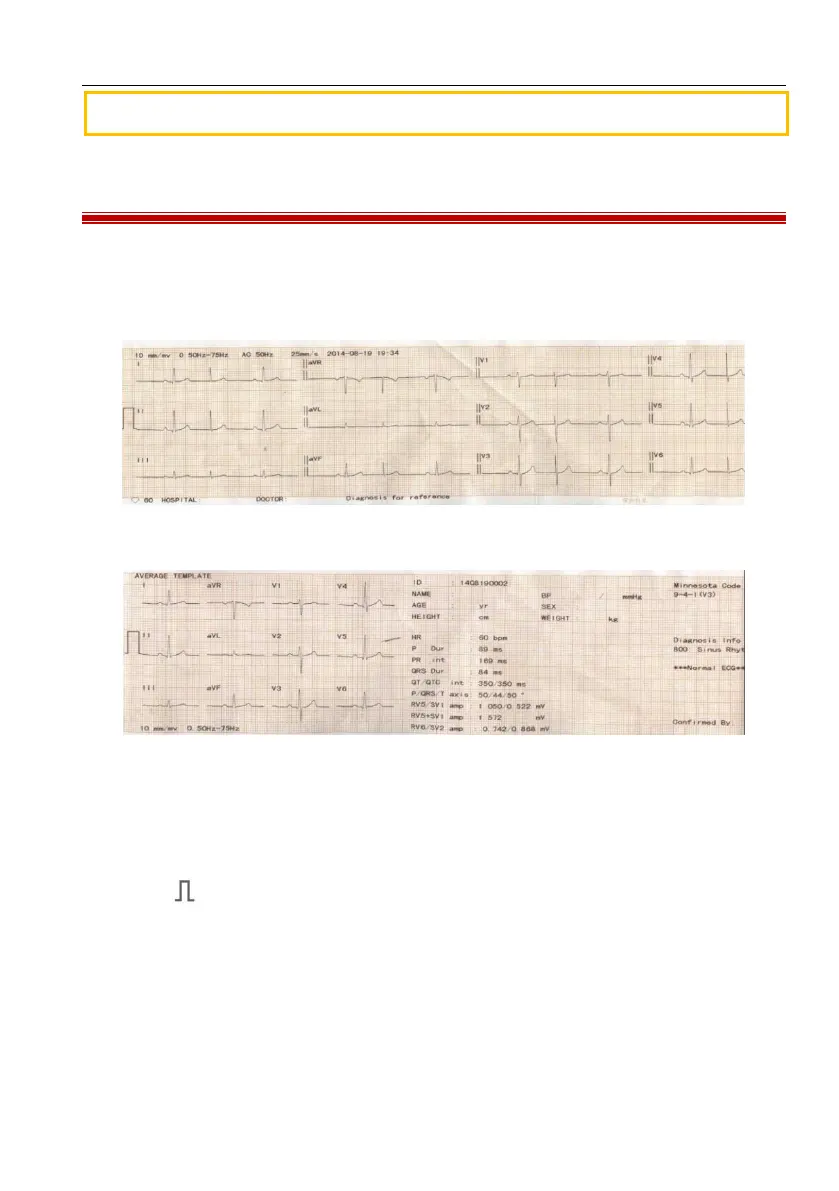

Figure 4-9 (a) Report format 3×4
Figure 4-9 (b) Average template 3×4 and detailed report information
Part (a) and part (b) include the following contents:
Display information
(Calibration Signal of the 1mV)
І, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 (Identifiers of 12
Standard Lead and ECG waveforms)
0.15~100Hz (0.15Hz Baseline Drift Filter, 100Hz Lowpass Filter),AC
50Hz (AC Filter), 25mm/s (Print Speed), 10mm/mV (Gain),
3×4Average Templates and confirmed by.
