3.4 Connection Procedure

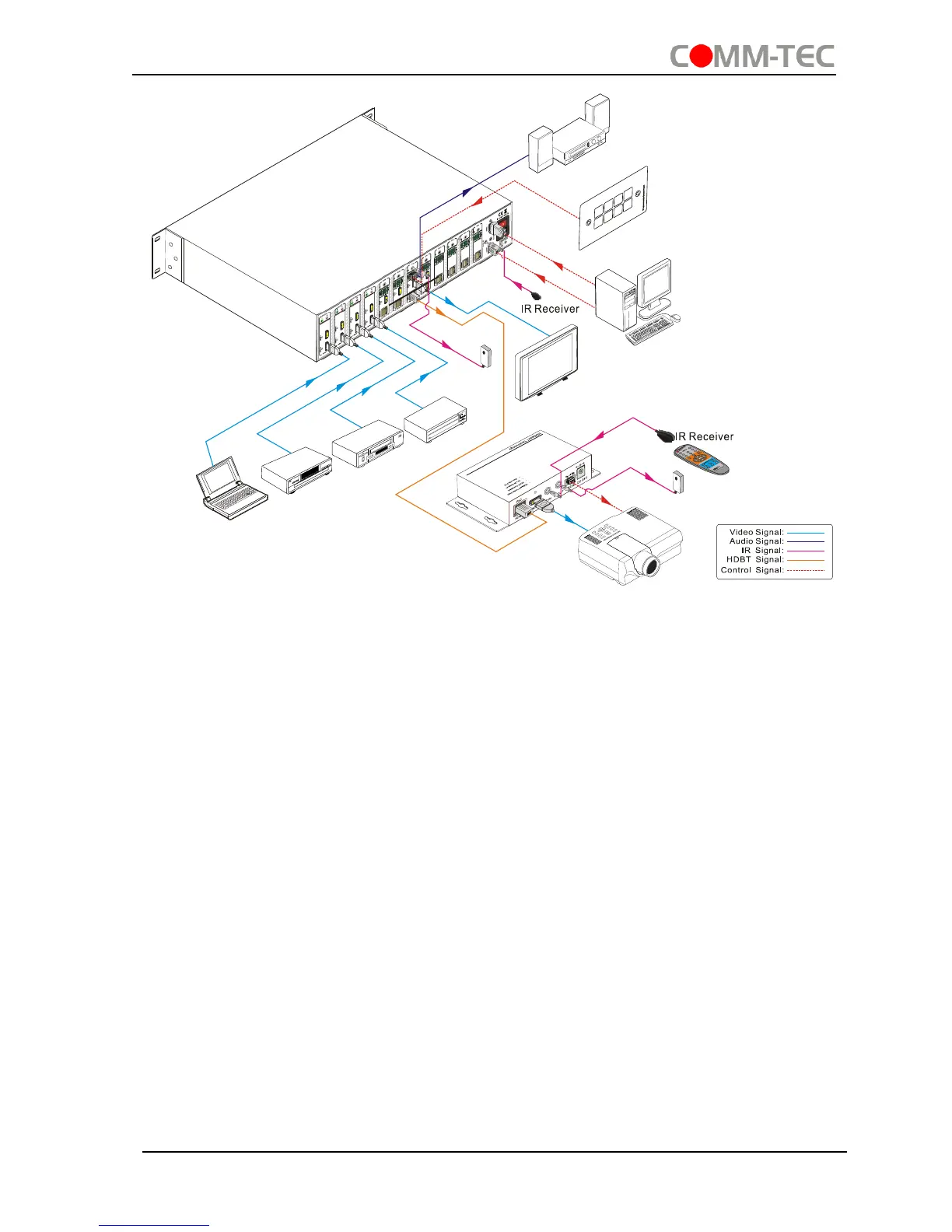

1) Connect HDMI sources (e.g. DVD) to HDMI inputs of the 4K HDBaseT 8x8 Matrix
Switcher with HDMI cables.
2) Connect HDBaseT receivers to the HDBaseT Output ports with straight-through
CAT5e/6.
3) Connect HDMI displays (e.g. HDTV) to HDMI outputs of the 4K HDBaseT 8x8
Matrix Switcher or the receivers with HDMI cables
4) Connect speakers/earphones to AUDIO output ports
5) Connect control device (e.g. a PC) to the RS232 port of either 4K HDBaseT 8x8
Matrix Switcher or far-end receivers. RS232 signal can be transmitted bi-
directionally between 4K HDBaseT 8x8 Matrix Switcher and far-end receivers.
6) 4K HDBaseT 8x8 Matrix Switcher can collect IR signal sent by the included IR
remote via its built-in IR sensor or through external IR receiver connected to the IR
IN/ IR EYE/ IR ALL IN port. The IR signal can be transmitted bi-directionally
between 4K HDBaseT 8x8 Matrix Switcher and far-end receivers.
7) Insert AC 100V~240V power outlet to power port of 4K HDBaseT 8x8 Matrix
Switcher and switch on the power trigger.
Note: IR receivers connected to IR IN should be with carrier. If not, send
