Comm-Tec MTX88UH2 - Rear Panel

4K 8x8 HDBaseT Matrix Switcher
Comm-Tec S.r.l. 7 www.comm-tec.it

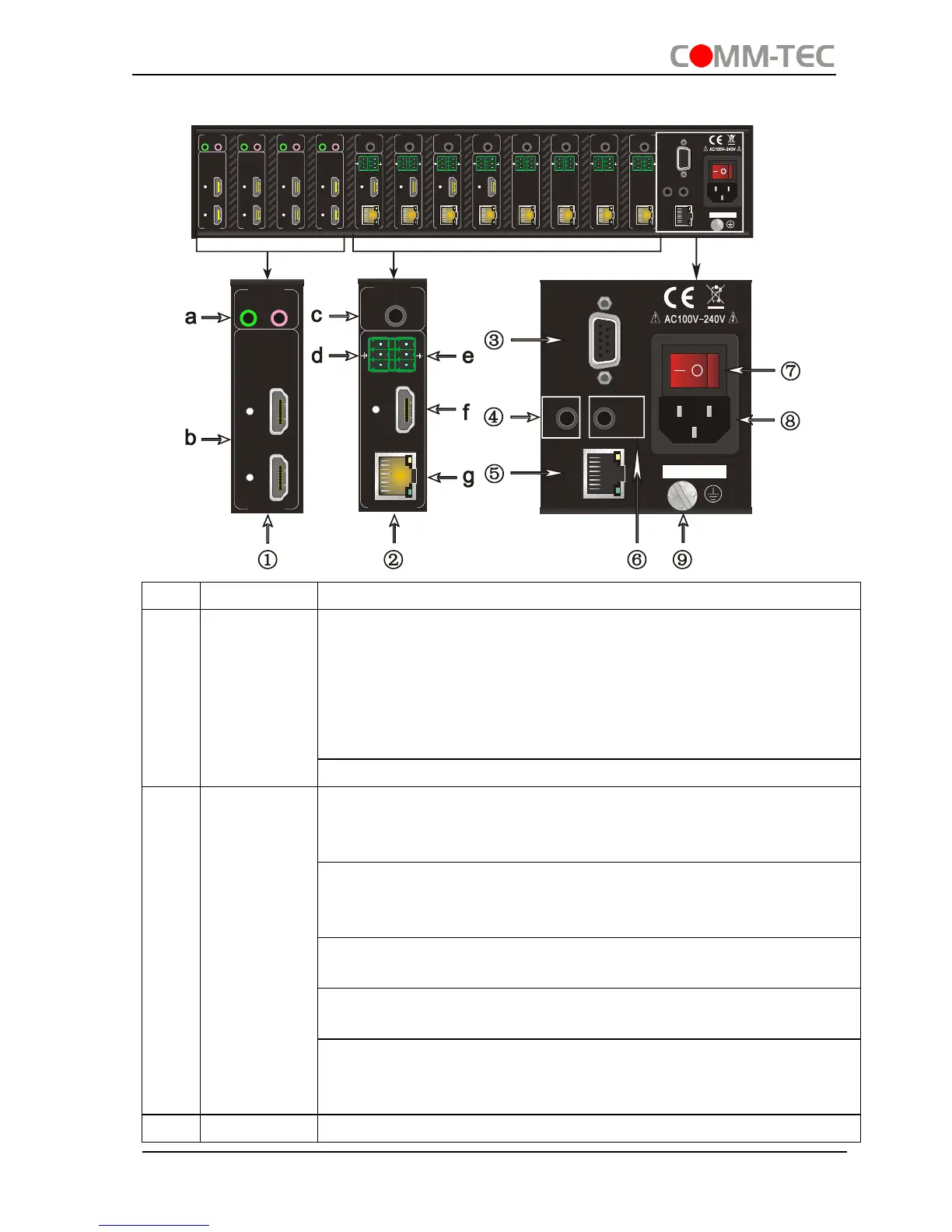

2.2 Rear Panel
No.
Name
Description
①
INPUTS
a. IR OUT: connect with IR emitters, making up an IR matrix
with the IR IN sockets on the far-end receivers. IR signal
can be switched synchronously with the AV signal, or
separately.
In default setting, the 8 IR OUT corresponds with the 8 IR
IN thoroughly, i.e. IR OUT1→IR IN1,…IR OUT8→IR IN8.
b. HDMI: HDMI input ports, connect with HDMI sources.
②
OUTPUTS
c. IR IN: Connect with IR receiver (with carrier), work with
IR OUT on the corresponding far-end receiver, cannot be
switched separately.
d. RS232: serial control ports, support bi-directional control
with RS232 port on corresponding HDBT receiver,
cannot be switched separately.
e. AUDIO: stereo audio output ports, output de-embedded
HDMI audio
f. HDMI: Local HDMI output ports, synchronously switched
with HDBaseT Output 1~4
g. HDBaseT: work with HDBaseT receivers to extend
signals and energize far-end HDBaseT receiver on a
single CAT5e/6 cable.
③
RS232
Serial control port, connect with control device such as a PC.
