Comm-Tec MTX88UH2 - RS232 Communication Commands

4K 8x8 HDBaseT Matrix Switcher
Comm-Tec S.r.l. 19 www.comm-tec.it
Please set the parameters of COM number, baud rate, data bit, stop bit and the parity
bit correctly, only then will you be able to send command in Command Sending Area.
4.3.4 RS232 Communication Commands
Note:
1) Case-sensitive.
2) Please disconnect all the twisted pairs before sending command EDIDUpgrade[X].
3) In the commands, “[”and “]” are symbols for easy reading and do not need to be
typed in actual operation.
4) End the commands with the ending symbols “.” and “;”.
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Function
Feedback Example
System Commands
/*Type;
Inquire the models information.
UHBT88R2-N
/%Lock;
Lock the front panel buttons on the Matrix.
System Locked!

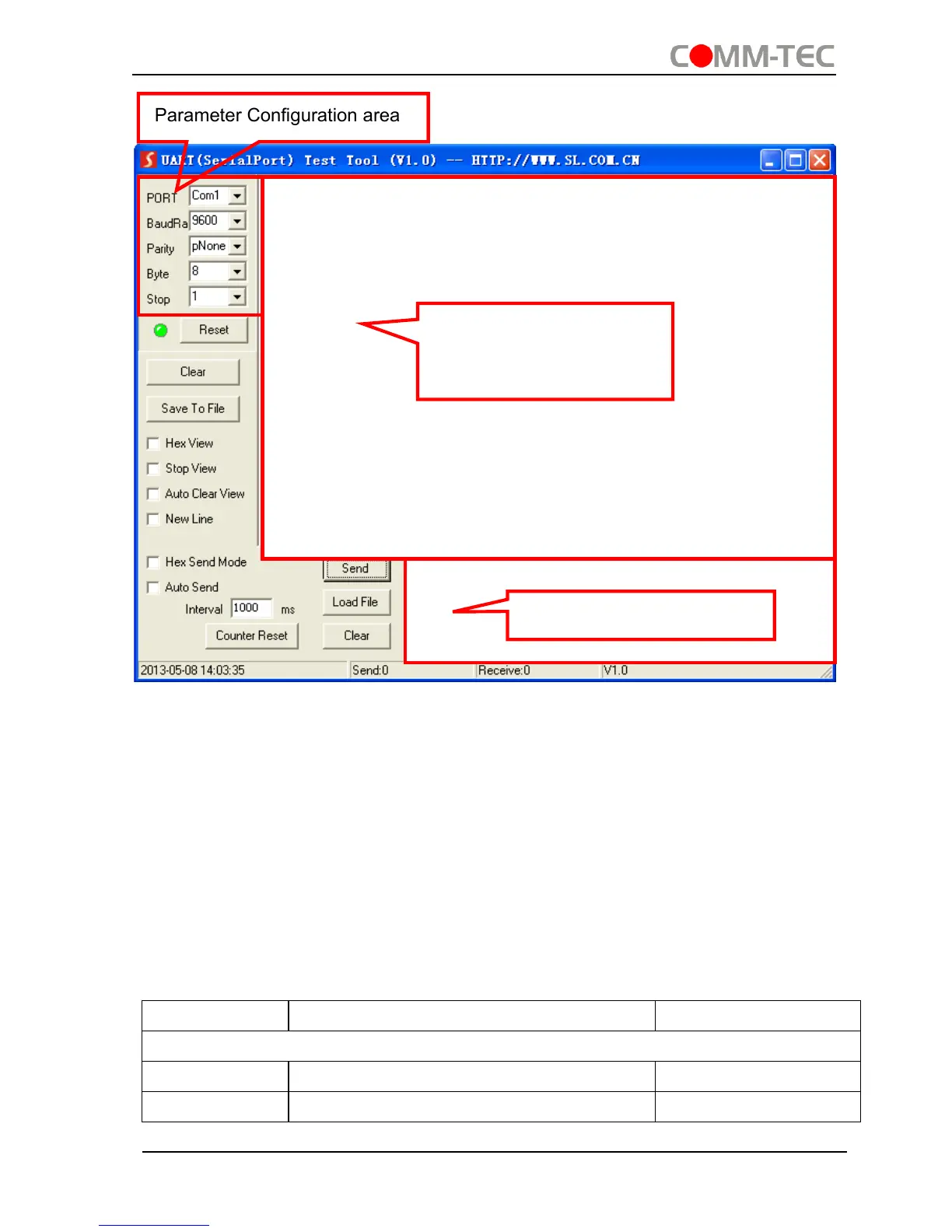

Parameter Configuration area
Monitoring area, indicates
whether the command
sent works.
Command Sending area
Parameter Configuration area
Monitoring area, indicates
whether the command
sent works.
Command Sending area
