4.2 IR Control
By using IR & HDBaseT transmission technology, the 4K HDBaseT 8x8 Matrix Switcher
has some functions as follows:
1) Control far-end output device from local.
2) Control local input/output device remotely.
3) Control the 4K HDBaseT 8x8 Matrix Switcher locally/remotely.

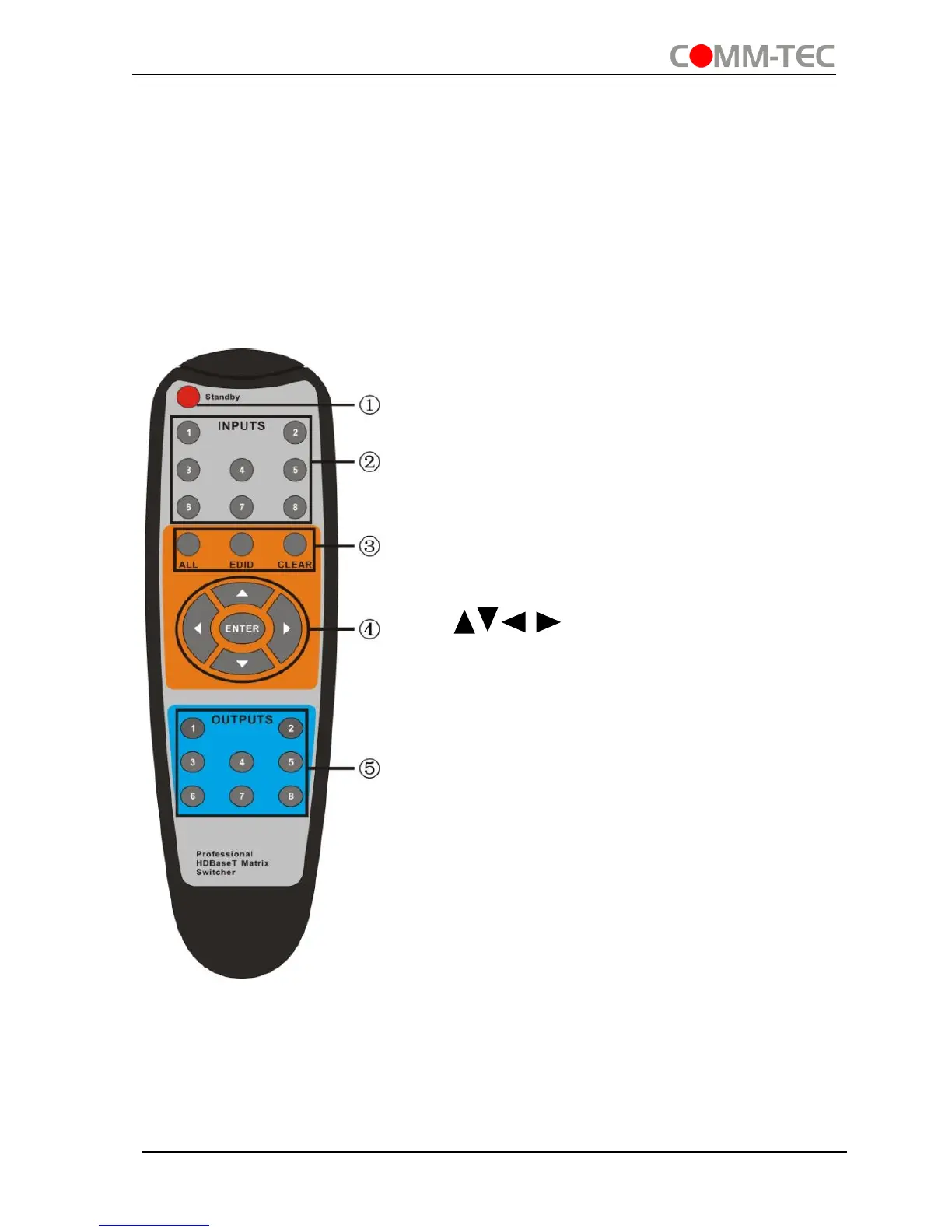

4.2.1 Usage of IR Remote
① Standby button, press it to enter/ exit standby
mode
② Input channels, range from 1~8,
corresponding IR signal switched
synchronously when switching input
channels.
③ Menu buttons, ALL, EDID and CLEAR, same
with the corresponding front panel buttons.
Please refer to 4.1 Front Panel Button
Control for details.
⑤ Output channels, range from 1~8.
Each channel has 1 IR IN, 1 HDBaseT, 1
RS232, and 1 AUDIO outputs, and channel
1~4 have HDMI outputs.
Note: With this IR remote, 4K HDBaseT 8x8 Matrix Switcher can be controlled by the
built-in IR, the extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR
receiver on the far-end receiver.
To Next Page
