4K 8x8 HDBaseT Matrix Switcher
Comm-Tec S.r.l. 31 www.comm-tec.it

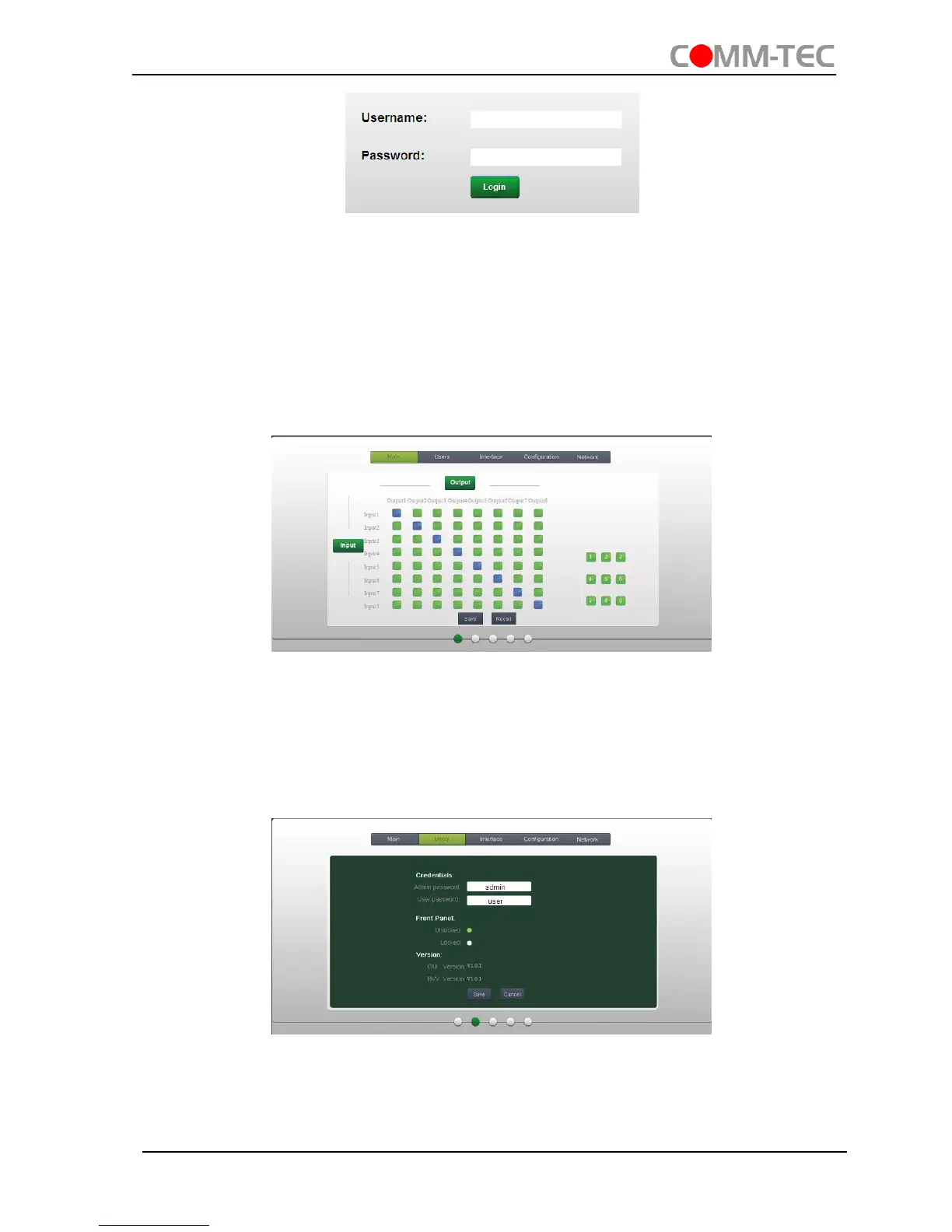

There are 2 selectable accounts to log in. Type the right name and password in relative
column and click Login to enter the main interface.
Name: admin; Password: admin (default setting, changeable via GUI)
Name: user; Password: user (default setting, changeable via GUI)
Log in as admin can access more configuration interfaces than user.
Main: Interface shown after logging in, provide intuitive I/O connection switching. See
the screenshot below:
The button matrix displays every possible connection between every input and output,
users can carry on the connections by clicking corresponding button.
Buttons 1~9 at the right-bottom corner provides quick saving and recall for overall
connection status.
Users: Display or modify credential settings, front panel lock, and GUI version.
If there is any modification, press Save to restore the settings, or press Cancel to
withdraw.
Interface: Set title bar label, LCD readout, and button labels, press Save to save the
