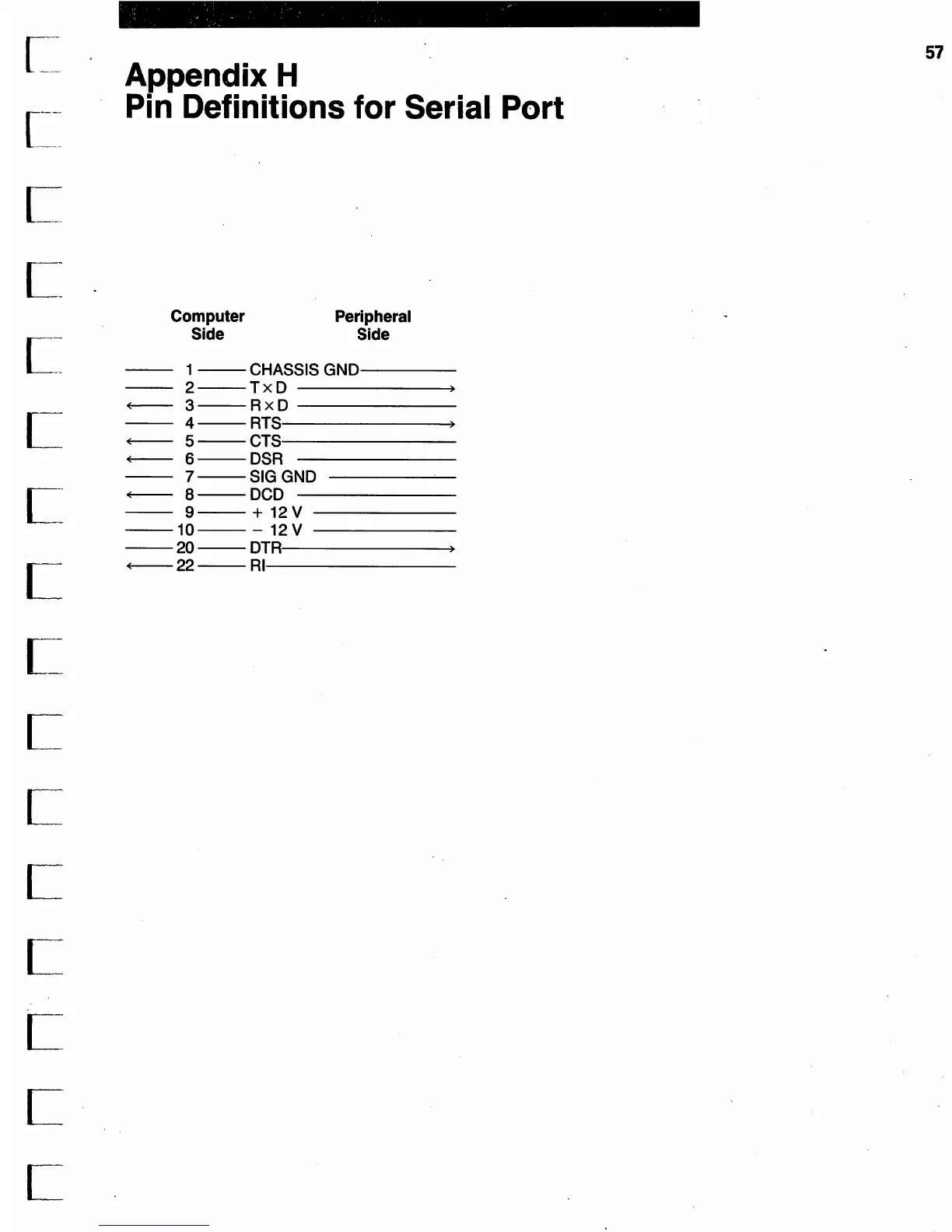

Appendix H

Pin Definitions for Serial Port

Computer

Side

Peripheral

Side

--CHASSIS

GND----

2--TxD

------>

+---

3--

RxD

------

4--

RTS--------+

+---

5--CTS------

+---

6--DSR

7--SIGGND

---~

+---

8--DCD

------

9--+12V

-----

--10---12V

-----

DTR:--------+

+---22--

RI-------
