CommScope CAP MX Series User Manual

Two Angled
Mounng Brackets
Four M8x16 flange-head screws
Six M6-1.0 x 14mm screws
Four
M6-1.0 x 14mm
screws
Power Supply/
Hybrid Fiber Mounng Kit
AC/DC Power Supply Unit
with Juncon Box
Local Power
Jumper Cable
M0201ANC_uc CommScope Era
™
Fiber Low Power Carrier Access Point Installation Guide
© June 2019 CommScope, Inc. Page 41
Mount the Fiber CAP L

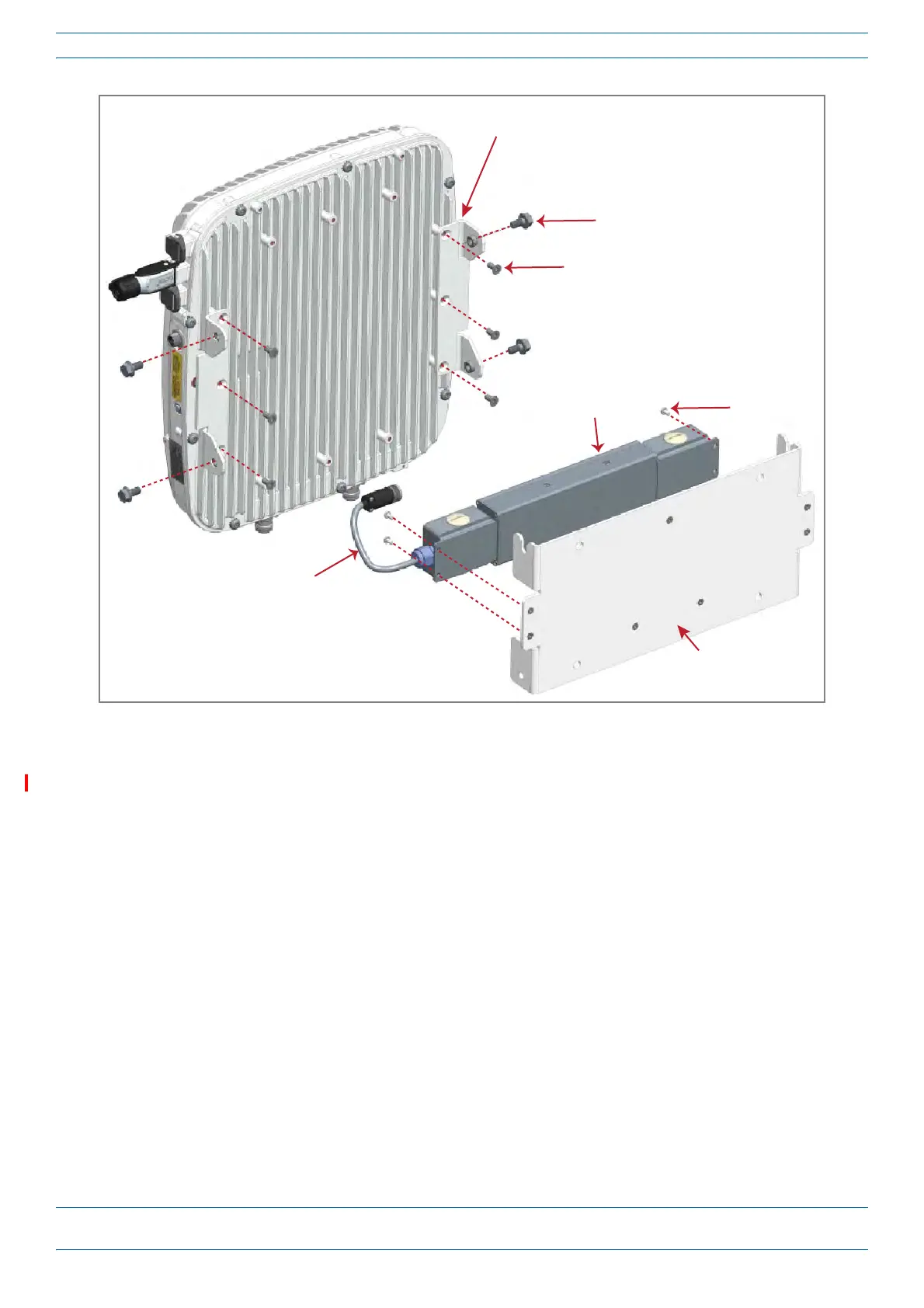

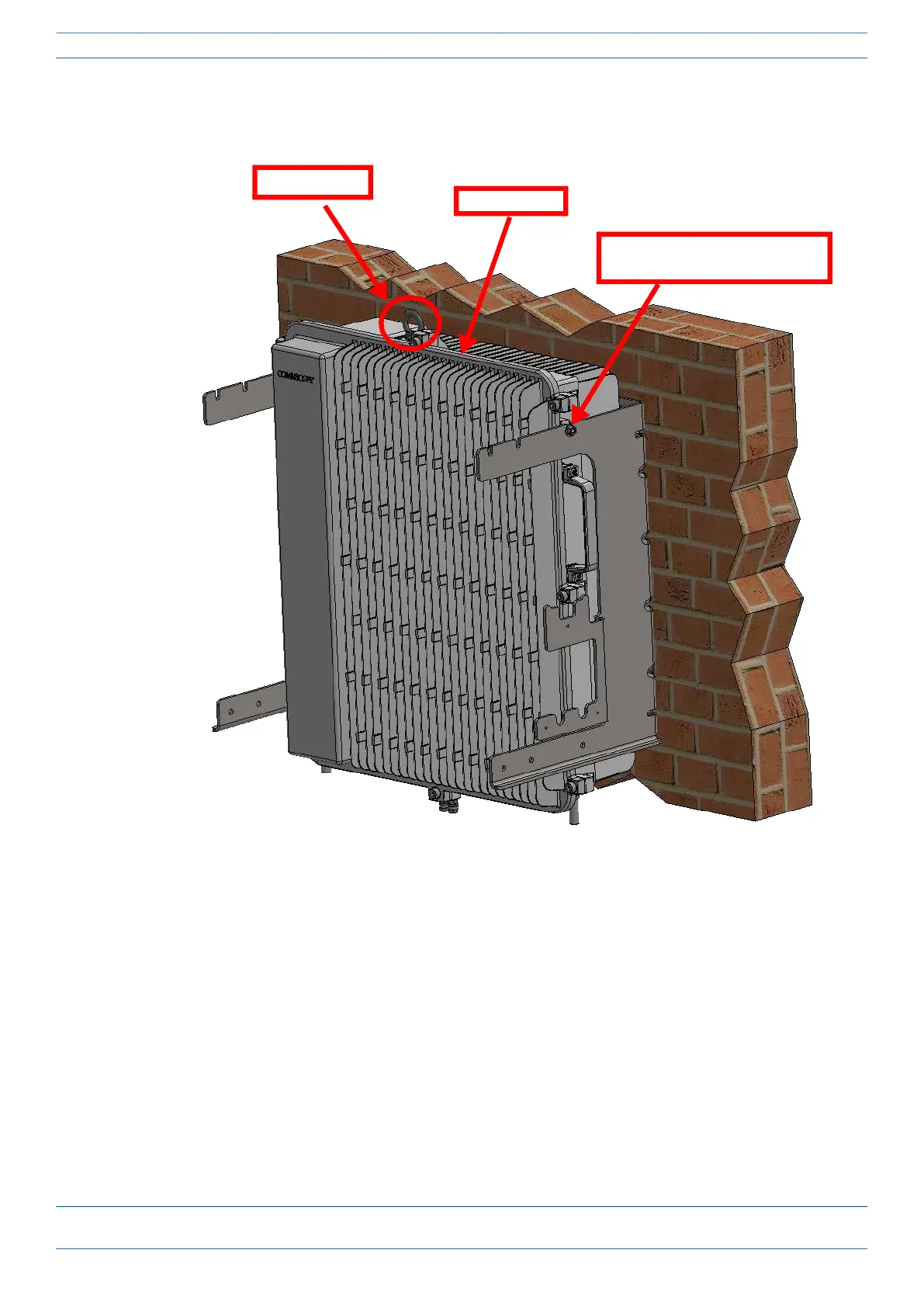

Figure 17. CAP L (No Fan Kit) with AC/DC Power Supply Kit (PN 7775087-xx)
and Power Supply/Hybrid Fiber Mounting Kit (7774354-xx)
The Power Supply/Hybrid Fiber Mounting Kit is not included with th
e CAP L and must be ordered separately.
