123
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

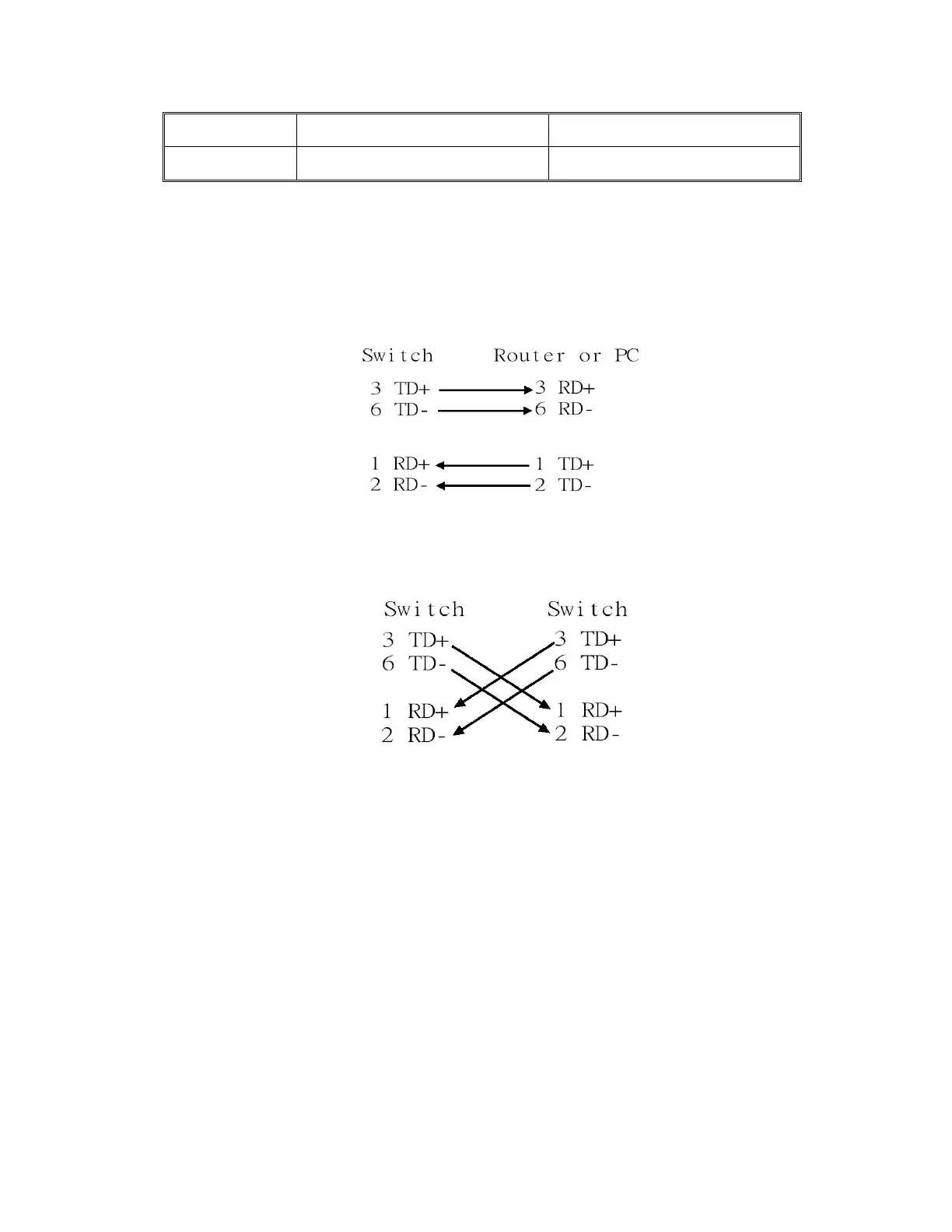

 10/100Base-TX Cable Schematic
The following two figures show the 10/100Base-TX cable schematic.
Straight-through cable schematic
Cross over cable schematic
 10/100/1000Base-TX Pin outs
The following figure shows the 10/100/1000 Ethernet RJ45 pin outs.
