Chapter 2 Hardware Description
In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling
information, and wiring installation.
2.1 Physical Dimension
8 10/100TX w/ X-Ring Managed Industrial Switch dimension (W x D x H) is 72mm x
105mm x 152mm
2.2 Front Panel

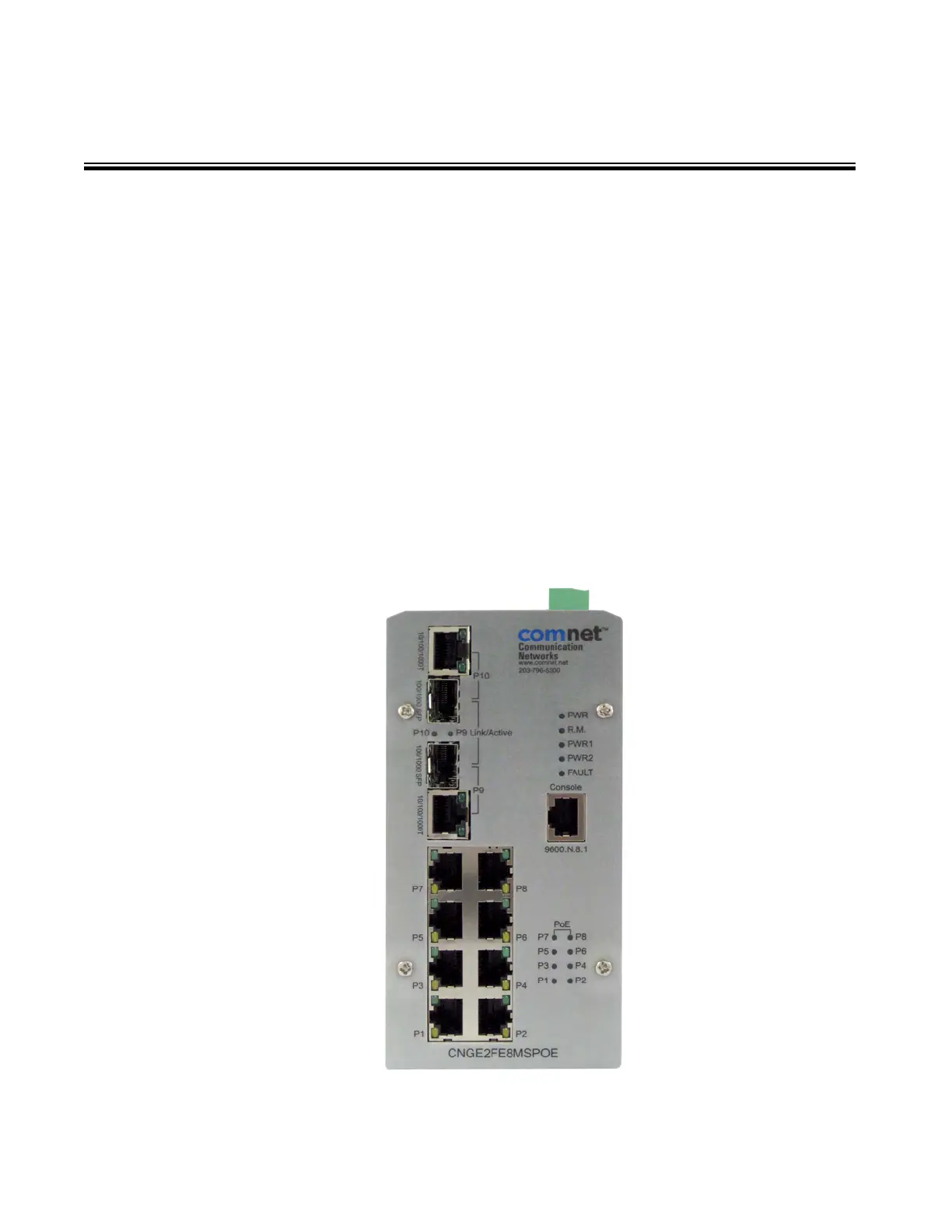

The Front Panel of the 8 10/100TX w/ X-Ring Managed Industrial Switch is shown as below:
Front Panel of the industrial switch
