4.1 X-Ring Application
The industrial switch supports the X-Ring protocol that can help the network system to
recovery from network connection failure within 20ms or less, and make the network system
more reliable. The X-Ring algorithm is similar to spanning tree protocol (STP) algorithm but

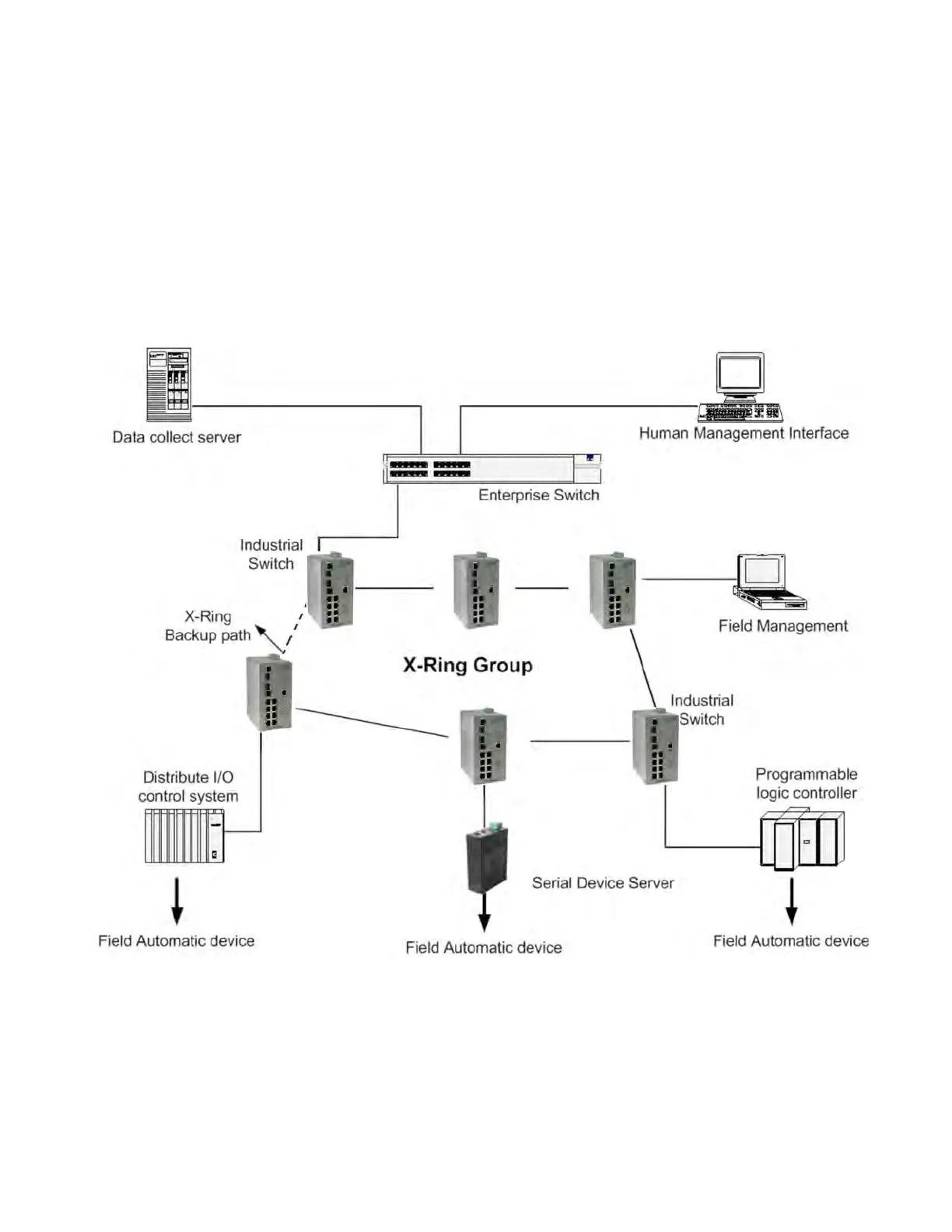

its recovery time is faster than STP. The following figure is a sample X-Ring application.
