4.2 Coupling Ring Application
In the network, it may have more than one X-Ring group. By using the coupling ring function,
it can connect each X-Ring for the redundant backup. It can ensure the transmissions

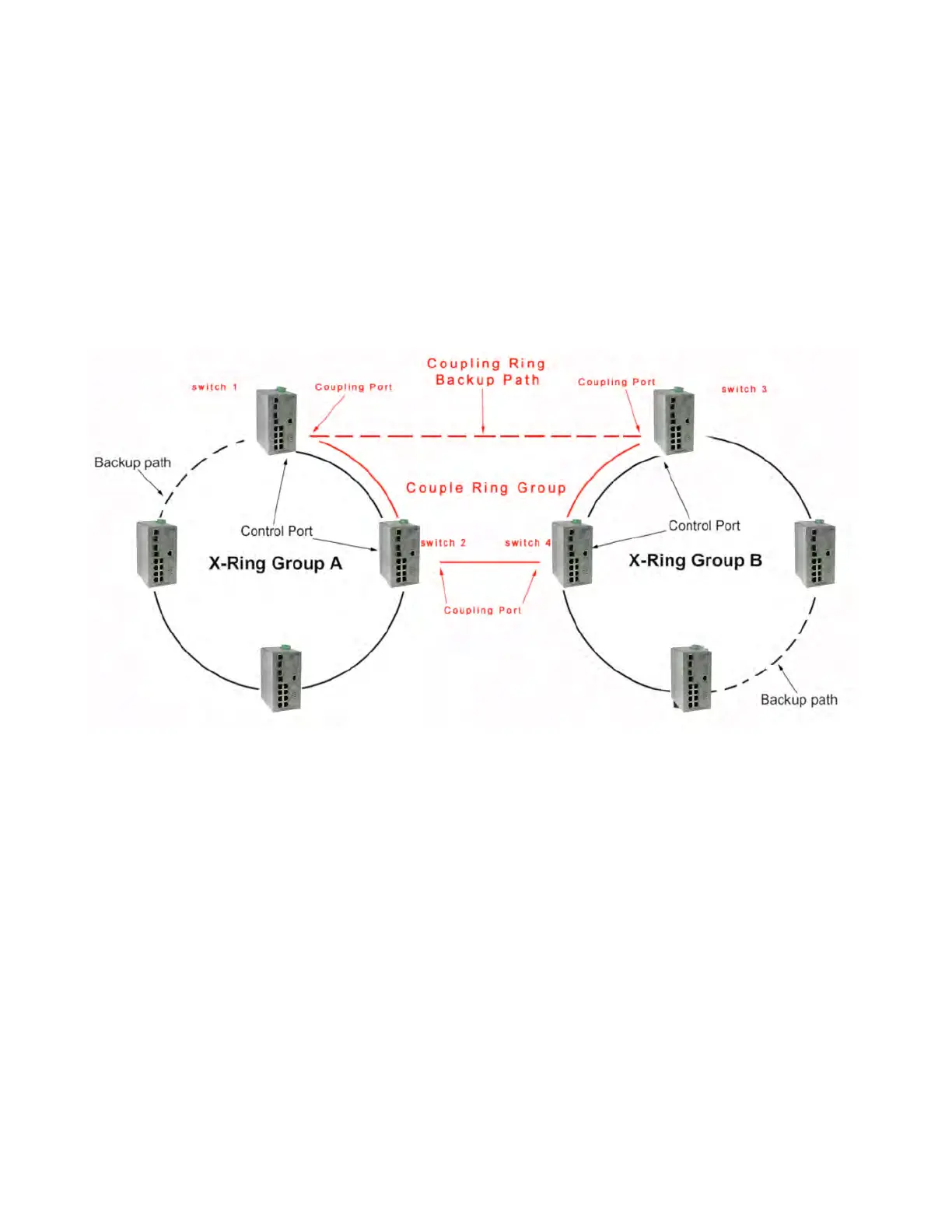

between two ring groups not to fail. The following figure is a sample of coupling ring
application.
