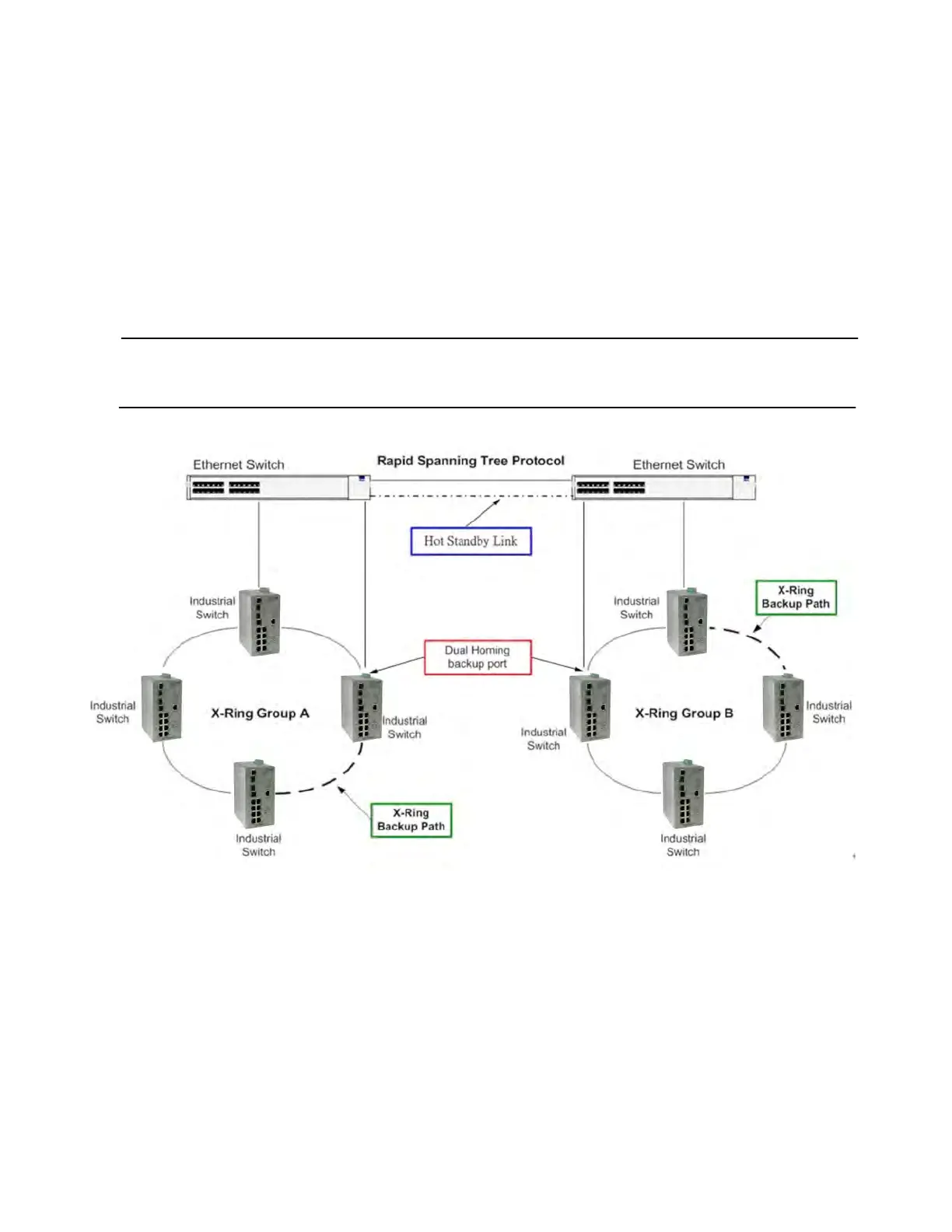

4.3 Dual Homing Application
Dual Homing function is to prevent the connection lose from between X-Ring group and
upper level/core switch. Assign two ports to be the Dual Homing port that is backup port in
the X-Ring group. The Dual Homing function only works when the X-Ring function is active.
Each X-Ring group only has one Dual Homing port.
[NOTE] In Dual Homing application architecture, the upper level switches need to enable
the Rapid Spanning Tree protocol.
