65
Select the ports to join the trunk group. The system allows a maximum of four ports
to be aggregated in a trunk group. Click and the ports focused in the
right side will be shifted to the left side. To remove unwanted ports, select the ports
and click .
When LACP enabled, you can configure LACP Active/Passive status for each port
on the State Activity tab.
Click .
Use to delete Trunk Group. Select the Group ID and click .

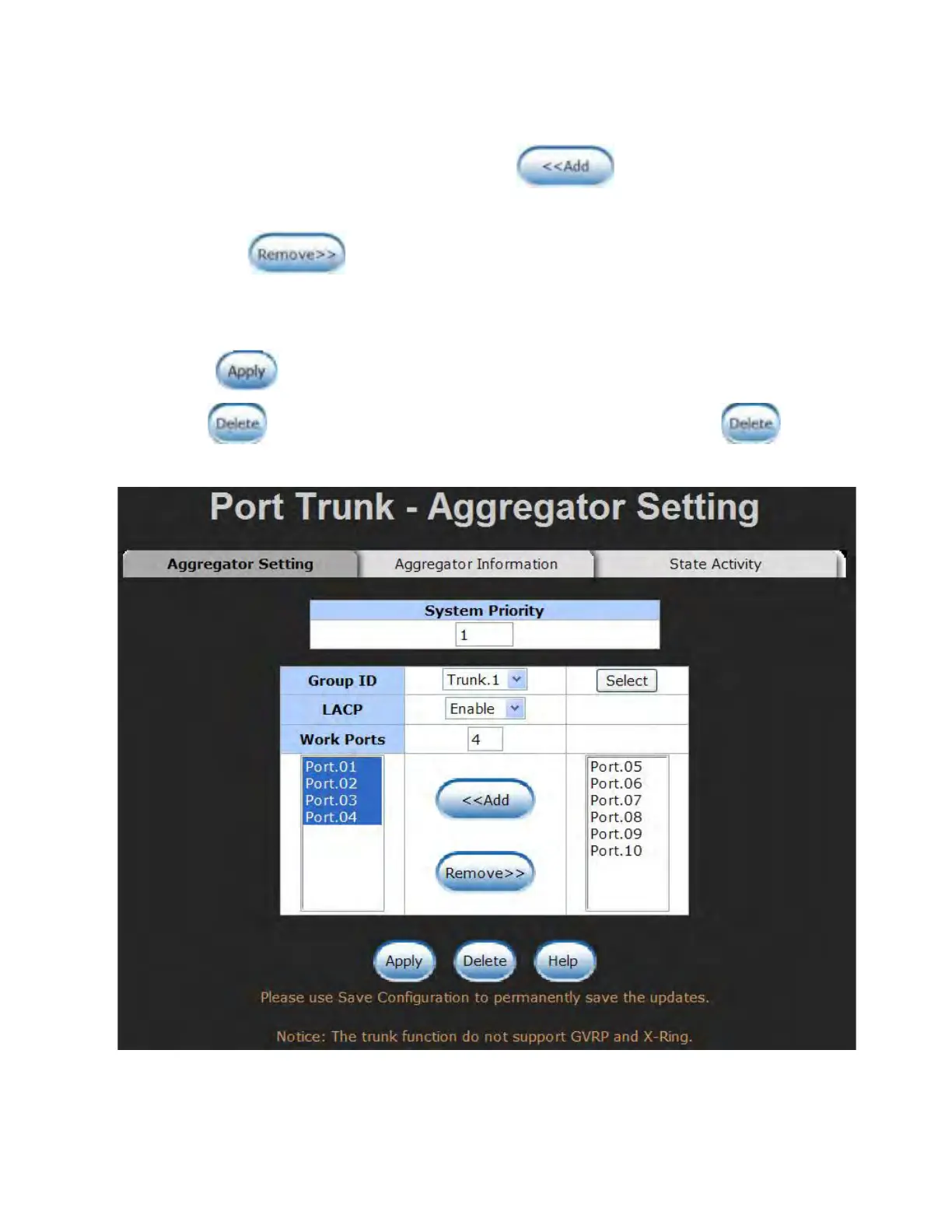

Port Trunk—Aggregator Setting interface (four ports are added to the left field with LACP enabled)
