68
LACP enabled
Having set up the aggregator setting with LACP enabled, you will see the trunking group
information between two switches on the tab of Aggregator Information.

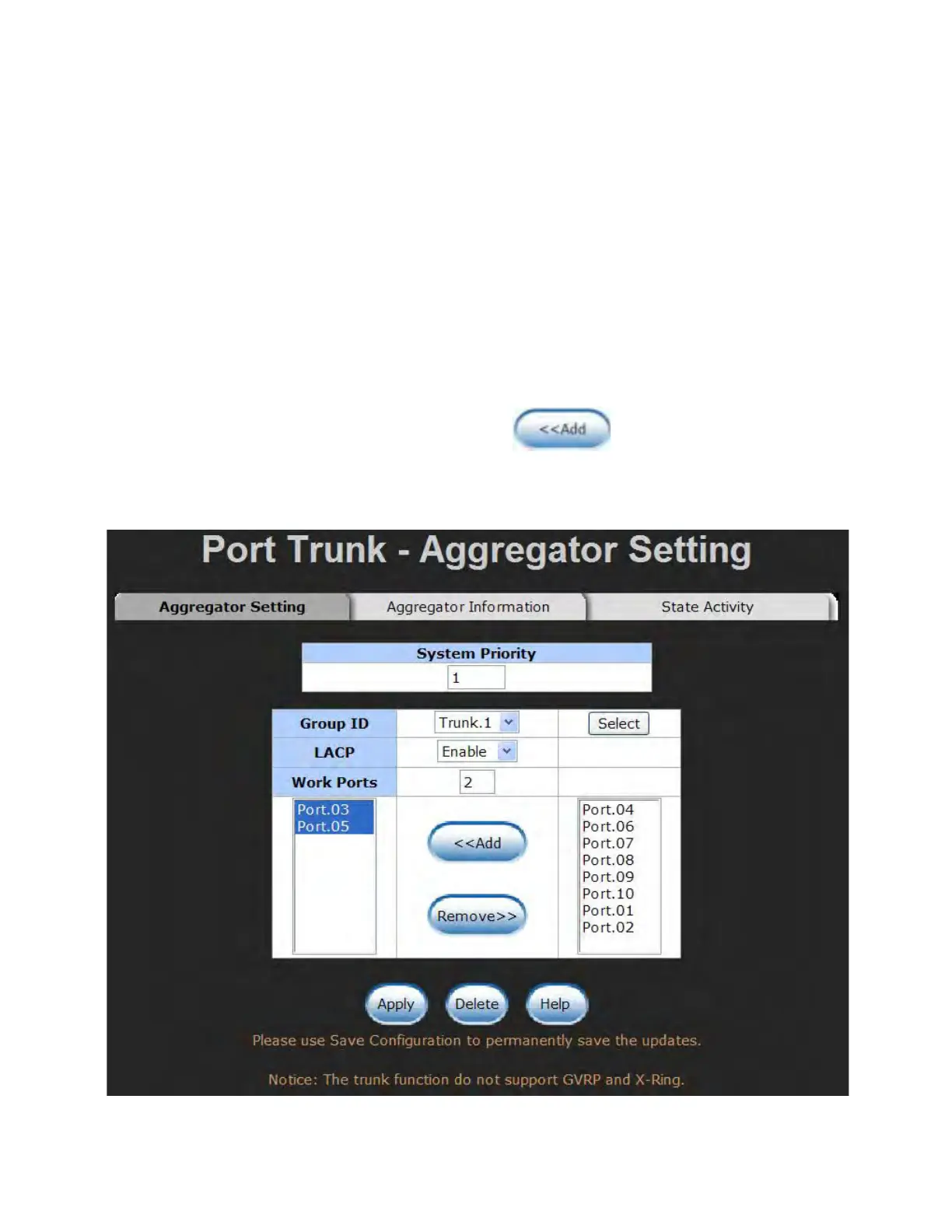

Switch 1 configuration
1. Set System Priority of the trunk group. The default is 1.
2. Select a trunk group ID by pull down the drop-down menu bar.
3. Enable LACP.
4. Include the member ports by clicking the button after selecting the port
number and the column field of Work Ports changes automatically.
