79
Pull down the selection item and focus on Port Based then press to set the
VLAN Operation Mode in Port Based mode.
Click to add a new VLAN group (The maximum VLAN groups are up to 64).

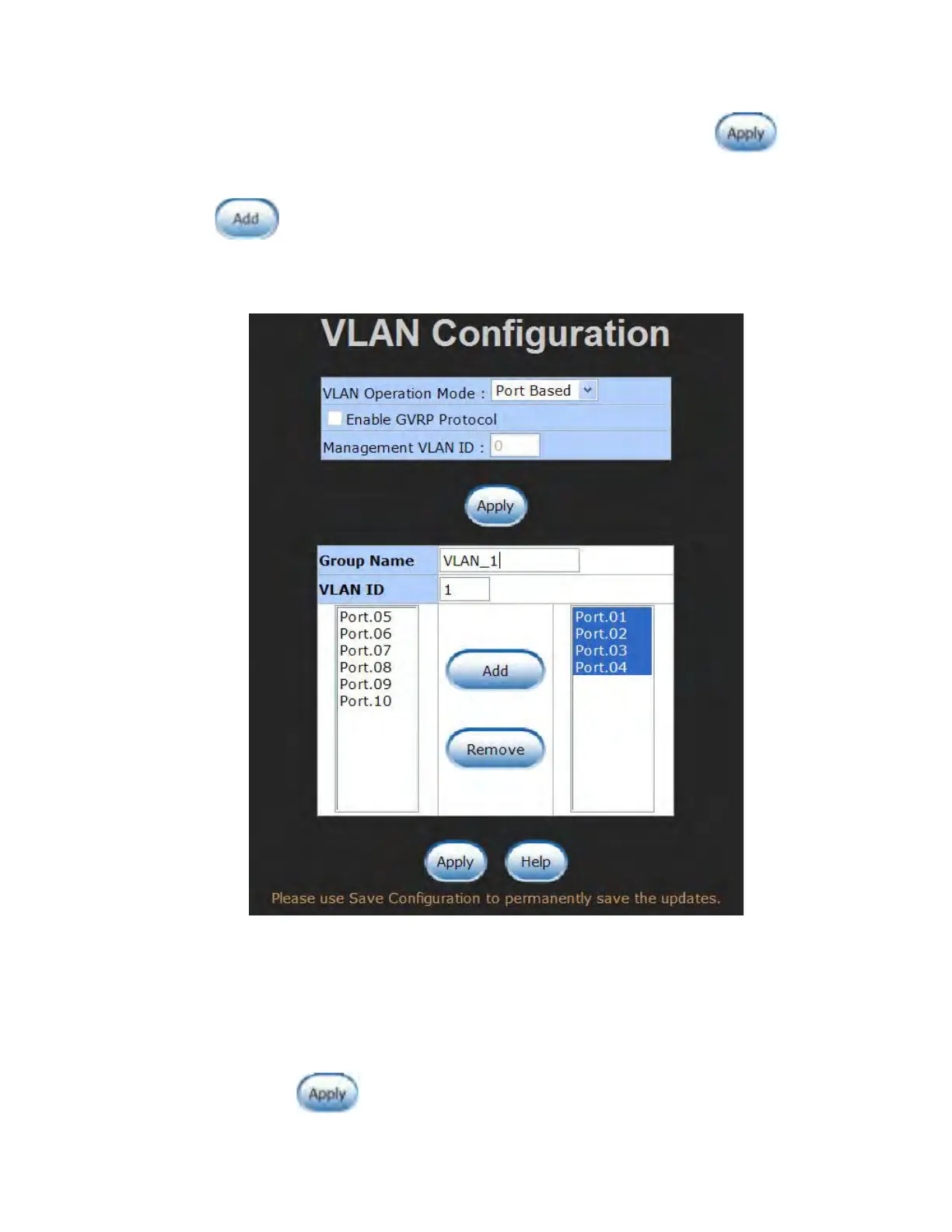

VLAN—Port Based Add interface
Enter the group name and VLAN ID. Add the selected port number into the right field
to group these members to be a VLAN group, or remove any of them listed in the
right field from the VLAN.
And then, click to have the configuration take effect.
