JHT01 Service Manual
5-26

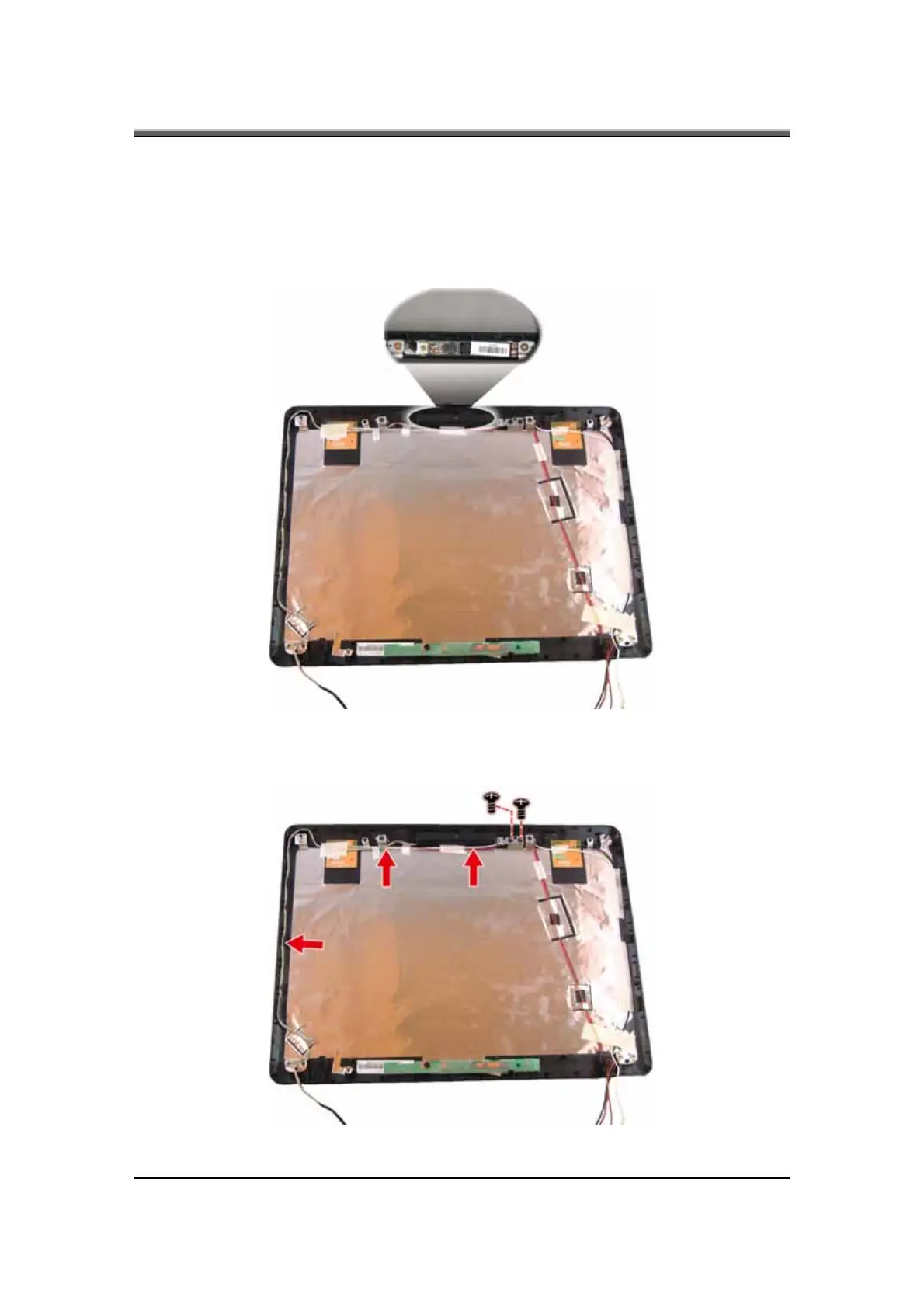

1.14 Removing the Camera Module
To remove the camera module, first remove the keyboard, LCD module, LCD
display, and inverter board. Then follow these steps:
1. Disconnect the CMOS cable from the camera module.
2. Remove two screws securing the camera module to the LCD cover. Remove
the camera module.
To Next Page
