Compal JHT01 - Removing the Logic Upper

JHT01 Service Manual
5-27
1.15 Removing the Logic Upper
To remove the logic upper, first remove the battery pack, HDD, memory module,
ODD, keyboard, power board, wireless LAN, system fan, thermal module, CPU,
Bluetooth module, and LCD module as described in the preceding sections.
Follow the steps below to remove the logic upper.

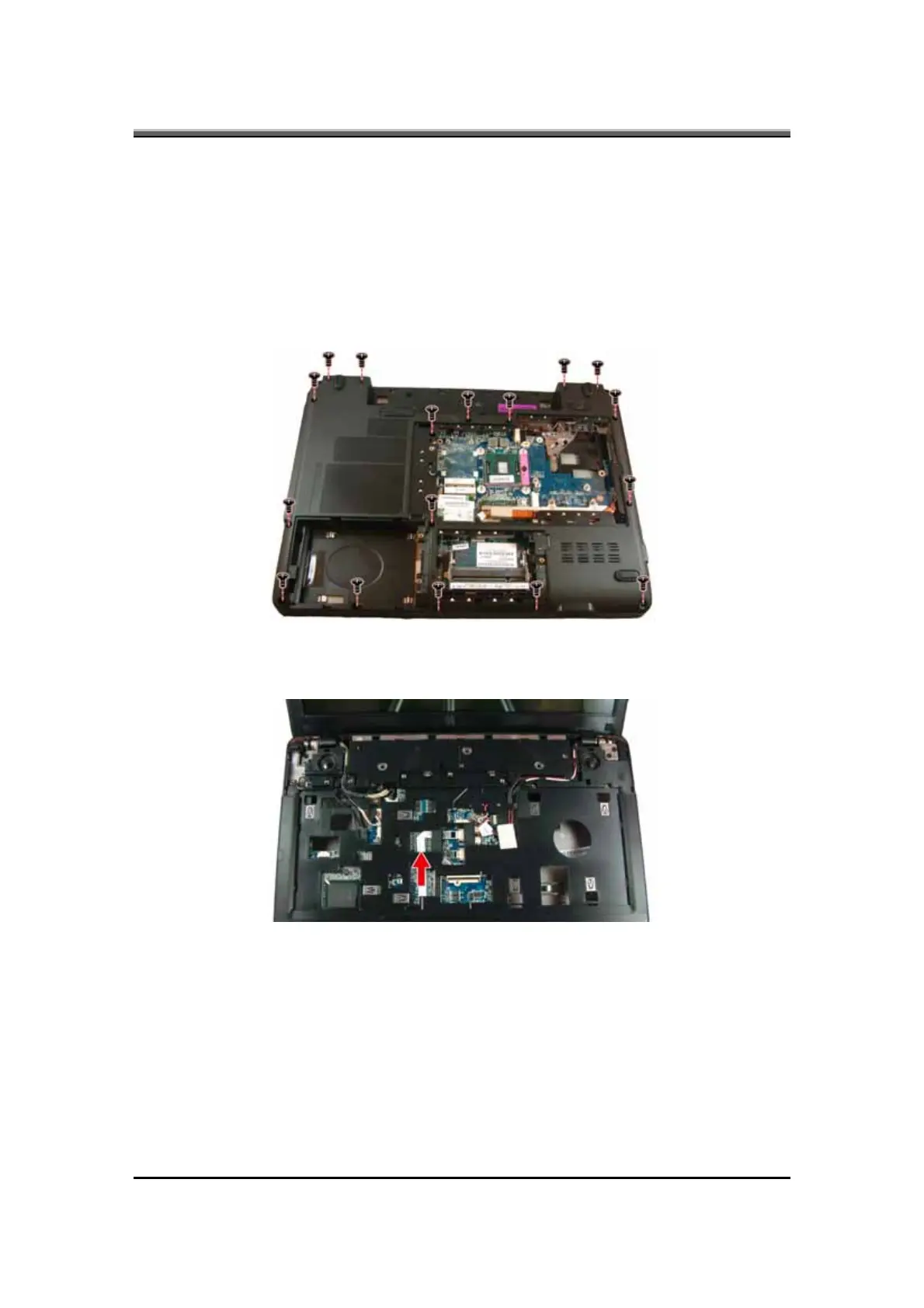

1. Turn the computer upside down and remove the 17 screws from the bottom
side of the notebook.
2. Turn the computer over again and disconnect the power USB board FFC,
touchpad, as shown.
