JHT01 Service Manual
5-30

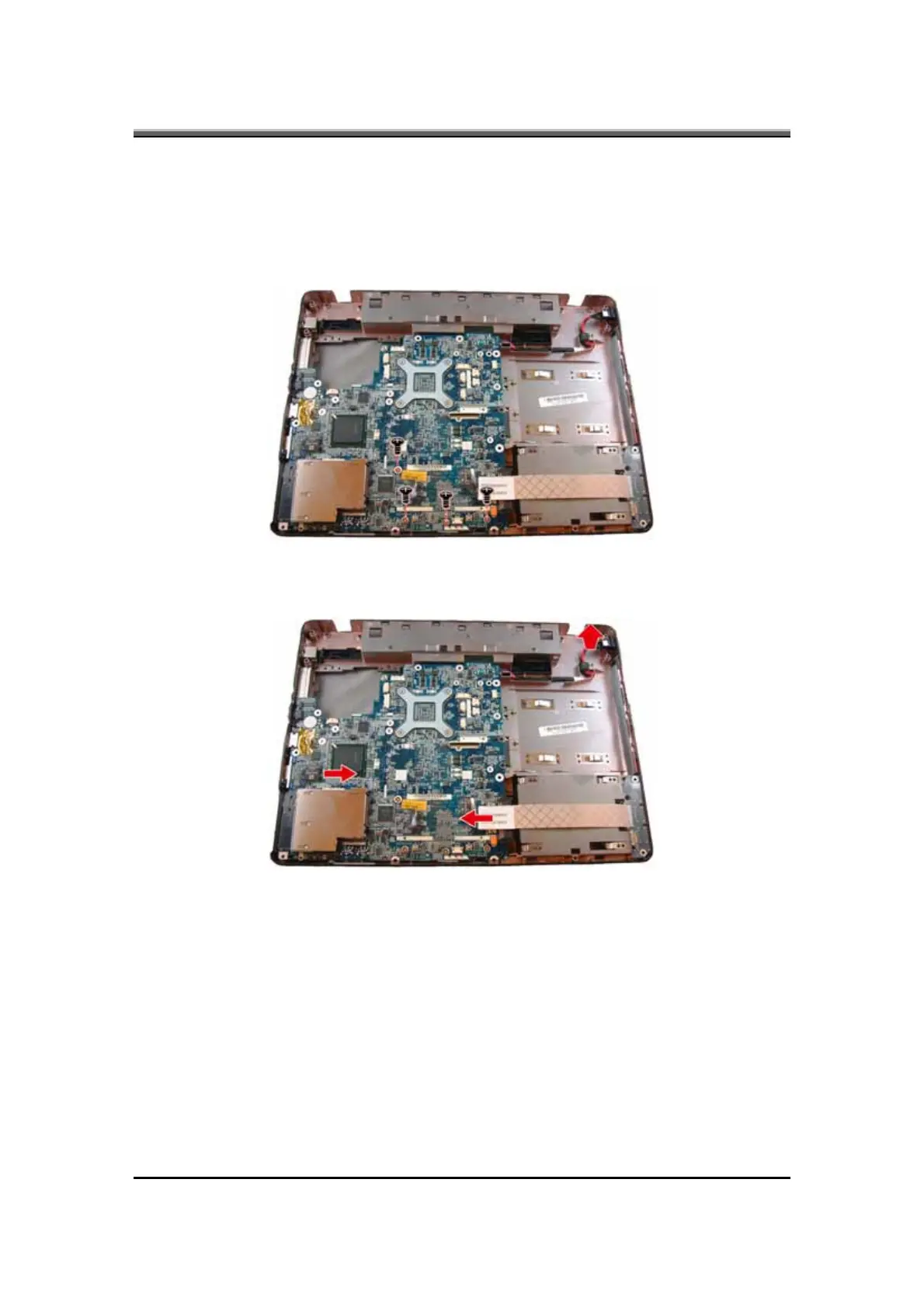

1.17 Removing the Motherboard
To remove the motherboard, first remove the logic upper, and LED board as
described in the preceding sections. Then follow the steps below:
1. Remove four screws securing the motherboard to the logic upper.
2. Disconnect the USB board FFC, speaker and audio board cables. Remove the
DC-IN socket from its housing and lift out the motherboard.
