Compal JHT01 - Motherboard Bottom View Components

JHT01 Service Manual
3-2

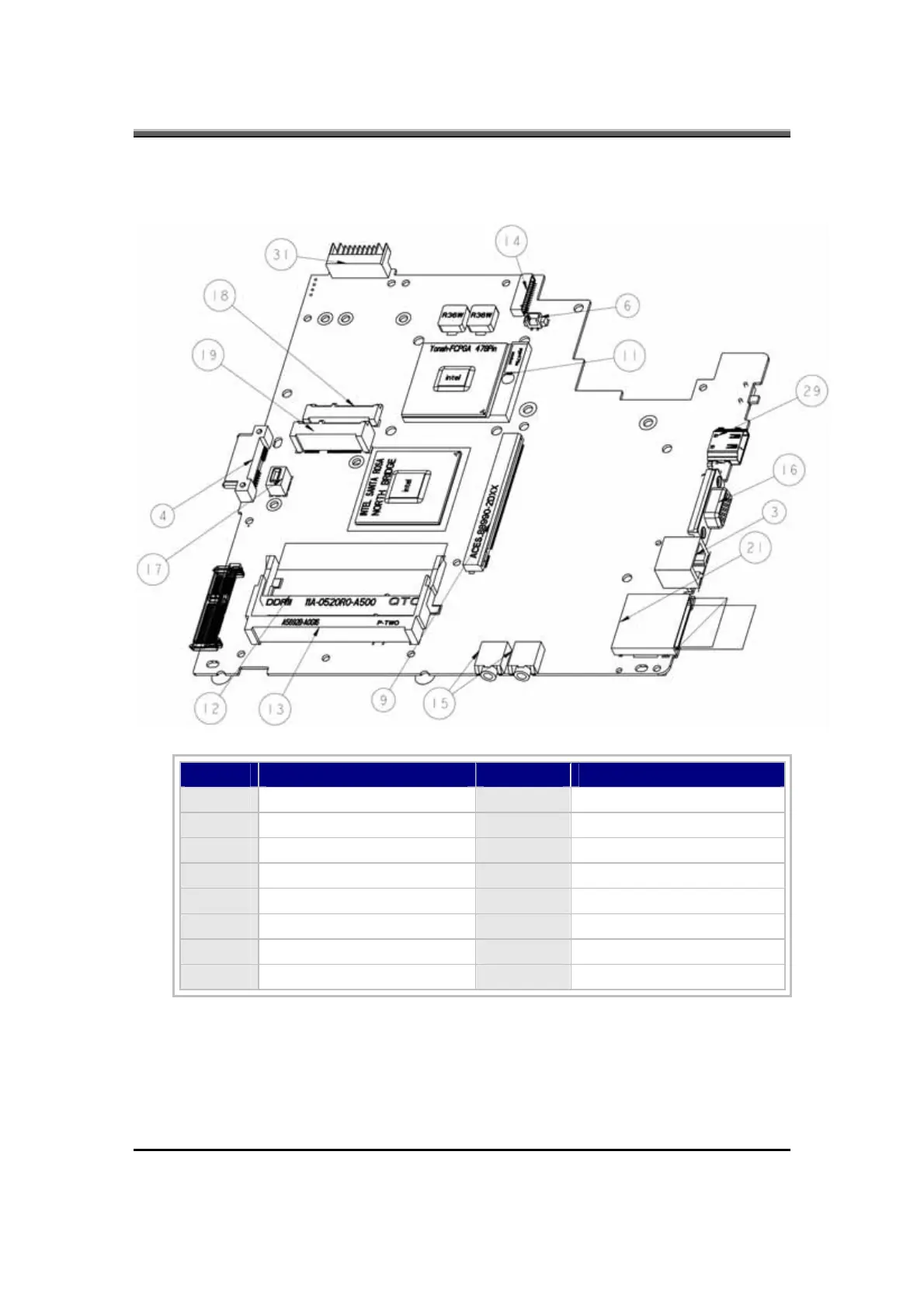

2. Bottom View
Position Description Position Description
3 RJ45 16 D-sub
4
ODD Conn
17
MDC Conn
6 FAN to MLB 18 Mini PCI Express Conn (H=4.0mm)
11 CPU SOCKET 19 Mini PCI Express Conn (H=9.9mm)
12
H5.2 DDRII
21
3 IN 1 Card
13 H9.2 DDRII 29 HDMI Conn
14 LVDS 31 Battery Conn
15
Audio Jack (black)
