Compaq Deskpro 2000 Service & Reference Guide

Compaq Service Reference Guide A-7

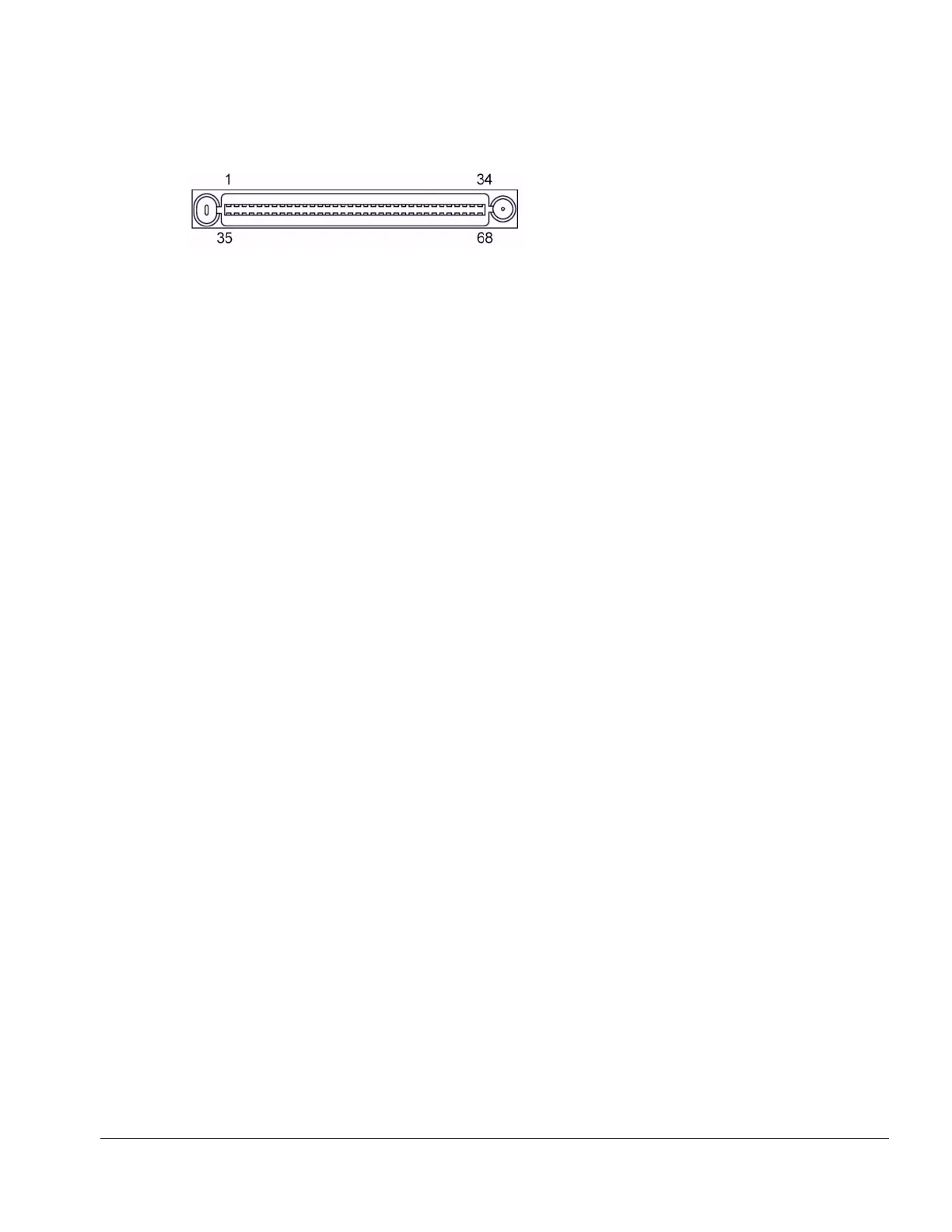

Slimline CD-ROM Adapter
Connector
Pin Signal Pin Signal Pin Signal Pin Signal
1 RESDRV_ 18 D15 35 A0 52 FP05
2 GROUND 19 GROUND 36 A2 53 FP06
3 DO7 20 (KEY) 37 CS1FX 54 FP07
4 D08 21 DRQ 38 CS3FX 55 FP08
5 D06 22 GROUND 39 DASP 56 FP09
6 D09 23 IOW 40 GROUND 57 FP10
7 D05 24 GROUND 41 +5VMLOG 58 FP11
8 D10 25 IOR 42 +5VMOT 59 FP12
9 D04 26 GROUND 43 GROUND 60 FP13
10 D11 27 IOCHRDY 44 AUDIO_L 61 FP14
11 D03 28 CABLE SELECT 45 A_GROUND_R 62 FP15
12 D12 29 DAK 46 A_GROUND_L 63 FP16
13 D02 30 GROUND 47 AUDIO_R 64 FP17
14 D13 31 IRQ 48 FP01 65 FP18
15 D01 32 IO16 49 FP02 66 FP19
16 D14 33 A1 50 FP03 67 FP20
17 D00 34 PDIAG 51 FP04 68 FP21
