A-6 Connector Pin Assignments

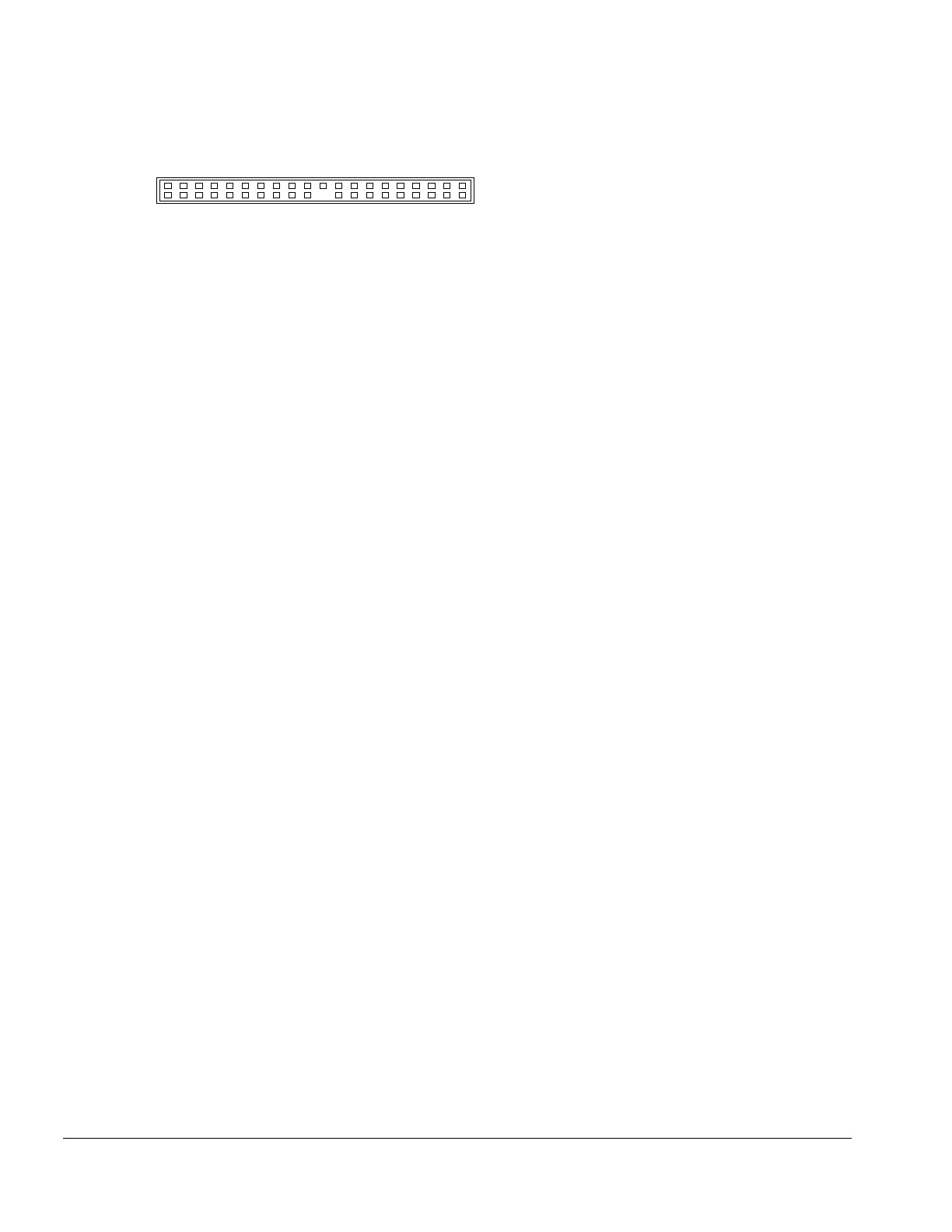

IDE/EIDE Drive Cable

Connector

139

240

Pin Signal Pin Signal Pin Signal

1 RESET 15 DD1 29 DMAK

2 GROUND 16 DD14 30 GROUND

3 DD7 17 DD0 31 INTRQ

4 DD8 18 DD15 32 IOCS16

5 DD6 19 GROUND 33 DA1

6 DD9 20 (KEY) 34 PDIAG (80-pin cable detect)

7 DD5 21 DMARQ 35 DA0

8 DD10 22 GROUND 36 DA2

9 DD4 23 DIOW 37 CS1FX

10 DD11 24 Ground 38 CS3FX

11 DD3 25 DIOR 39 DASP

12 DD12 26 GROUND 40 GROUND

13 DD2 27 IORDY

14 DD13 28 CSEL
