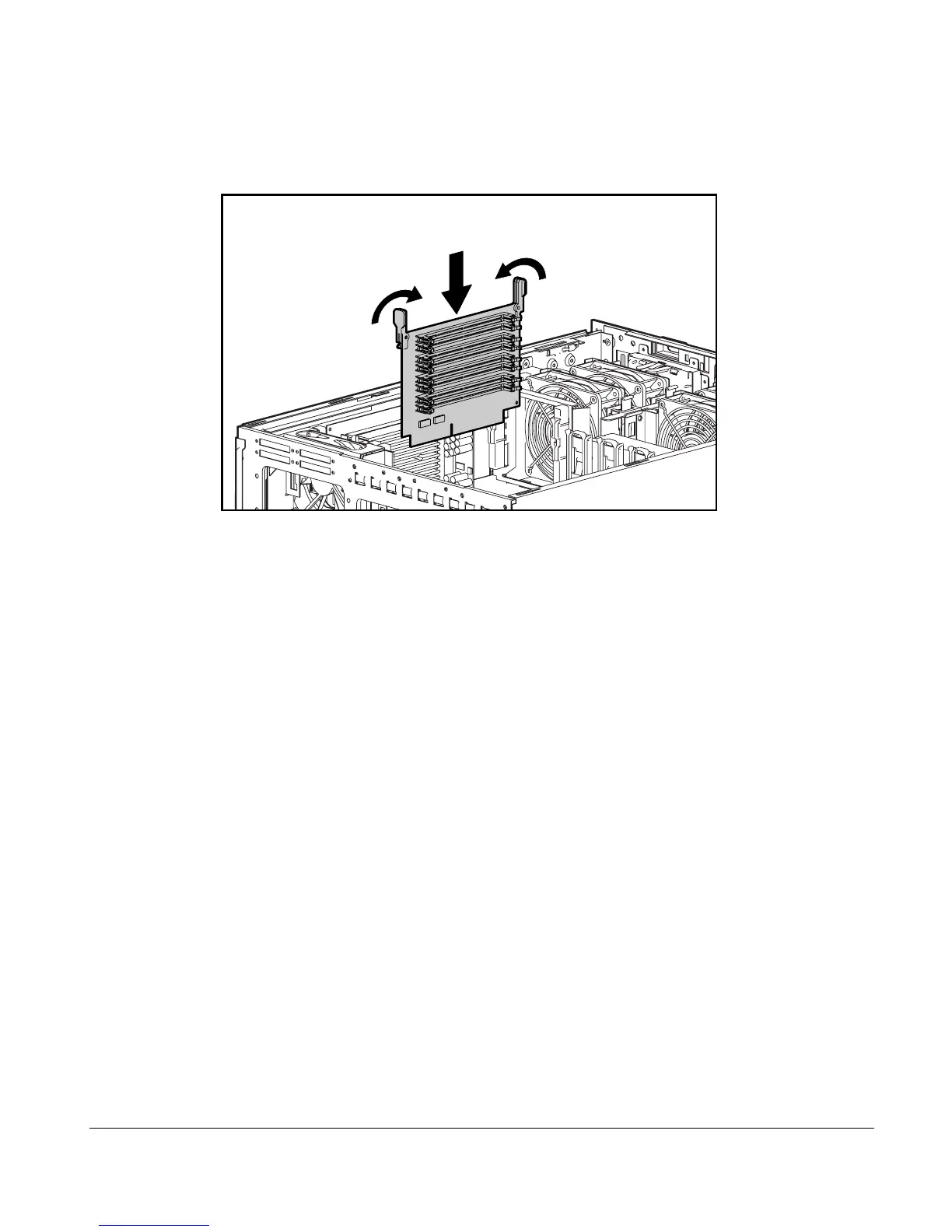

3. Install the memory board as shown in Figure 4-7.
Figure 4-7.
Installing memory board
Memory Banks
In the Compaq ProLiant 3000 server, DIMM sockets are grouped in banks of
two adjacent sockets. When you add memory, you must add a bank at a time.
Memory banks on the system board and on the memory board are identified in
Figure 4-8 and Figure 4-9 respectively. Memory banks are also identified on a
label on the inside of the access panel.
