4-16 Installing Hardware Options
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 2/2/98 12:31 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
b) Insert the Duplex Enable board.

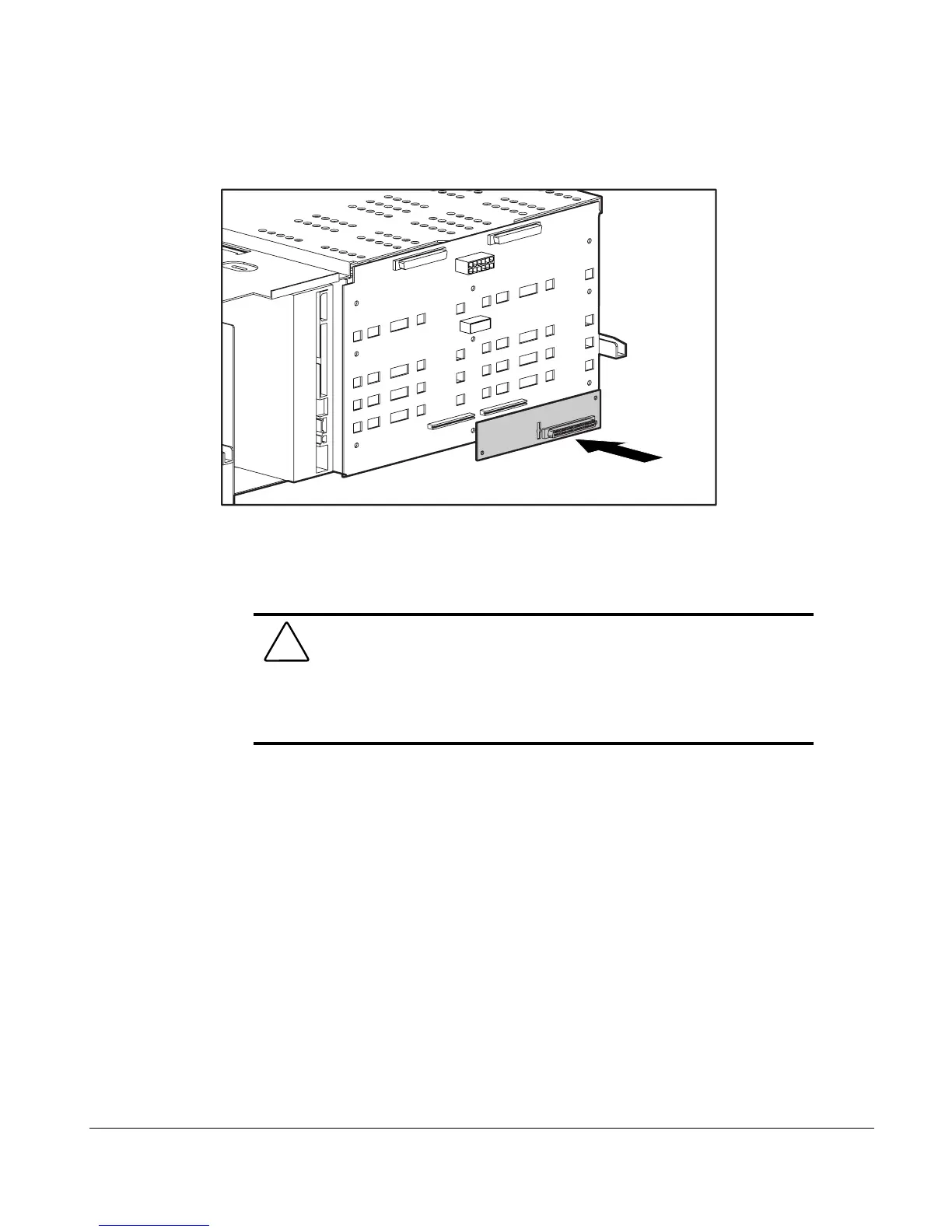

Figure 4-15. Installing the duplex enable board
CAUTION:
The SCSI backplane board must have either a
Duplex Enable board or a Simplex Enable board installed in
order for the SCSI bus to be terminated properly. If neither of
these boards is installed, the service LEDs of all drives will light
as a warning.
8. Replace the drive cage. Do not push it back fully until after you install
cables (Shown in Figure 16).
