5.2.5 Cabling RS422 with Hardware Handshake
XPS/XPS-E End Device
Assignment Assignment
9pol 15pol
Pin Signal Signal Pin
3 T(A) R(B) 11
4 T(B) R(A) 4
2 R(A) T(B) 9
6 R(B) T(A) 2
8 I(A) C(B) 10
1 I(B) C(A) 3
7 C(A) I(B) 12
9 C(B) I(A) 5
5 GND GND 8

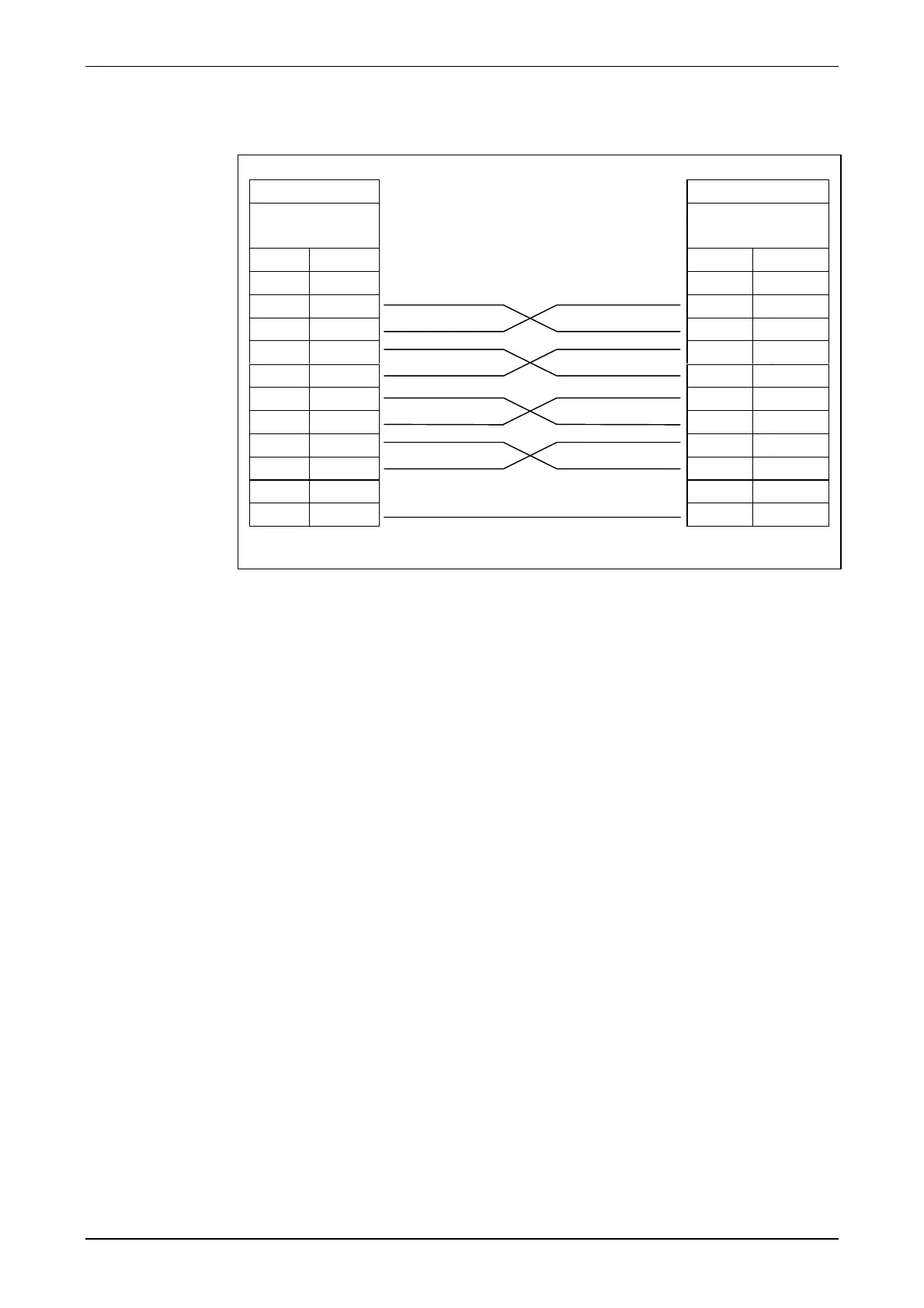

Figure 15: RS422 Cabling with Hardware Handshake
