Connecting Air Hose Adapters
Depending on the hopper you purchased you may need to install an air hose
adapter to connect the hopper to your dryer.

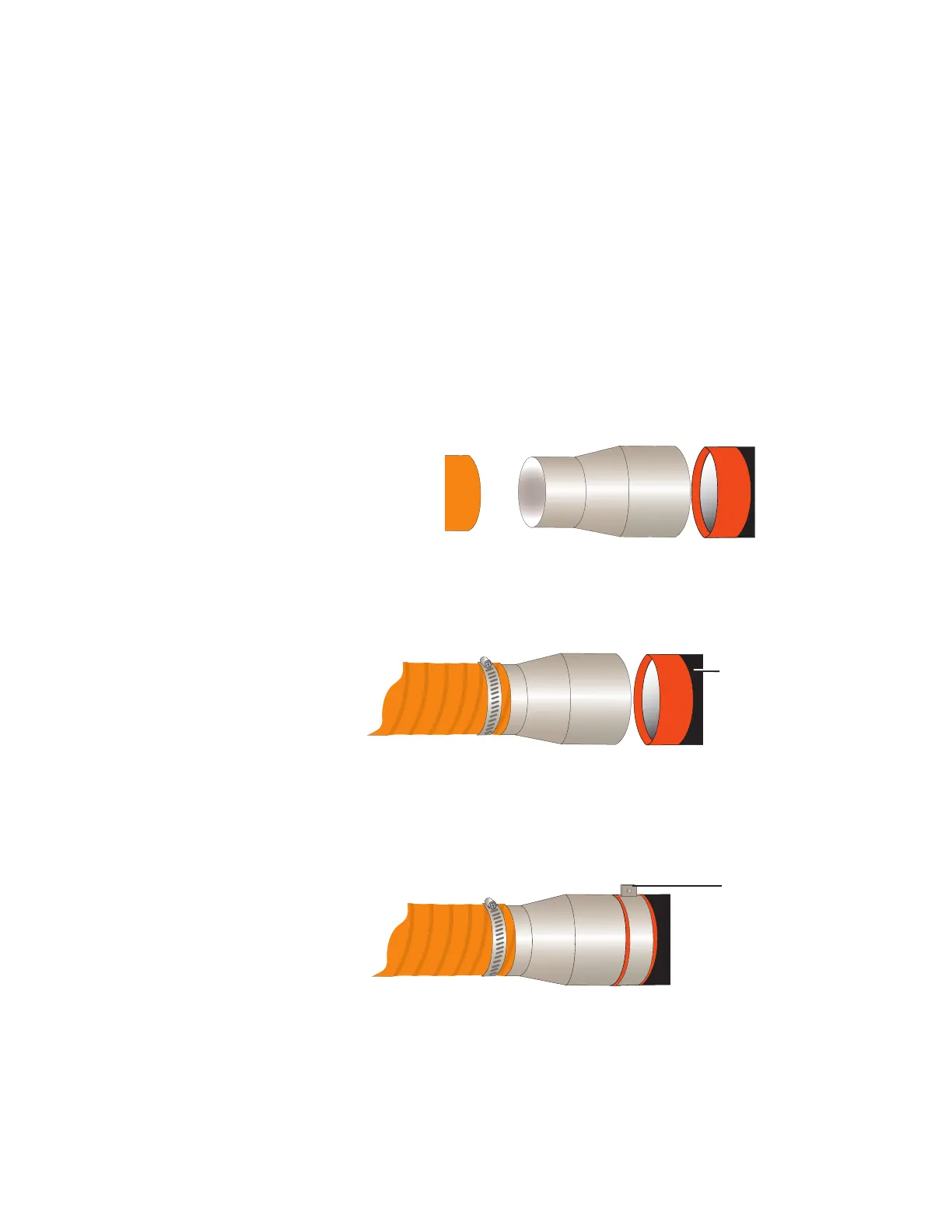

To connect the air hose adapter:
1 Place high temperature gasket half way down over the dryer outlet to the
hopper.
2 Attach the hopper inlet hose over the adapter, secure with clamp.
3 Place hose adapter inside high temperature gasket flush to the dryer outlet,
secure with pressure clamp.
3-12 l Installation
Dryer inlet/outlet
connection
Pressure clamp
