Conair 200 - Testing the Installation

3-14 l Installation
Mounting a Loader on the Hopper
If you have a Conair loader or vacuum receiver,
you can use the flange and mounting clips provid-
ed on the top of the hopper. Refer to the manuals
that came with your receiver or loader for detailed
installation instructions.
Testing the Installation
You have completed the installation. Now it’s time to make sure everything
works.

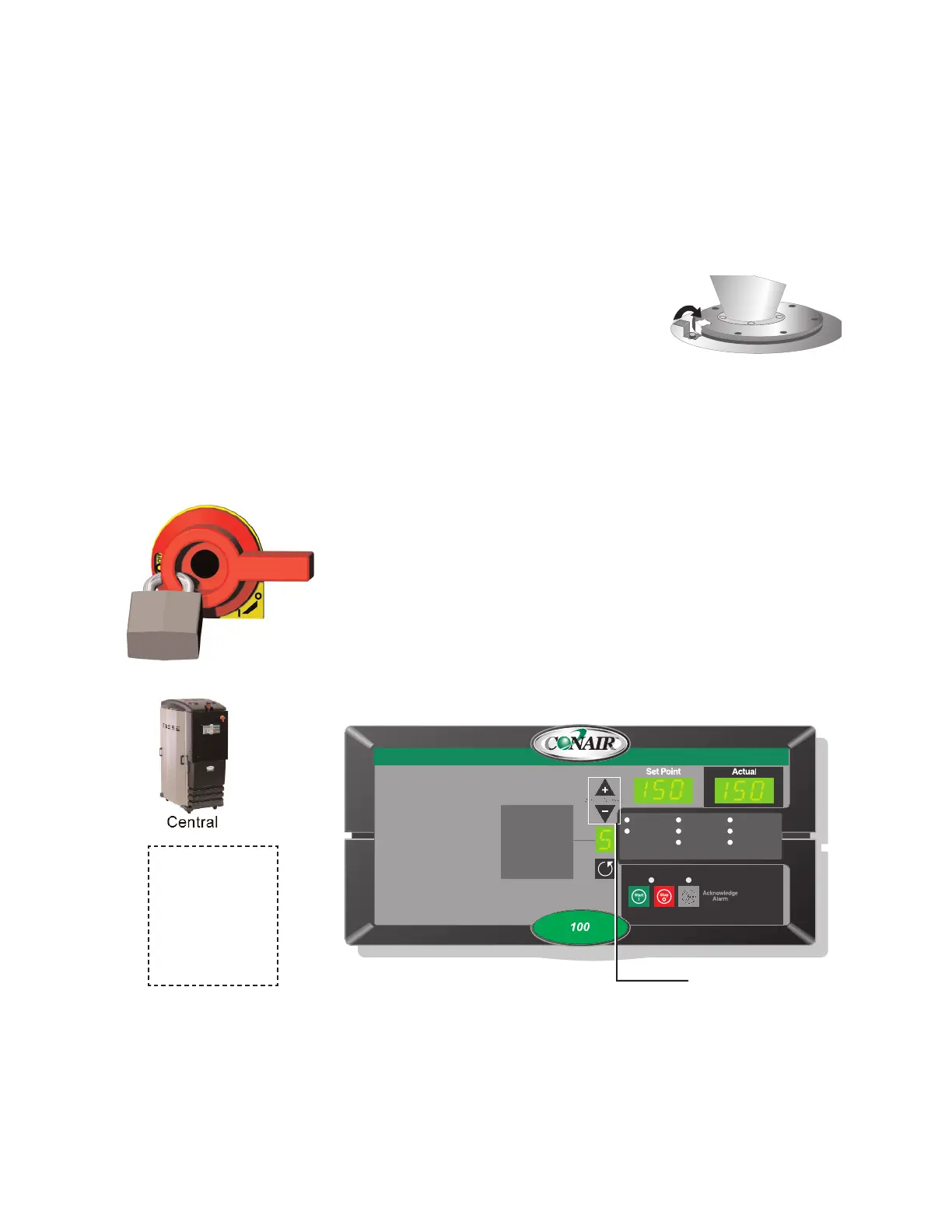

1 Make sure there is no material in the hopper. If you have mounted a
loader or vacuum receiver on the hopper, disconnect the material inlet hose
at the source or turn the loader off.
2 Turn on the main power to the dryer. Make sure the dryer’s disconnect
dial is in the ON position. This powers up the control and the display lights
will illuminate.
3 Set the drying temperature. Press Setpoint Adjust (+) or (-) buttons to set
the drying temperature to a low setpoint (150ºF {66ºC}).
When configured
as a central dryer,
the drying temper-
ature can not be
set since there is
no process heater
in the system.
Setpoint
adjustment
buttons
NOTE: Check to make
sure cable tie has been
removed from desic-
cant wheel
.
✐
NOTE: If A2 (Process
Loop Break) alarm
occurs, blower rotation
may be incorrect or
Process RTD is
installed incorrectly.
✐
Shutdown Alarms
A1 Process High Temp
A2 Process Loop Break
A3 Process Heater High Temp
A4 Regen Heater High Temp
A7 Return Air High Temp
A49 Process Protection High Temp
A53 Process Blower Overload
A55 Wheel Rotation Failure
Passive Alarms
P1 Process Temp Deviation
P3 Regen Temp Deviation
P5 Return Air Mid High Temp
P17 MDC Conveying Demand
1 Process Temp.
2 Regen. Temp.
3 Return Air Temp.
4 Auto Start
5 Load Time (MDC)
6 Activate Setback Temp.
7 Setback Temp.(Process)
8 Dewpoint
Auto Start
Dewpoint Control
Set-Back Temp.
Regen. Blower
Regen. Heater
Conveying Blower
Process Blower
Process Heater
