Conair 200 - Carousel Plus W Series Dryer: Control Panel DC-1

4-2 l Operation
Shutdown Alarms
A1 Process High Temp
A2 Process Loop Break
A3 Process Heater High Temp
A4 Regen Heater High Temp
A7 Return Air High Temp
A49 Process Protection High Temp
A53 Process Blower Overload
A55 Wheel Rotation Failure
Passive Alarms
P1 Process Temp Deviation
P3 Regen Temp Deviation
P5 Return Air Mid High Temp
P17 MDC Conveying Demand
1 Process Temp.
2 Regen. Temp.
3 Return Air Temp.
4 Auto Start
5 Load Time (MDC)
6 Activate Setback Temp.
7 Setback Temp.(Process)
8 Dewpoint
Auto Start
Dewpoint Control
Set-Back Temp.
Regen. Blower
Regen. Heater
Conveying Blower
Process Blower
Process Heater

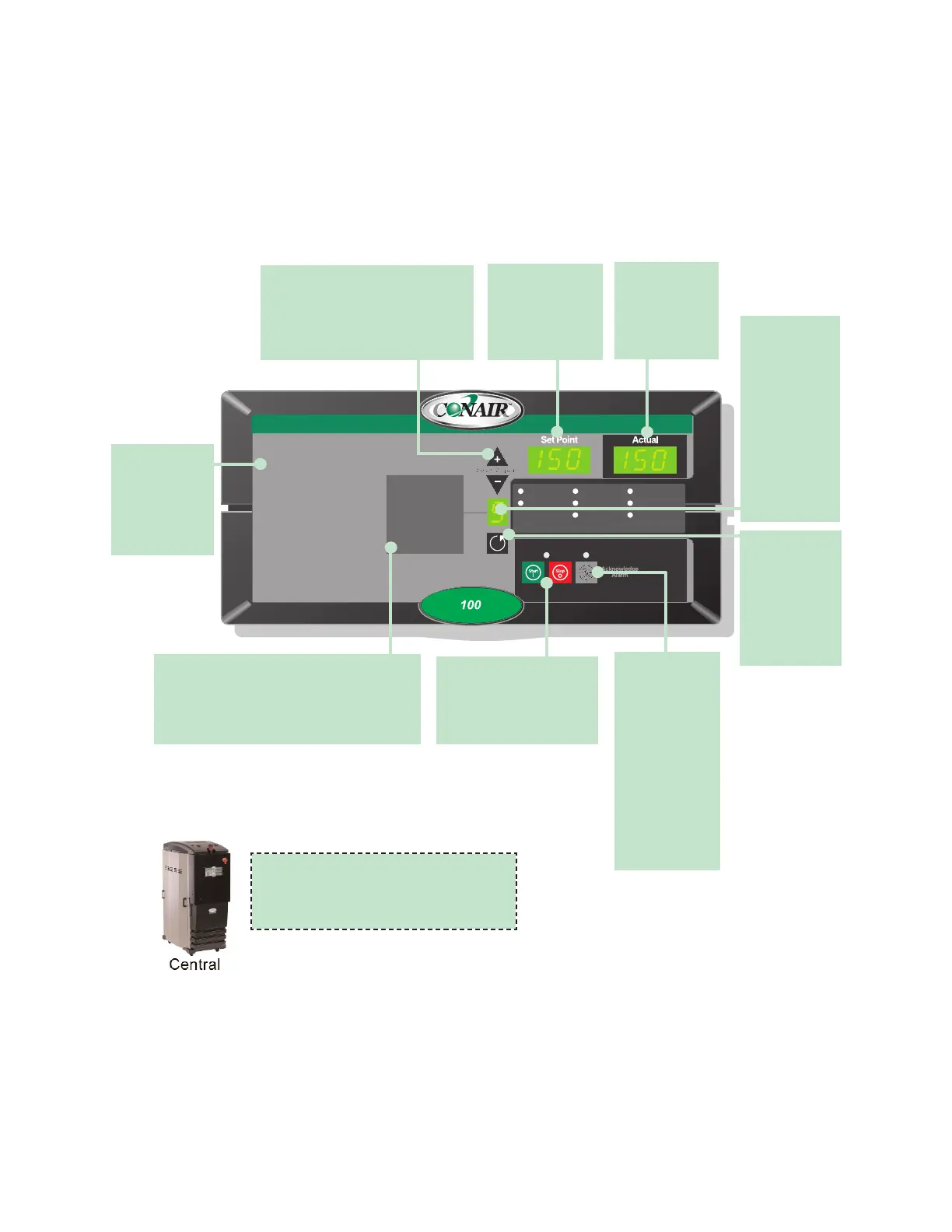

Carousel Plus W Series Dryer
: Control Panel DC-1
Scroll Button
Press to scroll
through the closed
loop menu list.
Pressing the
Scroll button
moves you down
the list.
Alarm Codes
See
Troubleshooting
section for a more
complete listing
of alarms.
Setpoint
Display
Shows the setpoint
value.
Menu List
Numbers 1, 2, 3, and 4 are standard items that will
always be present. Numbers 5, 6, 7, 8 are screens
associated with options. If the option is not
installed, the screens will not be displayed.
Increment/Decrement
Buttons
Used to increase and/or decrease the set-
point of a control function.
Acknowledge
Alarm Button
Press once to
silence the option-
al audible alarm
and display alarm
messages. Press
again to clear the
alarm. If pushed
when there is no
active alarm, the
most recent alarm
code is displayed.
Actual
Display
Shows the actual
temperature value.
Menu
Number
Display
Displays the
menu number
corresponding to
what is shown in
the setpoint and
actual displays.
Can also display
letters for alarms
and setup.
Start and Stop
Buttons
Press Start to start the dryer.
Press Stop to stop the dryer.
Menu List
Numbers 2, 3, and 4 are standard items that will
always be present. If the option is not installed,
the screens will not be displayed.
