Chapter Four Menu Operation Guide

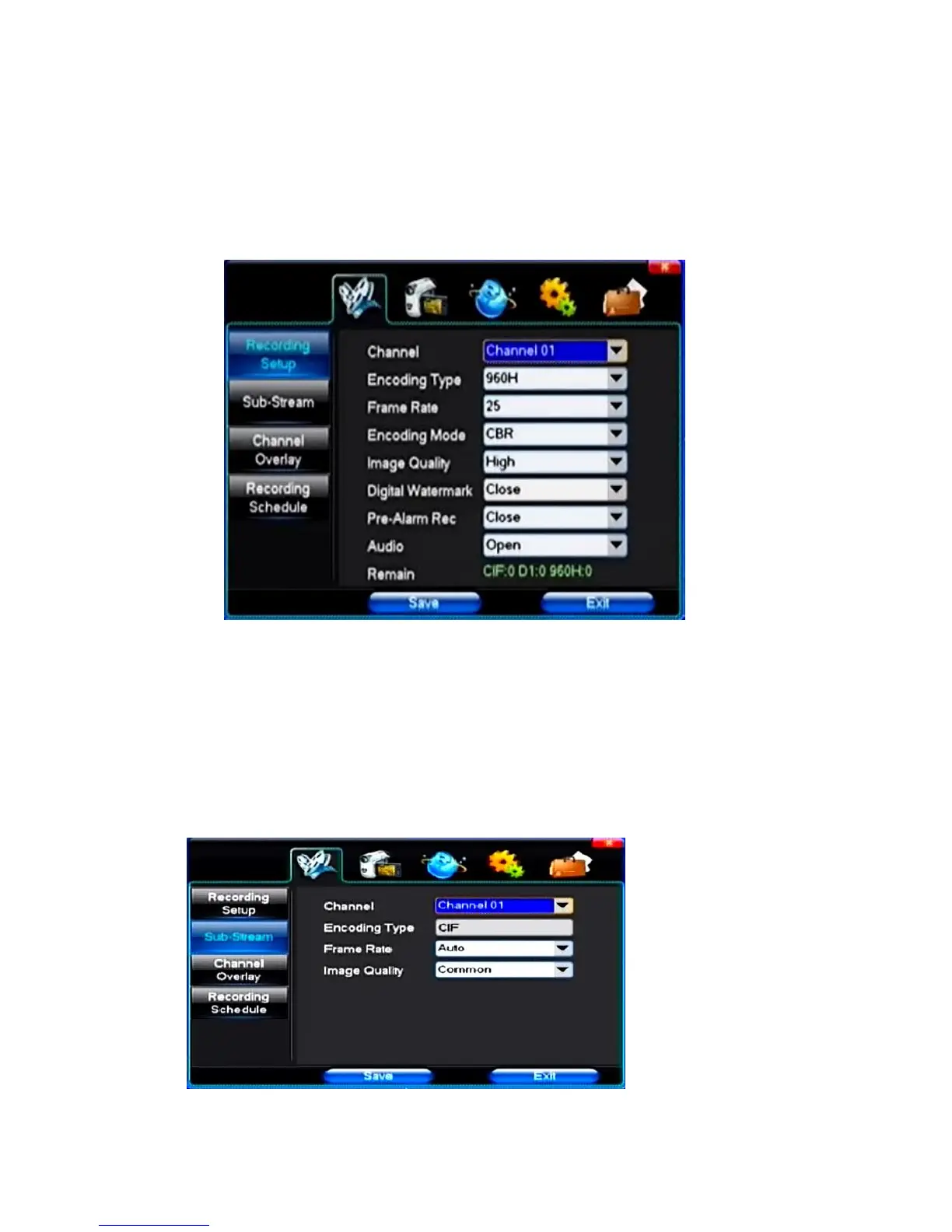

4.1 Recording Setup
(1) Recording Setup
【Channel】Choose the need to install passage "All" says setting all channels.
【Image Size】CIF/D1/960H
【Encoding Mode】Including fixed bitrate, dynamic bitrate.
【Image Quality】Client-side image quality, the higher the quality the clearer. Choice scope: minimum, low, general,
high, highest
【Frame Rate】Can click on the button manually input, 1 ~ 25 frames per second (PAL) or 1 ~ 30 frames per second
(NTSC) continuous adjustable.
【Audio】Can select close, open according to requirements
【Pre-Alarm Rec】Can select close, open according to requirements
(2)Sub-Stream
【Channel】Choose the need to install passage "ALL" says setting all channels.
【Encoding type】CIF
【Frame Rate】Including auto/1/2/3/4.
