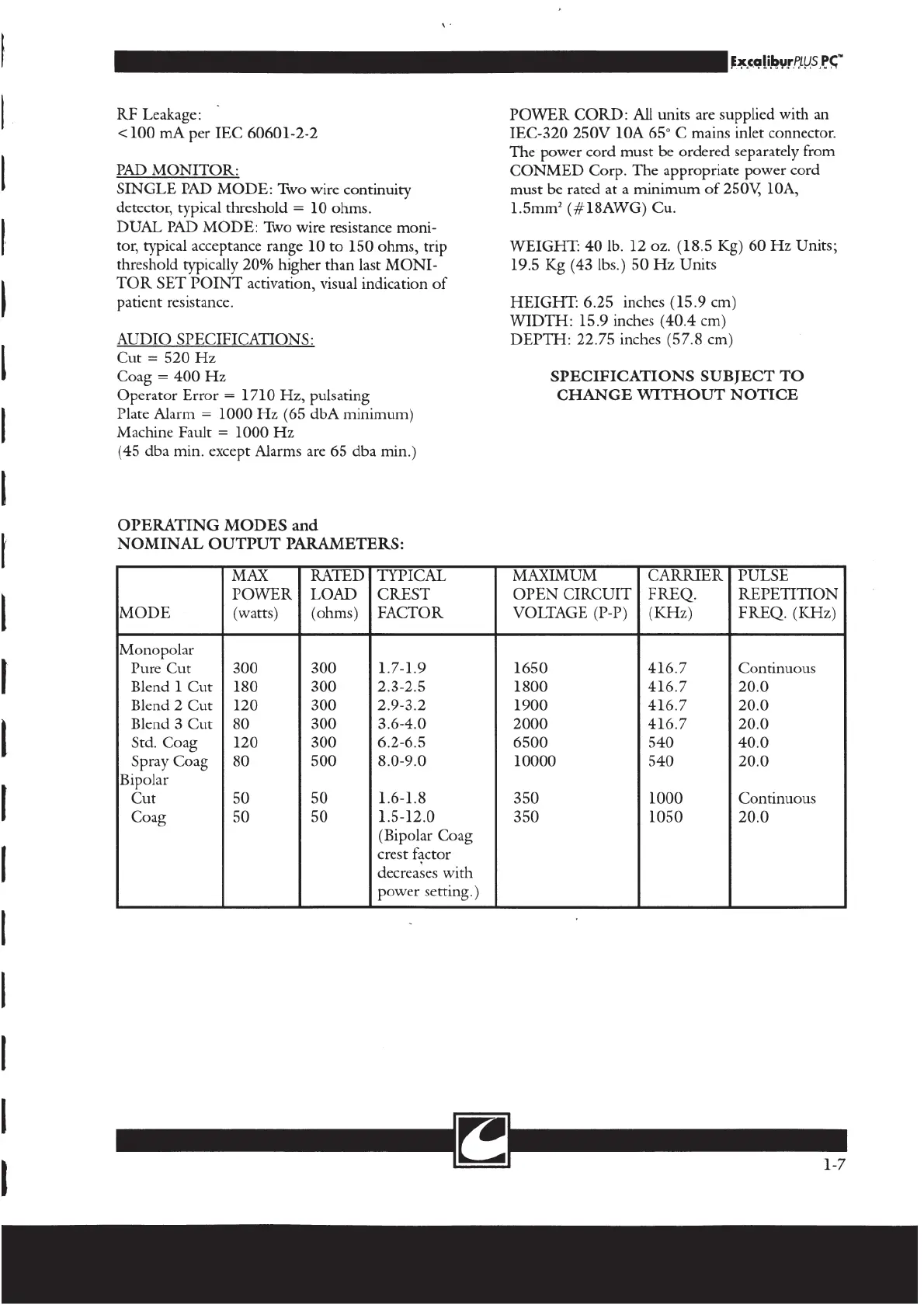

ConMed ExcaliburPLUS PC - Detailed Performance Specifications

RF Leakage:
<100 mA per IEC 60601-2-2
PAD MONITOR:
SINGLE PAD MODE: Two wire continuity
detector, typical threshold = 10 ohms.
DUAL PAD MODE: Two wire resistance moni-
tor, typical acceptance range 10 to 150 ohms, trip
threshold typically 20% higher than last MONI-
TOR SET POINT activation, visual indication of
patient resistance.
AUDIO SPECIFICATIONS:
Cut = 520 Hz
Coag = 400 Hz
Operator Error = 1710 Hz, pulsating
Plate Alarm = 1000 Hz (65 dbA minimum)
Machine Fault = 1000 Hz
(45 dba min. except Alarms are 65 dba min.)
OPERATING MODES and
NOMINAL OUTPUT PARAMETERS:
POWER CORD: All units are supplied with an
TEC-320 250V 10A 65° C mains inlet connector.
The power cord must be ordered separately from
CONMED Corp. The appropriate power cord
must be rated at a minimum of 250V, LOA,
1.5mm’ (#18AWG) Cu.
WEIGHT: 40 Ib. 12 oz. (18.5 Kg) 60 Hz Units;
19.5 Kg (43 lbs.) 50 Hz Units
HEIGHT: 6.25 inches (15.9 cm)
WIDTH: 15.9 inches (40.4 cm)
DEPTH: 22.75 inches (57.8 cm)
SPECIFICATIONS SUBJECT TO
CHANGE WITHOUT NOTICE
MAX RATED | TYPICAL MAXIMUM CARRIER | PULSE
POWER | LOAD | CREST OPEN CIRCUIT | FREQ. REPETITION
¡MODE (watts) (ohms) | FACTOR VOLTAGE (P-P) | (KHz) FREQ. (KHz)
IMonopolar
Pure Cut 300 300 1.7-1.9 1650 416.7 Continuous
Blend 1 Cut | 180 300 2.3-2.5 1800 416.7 20.0
Blend 2 Cut | 120 300 2.9-3.2 1900 416.7 20.0
Blend 3 Cut | 80 300 3.6-4.0 2000 416.7 20.0
Std. Coag 120 300 6.2-6.5 6500 540 40.0
Spray Coag | 80 500 8.0-9.0 10000 540 20.0
Bipolar
Cut 50 50 1.6-1.8 350 1000 Continuous
Coag 50 50 1.5-12.0 350 1050 20.0
(Bipolar Coag
crest factor
decreases with
power setting.)
