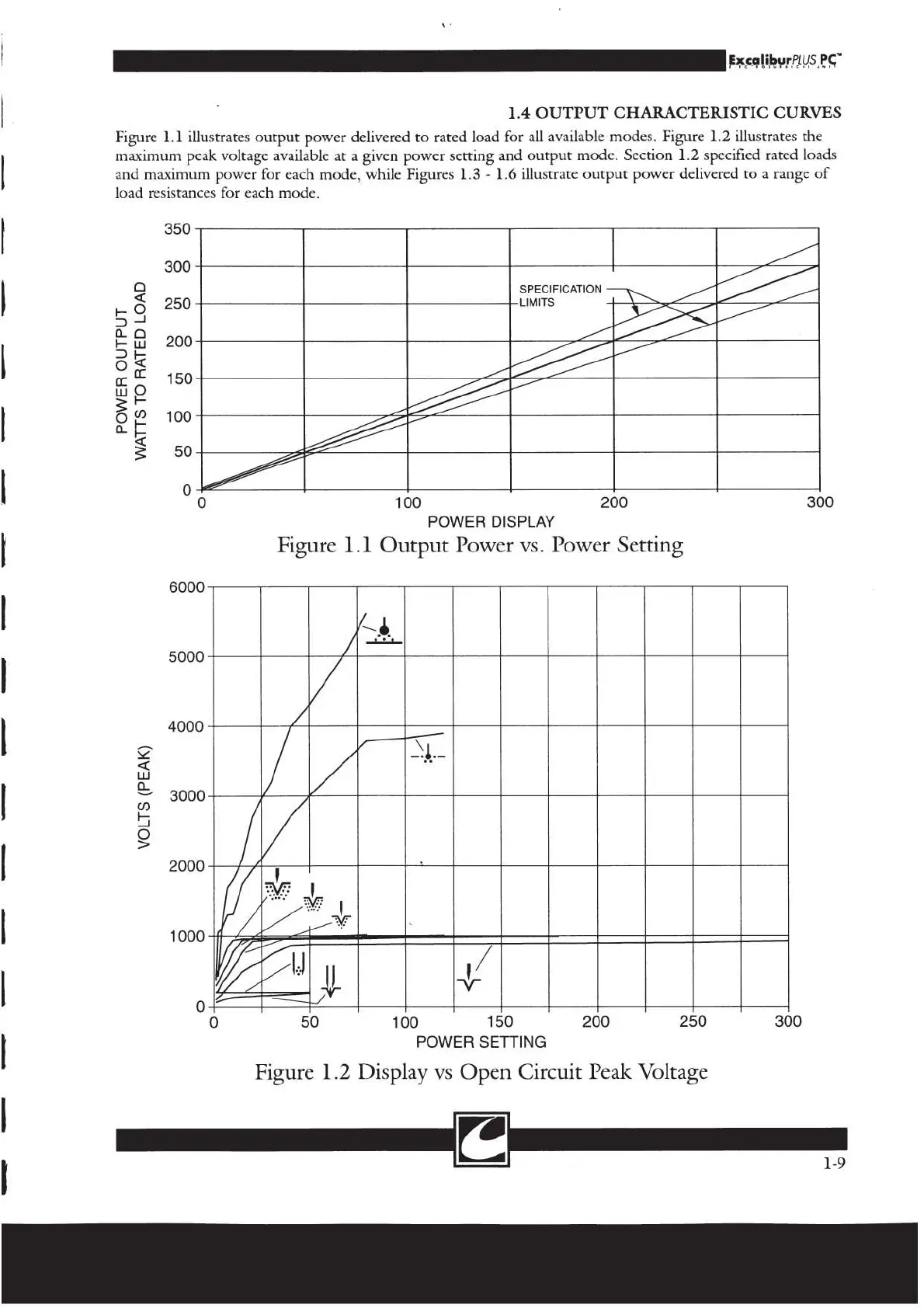

1.4 OUTPUT CHARACTERISTIC CURVES
Figure 1.1 illustrates output power delivered to rated load for all available modes. Figure 1.2 illustrates the
maximum peak voltage available at a given power setting and output mode. Section 1.2 specified rated loads
and maximum power for each mode, while Figures 1.3 - 1.6 illustrate output power delivered to a range of
load resistances for each mode.
350
300
250
SPECIFICATION
LIMITS >
200
150
POWER
OUTPUT
WATTS
TO
RATED
LOAD
100
50
04
0
6000
100 200 300
POWER DISPLAY
Figure 1.1 Output Power vs. Power Setting
5000
4000
3000
VOLTS
(PEAK)
2000
и
na
100 150 200 250 300
POWER SETTING
Figure 1.2 Display vs Open Circuit Peak Voltage
