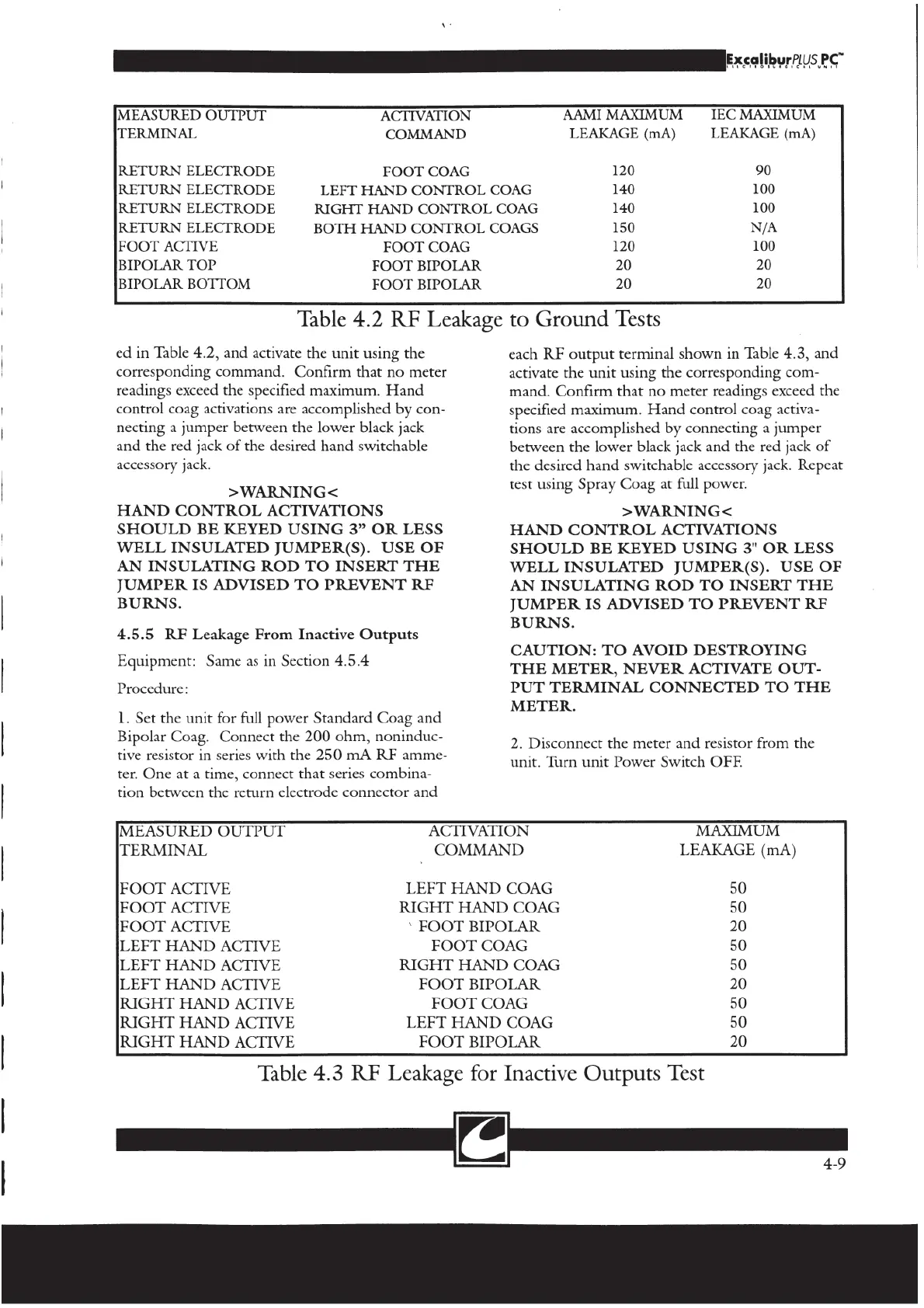

MEASURED
OUTPUT
ACTIVATION
AAMI
MAXIMUM
IEC
MAXIMUM
[TERMINAL
COMMAND
LEAKAGE
(mA)
LEAKAGE
(mA)
RETURN
ELECTRODE
FOOT COAG
120
90
RETURN
ELECTRODE
LEFT
HAND
CONTROL
COAG
140 100
RETURN
ELECTRODE
RIGHT
HAND
CONTROL
COAG
140 100
RETURN
ELECTRODE
BOTH
HAND
CONTROL
COAGS
150
N/A
FOOT
ACTIVE
FOOT
COAG
120 100
BIPOLAR
TOP
FOOT
BIPOLAR
20
20
BIPOLAR
BOTTOM
FOOT
BIPOLAR
20
20
Table
4.2
RF
Leakage
to
Ground
Tests
ed
in
Table
4.2,
and
activate
the
unit
using
the
corresponding
command.
Confirm
that
no
meter
readings exceed
the
specified
maximum.
Hand
control
coag
activations
are
accomplished
by
con-
necting
a
jumper between
the
lower
black
jack
and
the
red
jack
of
the
desired
hand
switchable
accessory
jack.
>WARNING<
HAND
CONTROL
ACTIVATIONS
SHOULD
BE
KEYED
USING
3”
OR
LESS
WELL INSULATED
JUMPER(S).
USE
OF
AN
INSULATING
ROD
TO
INSERT
THE
JUMPER
IS
ADVISED
TO
PREVENT
RF
BURNS.
4.5.5
RF
Leakage
From
Inactive
Outputs
Equipment:
Same
as in
Section
4.5.4
Procedure:
1.
Set the
unit
for
full
power
Standard
Coag
and
Bipolar
Coag.
Connect
the
200
ohm,
noninduc-
tive
resistor
in
series
with
the
250
mA
RF
amme-
ter,
One
at
a
time,
connect
that
series
combina-
tion
between
the
return
electrode
connector
and
each
RF
output
terminal
shown
in
Table
4.3,
and
activate
the
unit
using
the
corresponding
com-
mand.
Confirm
that
no
meter
readings
exceed
the
specified
maximum.
Hand
control
coag
activa-
tions
are
accomplished
by
connecting
a
jumper
between
the
lower
black
jack
and
the red
jack
of
the
desired
hand
switchable
accessory
jack.
Repeat
test
using
Spray
Coag
at
full
power.
>WARNING<
HAND
CONTROL
ACTIVATIONS
SHOULD
BE
KEYED
USING
3"
OR
LESS
WELL
INSULATED
JUMPER(S).
USE
OF
AN
INSULATING
ROD
TO
INSERT
THE
JUMPER
IS
ADVISED
TO
PREVENT
RF
BURNS.
CAUTION:
TO
AVOID
DESTROYING
THE
METER,
NEVER
ACTIVATE
OUT-
PUT
TERMINAL
CONNECTED
TO
THE
METER.
2.
Disconnect
the
meter
and
resistor
from
the
unit.
Turn
unit
Power
Switch
OFE
IMEASURED
OUTPUT
ACTIVATION
MAXIMUM
¡TERMINAL
COMMAND
LEAKAGE
(mA)
FOOT
ACTIVE
LEFT
HAND
COAG
50
FOOT
ACTIVE
RIGHT
HAND
COAG
50
FOOT
ACTIVE
*
FOOT
BIPOLAR
20
LEFT
HAND
ACTIVE
FOOT
COAG
50
LEFT
HAND
ACTIVE
RIGHT
HAND
COAG
50
LEFT
HAND
ACTIVE
FOOT BIPOLAR
20
RIGHT
HAND
ACTIVE
FOOT
COAG
50
RIGHT
HAND
ACTIVE
LEFT
HAND
COAG
50
RIGHT
HAND
ACTIVE
FOOT
BIPOLAR
20
Table
4.3
RF
Leakage
for
Inactive
Outputs
Test
