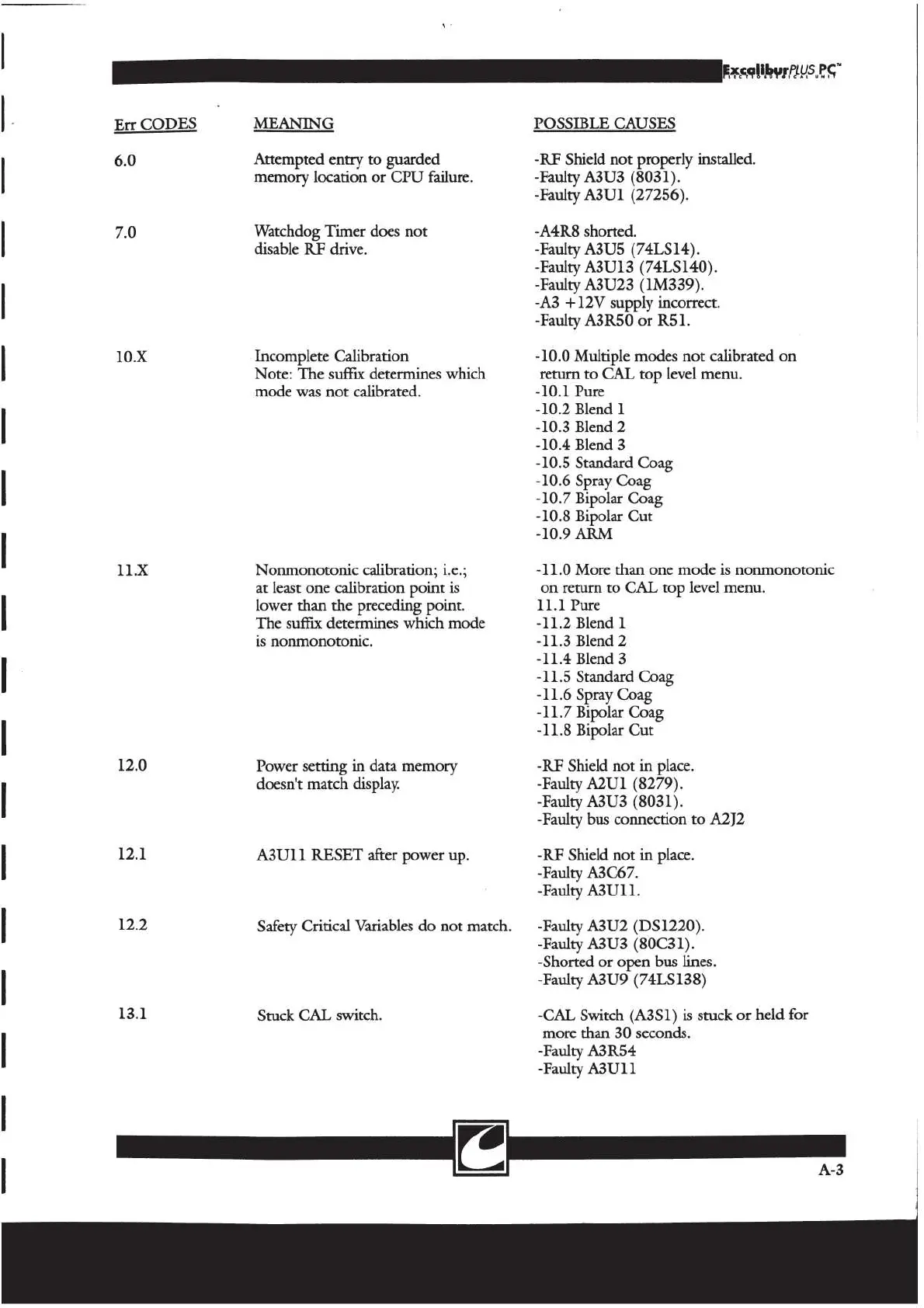

Err CODES
6.0
MEANING
Attempted entry to guarded
memory location or CPU failure.
Watchdog Timer does not
disable
RF drive.
Incomplete Calibration
Note: The suffix determines which
mode was not calibrated.
Nonmonotonic calibration; i.e.;
at least one calibration point is
lower than the preceding point.
The suffix determines which mode
is nonmonotonic.
Power setting in data memory
doesn't match display.
A3U11 RESET after power up.
Safety Critical Variables do not match.
Stuck CAL switch.
POSSIBLE CAUSES
-RF Shield not properly installed.
-Faulty A3U3 (8031).
-Faulty A3U1 (27256).
-A4R8 shorted.
-Faulty A3U5 (74LS14).
-Faulty A3U13 (74LS140).
-Faulty A3U23 (1M339).
-A3 +12V supply incorrect.
-Faulty A3R50 or R51.
-10.0 Multiple modes not calibrated on
return to CAL top level menu.
-10.1 Pure
-10.2 Blend 1
-10.3 Blend 2
-10.4 Blend 3
-10.5 Standard Coag
-10.6 Spray Coag
-10.7 Bipolar Coag
-10.8 Bipolar Cut
-10.9 ARM
-11.0 More than one mode is nonmonotonic
on return to CAL top level menu.
11.1 Pure
-11.2 Blend 1
-11.3 Blend 2
-11.4 Blend 3
-11.5 Standard Coag
-11.6 Spray Coag
-11.7 Bipolar Coag
-11.8 Bipolar Cut
-RF Shield not in place.
-Faulty A2U1 (8279).
-Faulty A3U3 (8031).
-Faulty bus connection to A2J2
-RF Shield not in place.
-Faulty A3C67.
-Faulty A3U11.
-Faulty A3U2 (DS1220).
-Faulty A3U3 (80C31).
-Shorted or open bus lines.
-Faulty A3U9 (74LS138)
-CAL Switch (A3S1) is stuck or held for
more than 30 seconds.
-Faulty A3R54
-Faulty A3U11
