SRT X-BAND RADAR SYSTEMS
INSTALLATION
304202P003 8.19 Rev. C

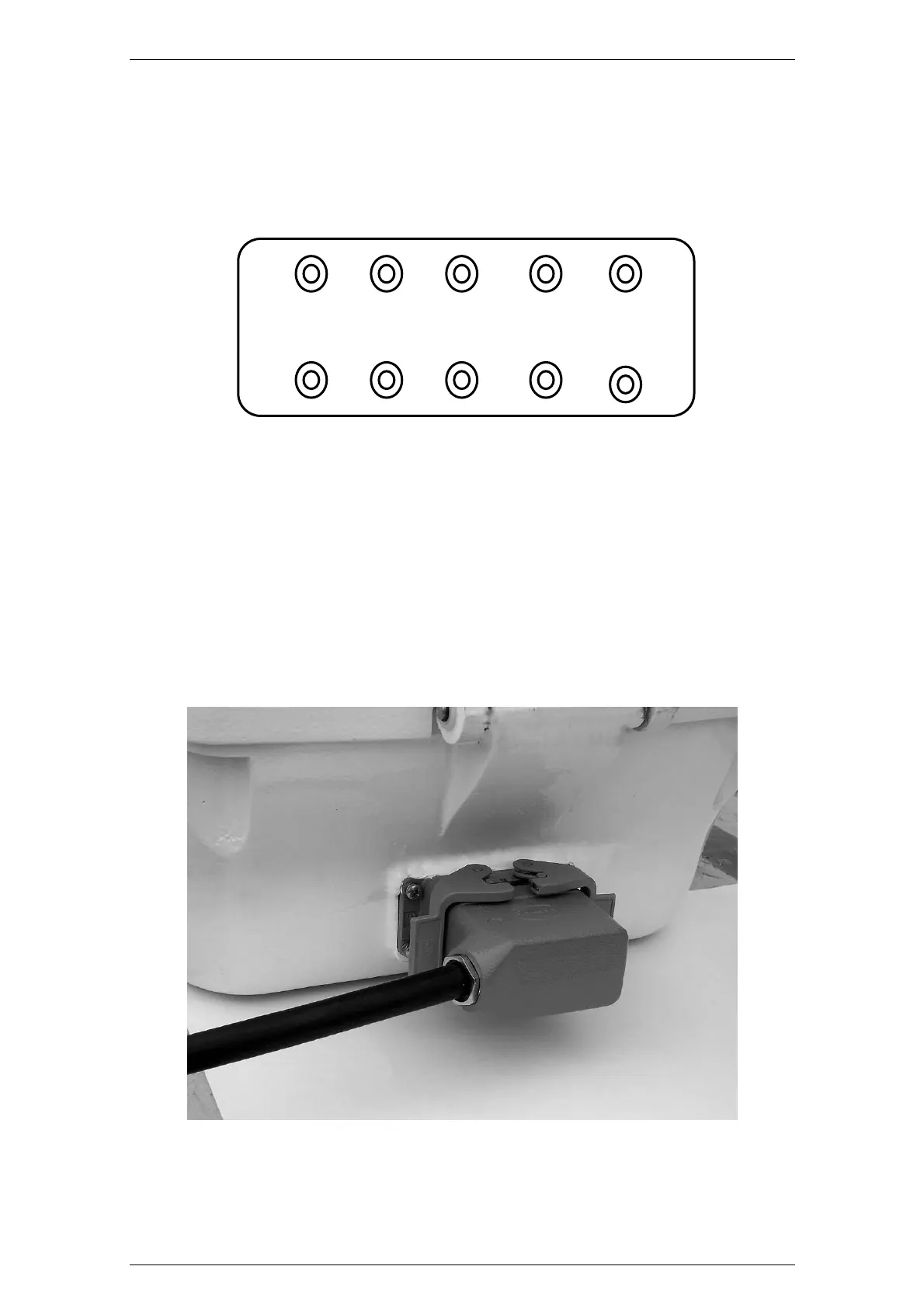

Fig 7 Main Connector Drawing
Fig 8 Cable termination
Cable connector in 12/25kW X-band Up-mast transceiver
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
SFT ANTS GND EBAT - EBAT+
Pin 6 Pin 6 Pin 8 Pin 9 Pin 10
VD05 VD NC MBAT - MBAT+
