3. Each Component Function
18 IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual
Ethernet (UTP)

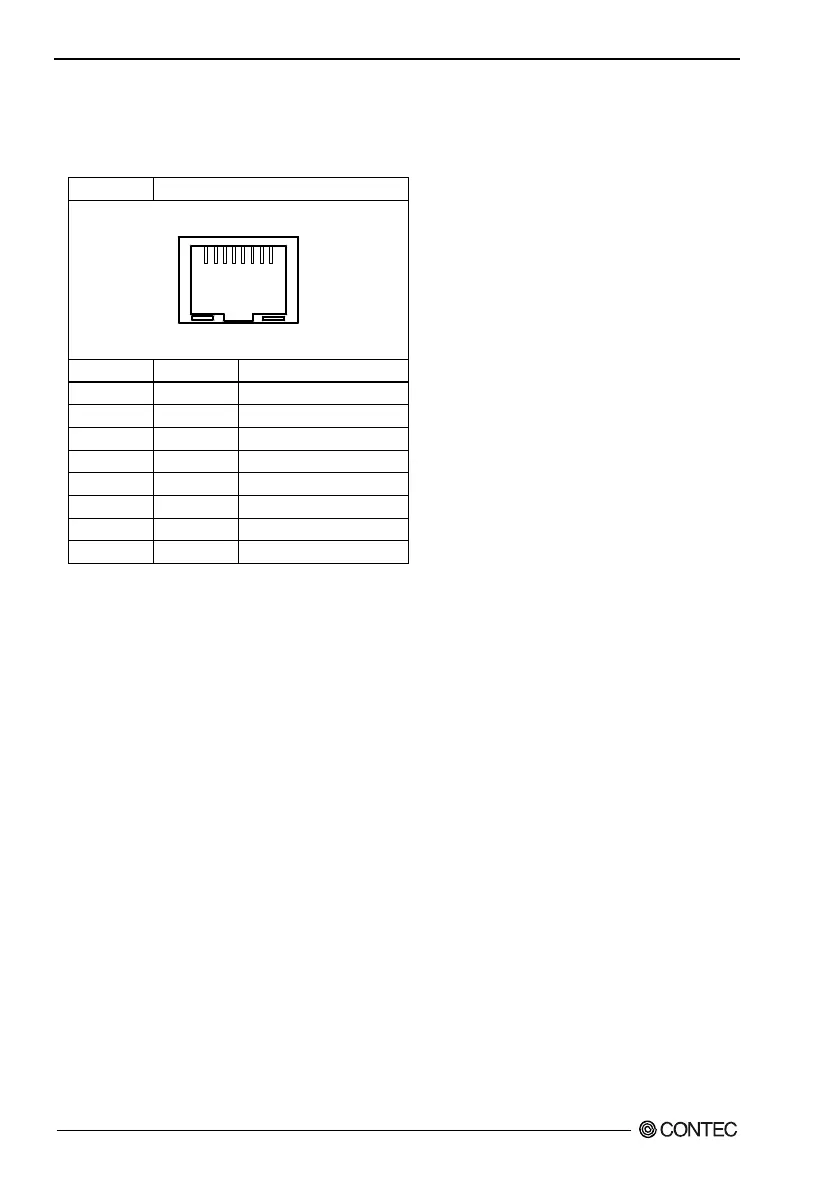

Table 3.8. Ethernet connector (RJ-45)
Connector
RJ-45
Pin No.
1
2
3
4
5
6
7
8
Signa
TX+
TX-
RX+
N.C.
N.C.
RX-
N.C.
N.C.
Remarks
Transmitted data (+) output
Transmitted data (-) output
Received data (+) input
Not connected
Not connected
Received data (-) input
Not connected
Not connected
81
ACT
LINK
LED Indicators
- LINK(Green)
Indicates the LINK status.
- ACT(Orange)
Goes on to indicate that data is being transmitted/received.
