3. Each Component Function
IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual 21
USB port
IPC-PT/MV10 and IPC-PT/LS10 series have equipped one USB interface channel.
HPC-HMV10 and HPC-HLS10 series have equipped two USB interface channels.

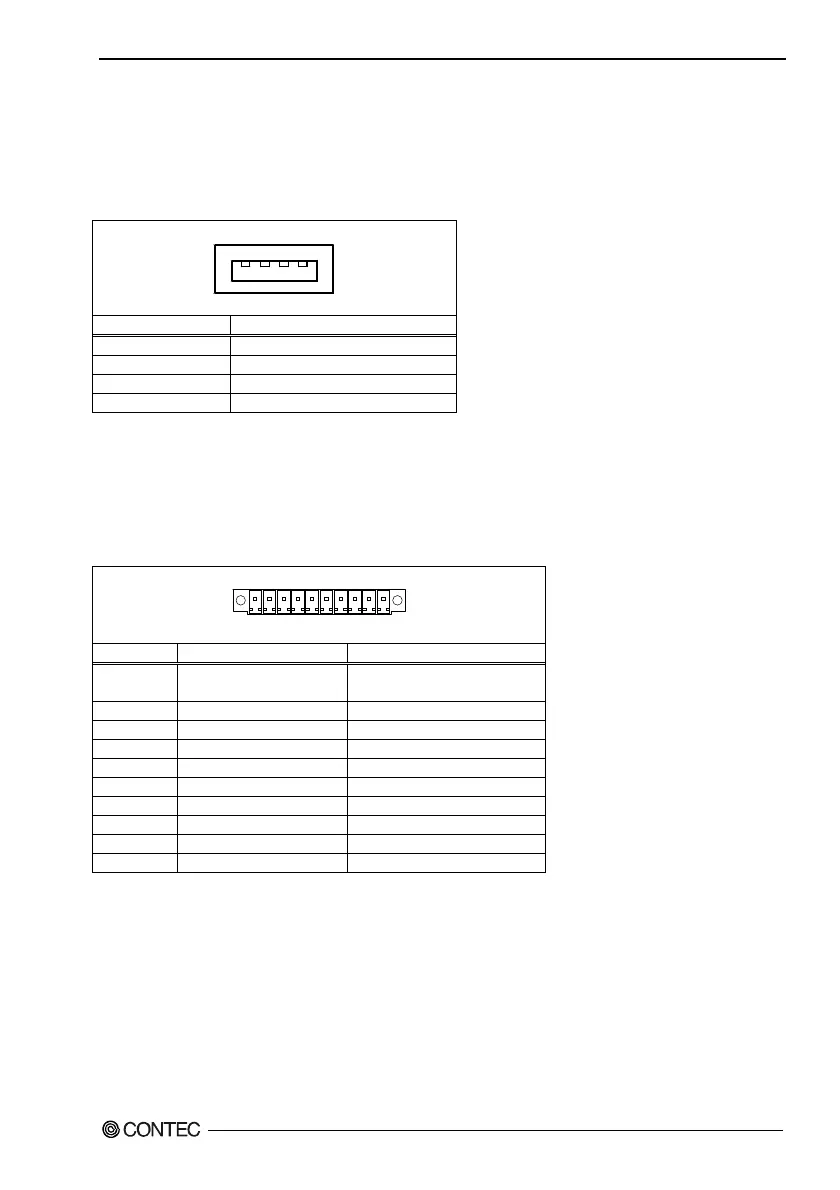

Table 3.11. USB connector
14
Pin No. Signal
1 Vcc
2 DATA+
3 DATA-
4 GND
General-purpose I/O ports (I/O)
The unit has three channels of general-purpose isolated I/O port.
Refer to the software manual for programming this ports.
Table 3.12. General-purpose I/O ports connector
1
10
↓
Front(LCD) side
Pin No. Signal Remarks
1 PI_PCOM General-purpose input
(plus common)
2 PI(0) General-purpose Input 0
3 PI(1) General-purpose Input 1
4 PI(2) General-purpose Input 2
5 P_PO(0) General-purpose Output 0+
6 N_PO(0) General-purpose Output 0-
7 P_PO(1) General-purpose Output 1+
8 N_PO(1) General-purpose Output 1-
9 P_PO(2) General-purpose Output 2+
10 N_PO(2) General-purpose Output 2-
Connector: MC1,5/10-GF-3,5(PHOENIX CONTACT)
Cable connector: MC1,5/10-STF-3,5(PHOENIX CONTACT)
