3. Each Component Function
IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual 23

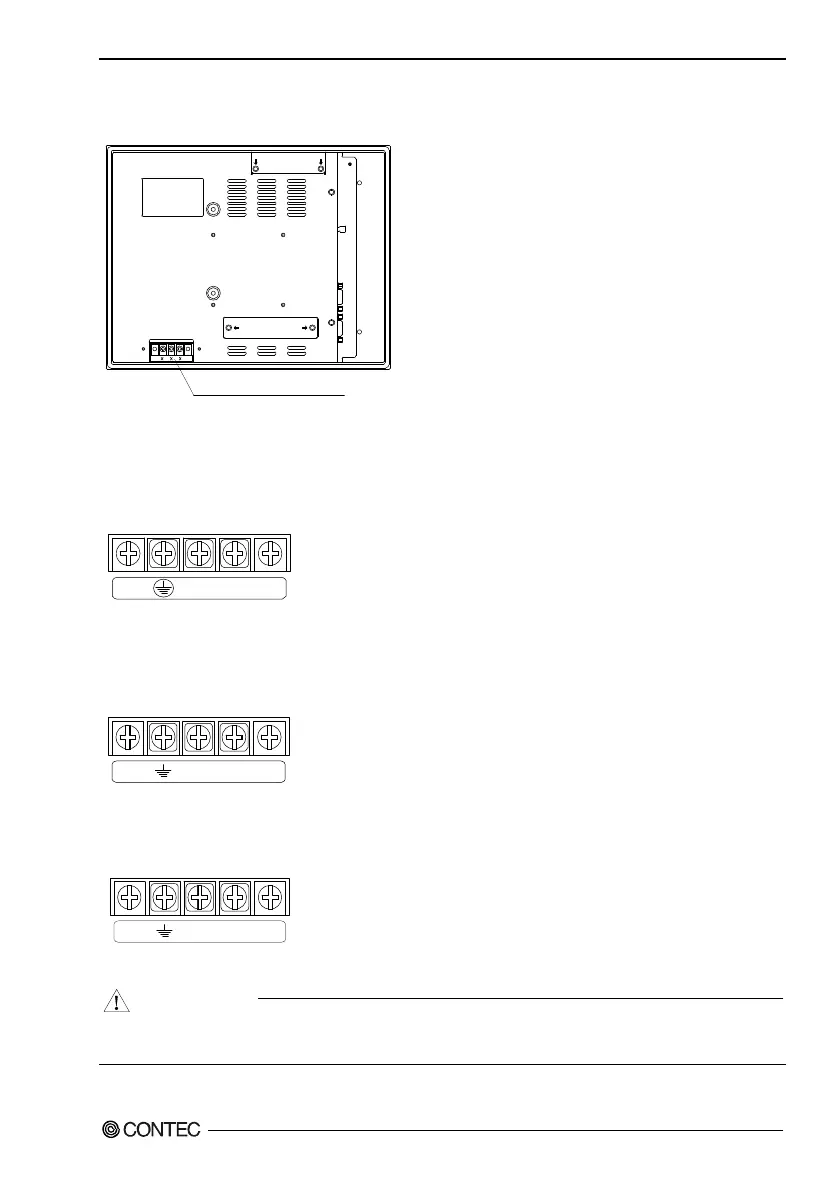

Power input terminal strip
Power input terminal strip
Screw diameter: M3.5
Terminal strip pitch: 8.9mm
Figure 3.12. Power input terminal strip
IPC-PT/xx10AC series, HPC-Hxx10AC series (100VACIn type)
N
L
Rated input range: 100V to 240VAC
Figure 3.13. Power input terminal strip <100VAC In type>
IPC-PT/xx10DC1 series, HPC-Hxx10DC1 series (+12VDCIn type)
GND +12V
Figure 3.14. Power input terminal strip <+12VDC In type>
IPC-PT/xx10DC2, HPC-Hxx10DC2 series (+24 VDC isolated input type)
GND +24V
Figure 3.15. Power input terminal strip <+24 VDC isolated input type >
CAUTION
All the terminals are identically shaped. Be careful not to connect power at wrong In voltage, or
the unit may cause a fault.
