Contec IPC-PT/MV10 Series Hardware Manual

3. Each Component Function
22 IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual
Specifications
[Input section]
- Input specification : Optocoupler-isolated current drive input
- Input resistance : 3k
Ω
- Number of input signals : 3
- Input protection circuit : Reverse-connection protection diode provided
- Input response time : Within 100
μ
sec
- External circuit power supply : 12 to 24VDC(±10%)
[Output section]
- Output specification : Optocoupler-isolated open-collector output
- Output rating : 30VDC, 100mA max.
- No. of output signals : 3
- Output response time : Within 300
μ
sec

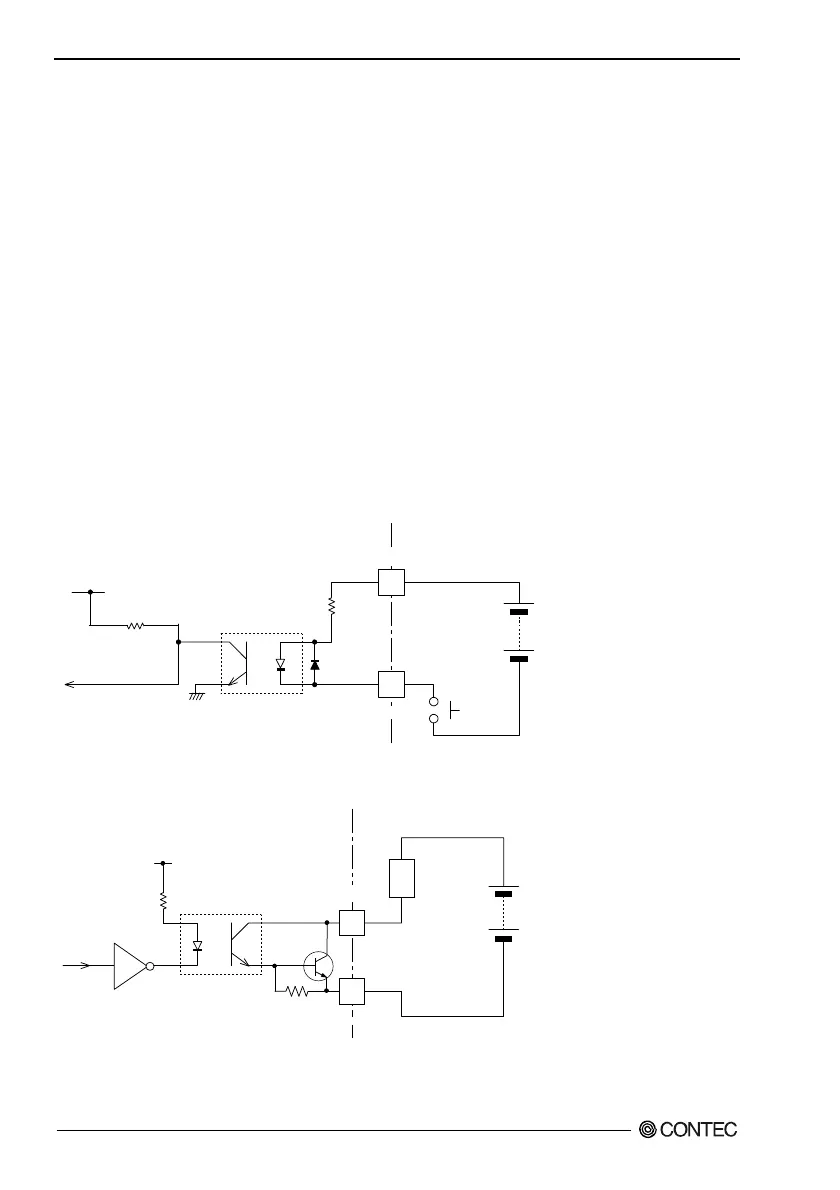

External Connection
3kW
1/2W
External power supply
(12V to 24VDC)
Input
contact
PI_PCOM
PI(0) to PI(2)
I/O connector
10kW
Figure 3.10. In circuit
P_PO(0) to P_PO(2)
N_PO(0) to N_PO(2)
External power supply
(Max. 30VDC)
(External circuit)
I/O connector
PC357
load
330Ω
4.7kΩ
2SD780A
Figure 3.11. Output circuit
