Keyboard Interface (KB)

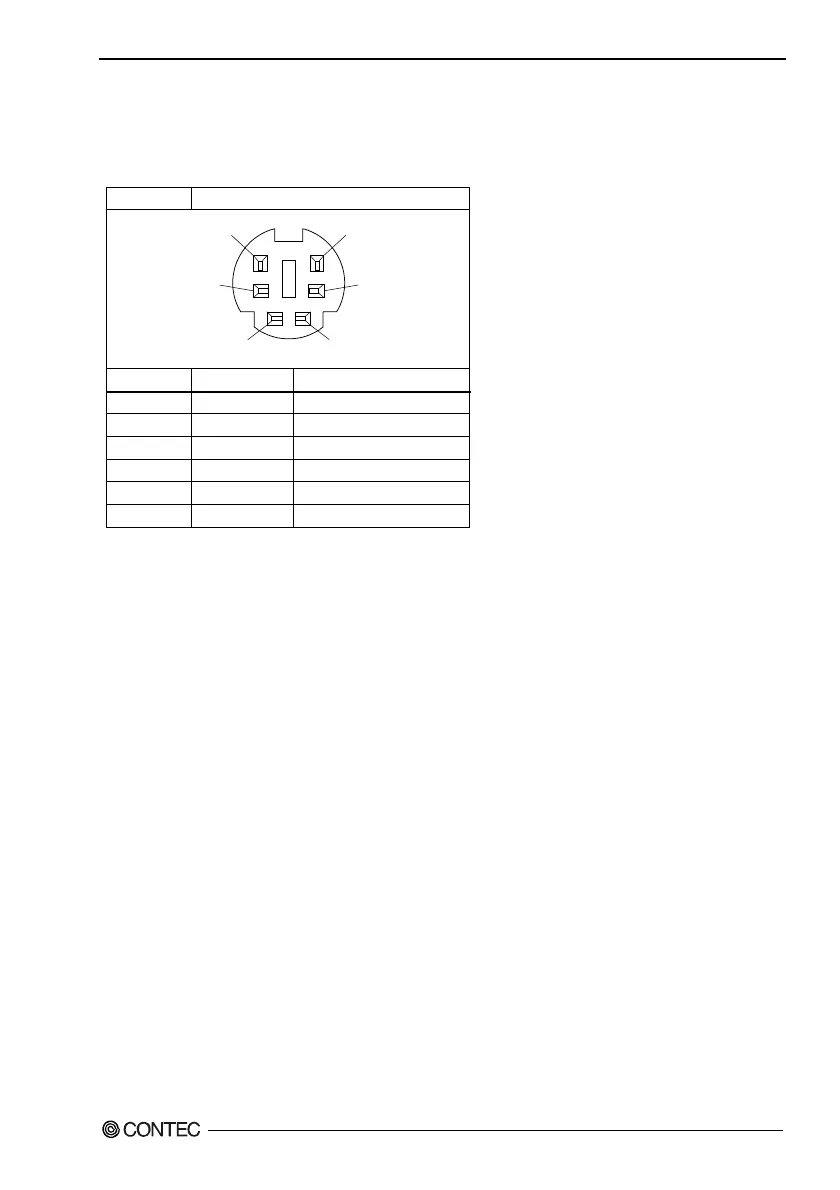

Table 3.9. KB connector
Connector type
MINI-DIN 6-pin
Pin no.
1
2
3
4
5
6
Remarks
With fuse(max. 1.6A)
Signal
KBD DATA
MOUSE DATA
GND
Vcc (+5V)
KBD CLK
MOUSE CLK
6
4
2
1
3
5
Note: A commercially available PS/2 branch cable is required to use a PS/2 mouse.
Product example: KB-PSY02K3 (SANWA SUPPLY)
Note: Use connector 1 for keyboard and connector 2 for mouse.
