Contec IPC-PT/MV10 Series Hardware Manual

4. Hardware Setup
IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual 29

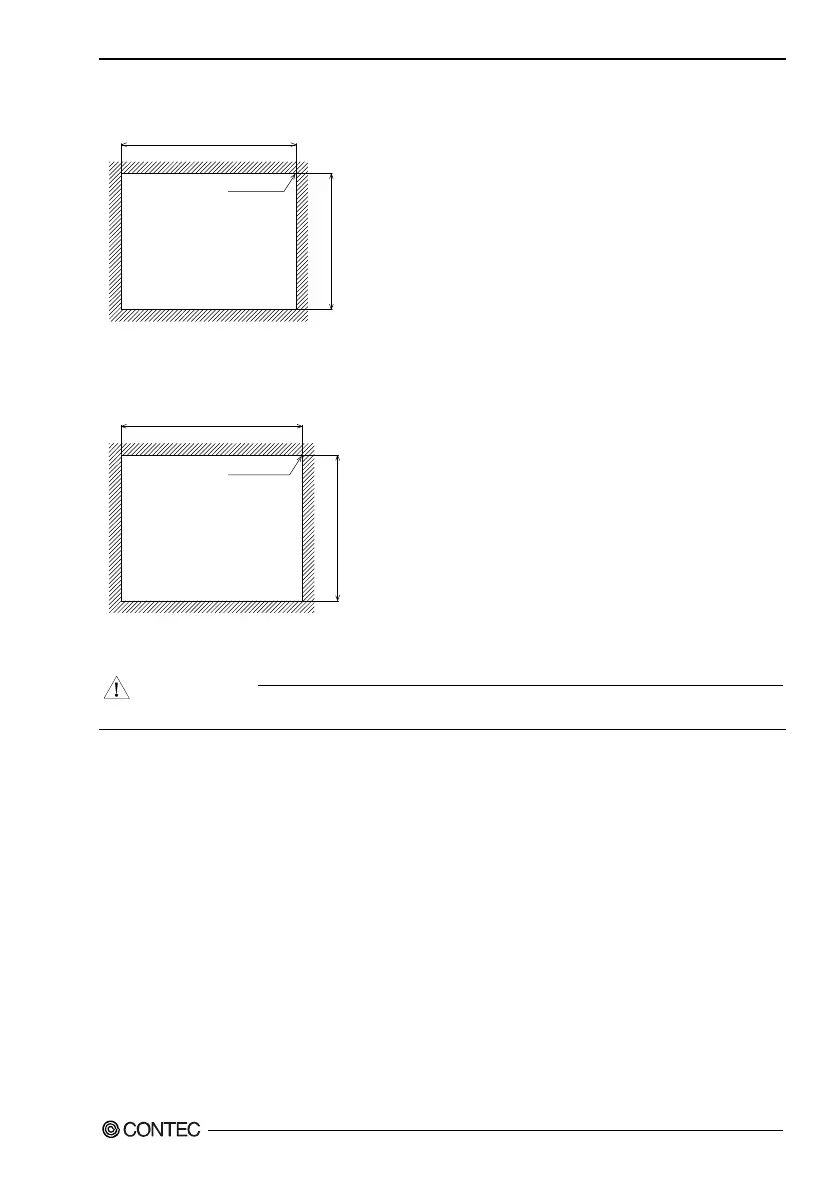

Panel cut dimensions Figure
R1 or less
292
+1
-0
227
+1 -0
Panel thickness range 1.6~7mm
[mm]
Figure 4.4. Panel cut dimensions figure <IPC-PT/MV10 series, HPC-HMV10 series>
303
+1
-0
243
+1 -0
R1 or less
Panel thickness range 1.6~7mm
[mm]
Figure 4.5. Panel cut dimensions figure <IPC-PT/LS10 series, HPC-HLS10 series>
CAUTION
Use a panel with a thickness in the range 1 to 10mm.
