M’AxUserGuide 9
Issue Number: 4
Signal connections for high-precision analog speed
control in Terminal mode
Suitable for version:
_AN
(If required, refer to the rating label on the right side of the Drive to find
the version code.)
Make these connections to allow the Drive to be controlled and
monitored locally by simple external controls and indicators.
Connections shown in grey are optional.
The RESET contact is required for version _SL, but is optional for
version _AN which can also be reset by use of the keypad.

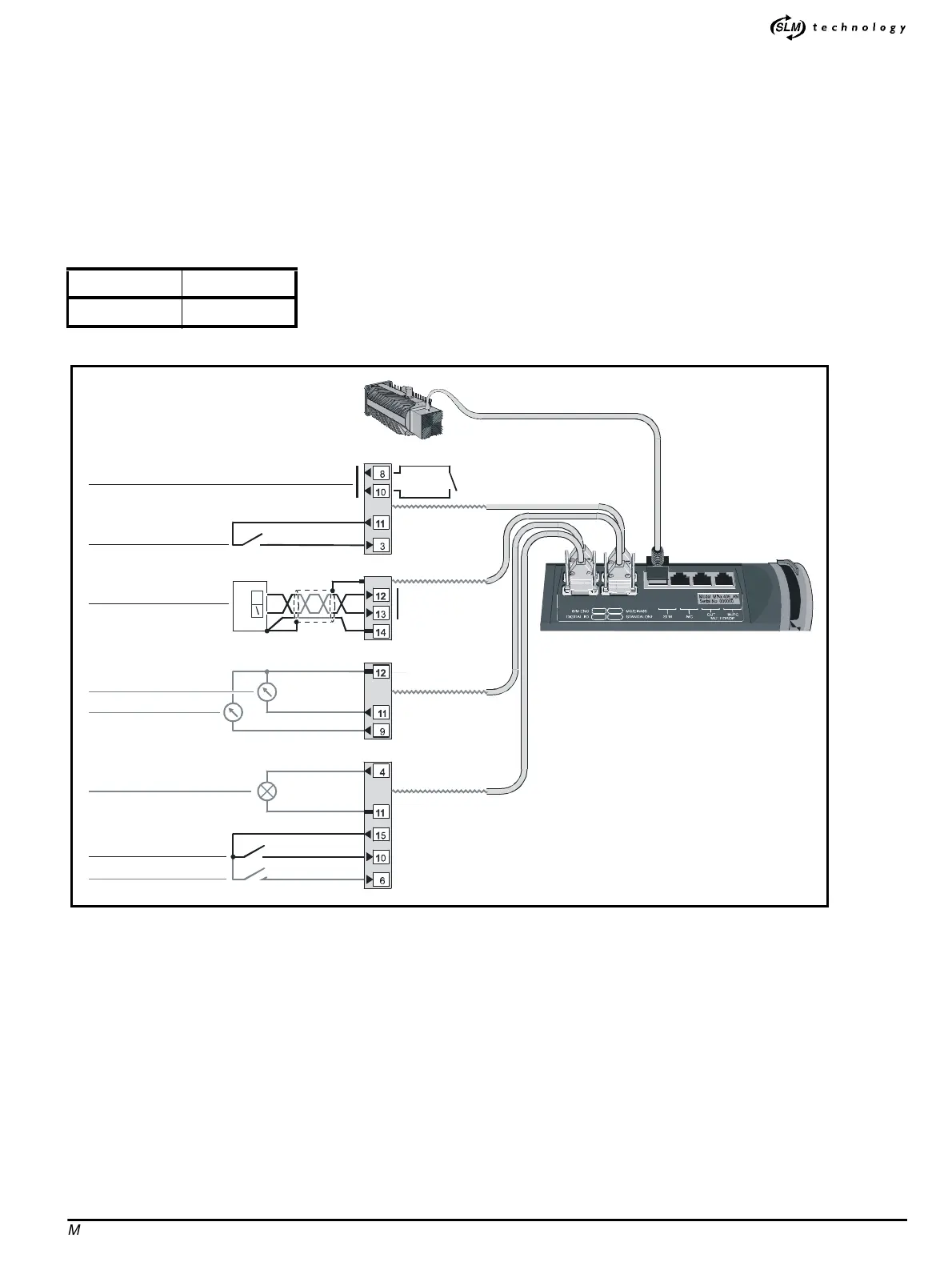

Figure 2-4 Signal connections for high-precision analog speed
control in Terminal mode
Parameter Setting
1.14 {0.30} 1
RUN
DIGITAL I/O
AT ZERO SPEED
MC/EIA485
Hardware enable
24V user supply
Hardware enable
Status
relay
Drive monitoring
Speed reference (±10V)
SIM ENC
STANDALONE
High-precision
analog input
0V COMMON
SPEED
TORQUE
0V COMMON
24V user supply
RESET
Analog output 1
Analog output 2
Digital input 1
Digital input 6
0V
Digital output 2
