14 M’Ax User Guide
Issue Number: 4
Signal connections for high-precision speed control
by motion controller supplying an analog speed
reference
Suitable for version:
_AN
(If required, refer to the rating label on the right side of the Drive to find
the version code.)
Connections shown in grey are optional.
The RESET contact is optional since version _AN can also be reset by
use of the keypad.

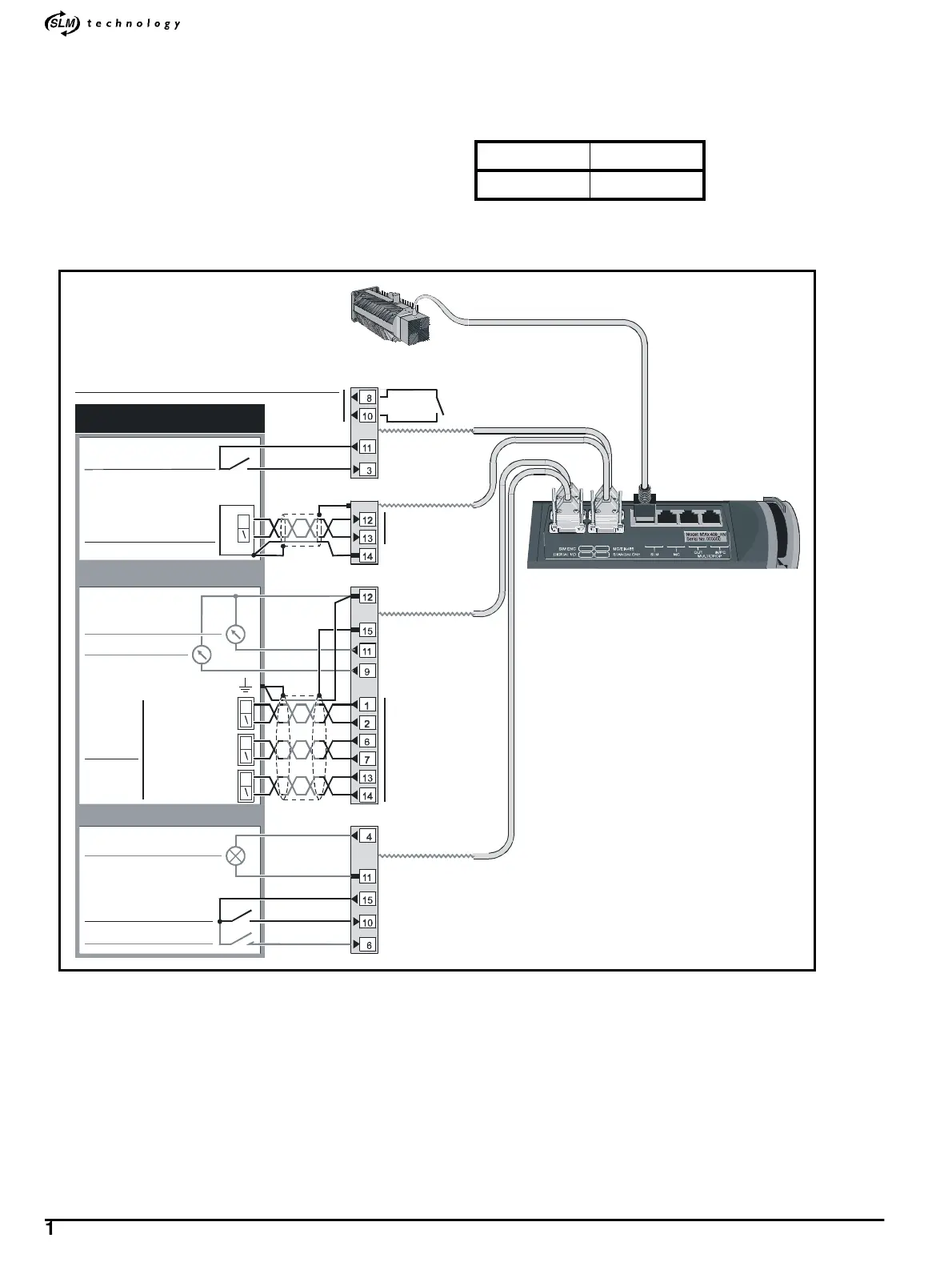

Figure 2-10 Signal connections for high-precision speed control
by motion controller supplying an analog speed reference
Parameter Setting
1.14 {0.30} 1
Motion controller
RUN
DIGITAL I/O
AT ZERO SPEED
Speed reference
(±10V)
SIM ENC
0V
STANDALONE
High-precision
analog input
0V COMMON
SPEED
TORQUE
0V COMMON
24V user supply
RESET
Analog output 1
Analog output 2
Digital input 1
Digital input 6
Encoder
feedback
Simulated
encoder outputs
Frequency and
Direction outputs
Quadrature A
Frequency
Quadrature B
Direction
Z marker pulse
Cable shields
Digital output 2
MC/EIA485
Hardware enable
24V user supply
Hardware enable
Status
relay
Drive monitoring
