Control Techniques M'Ax 403 User Manual

*
M’Ax User Guide 15
Issue Number: 4
Signal connections for standard-precision speed
control by motion controller supplying an analog
speed reference
Suitable for version:
_SL
(If required, refer to the rating label on the right side of the Drive to find
the version code.)
Version _SL: The Drive must be set up via serial communications. Use
a PC, or the motion controller if it has an EIA485 interface.
For connections, see Figure 2-7 Signal connections for remote control
and setting up by serial communications (PC running a dedicated
application program or a PLC) on page 12.
Connections shown in grey are optional.

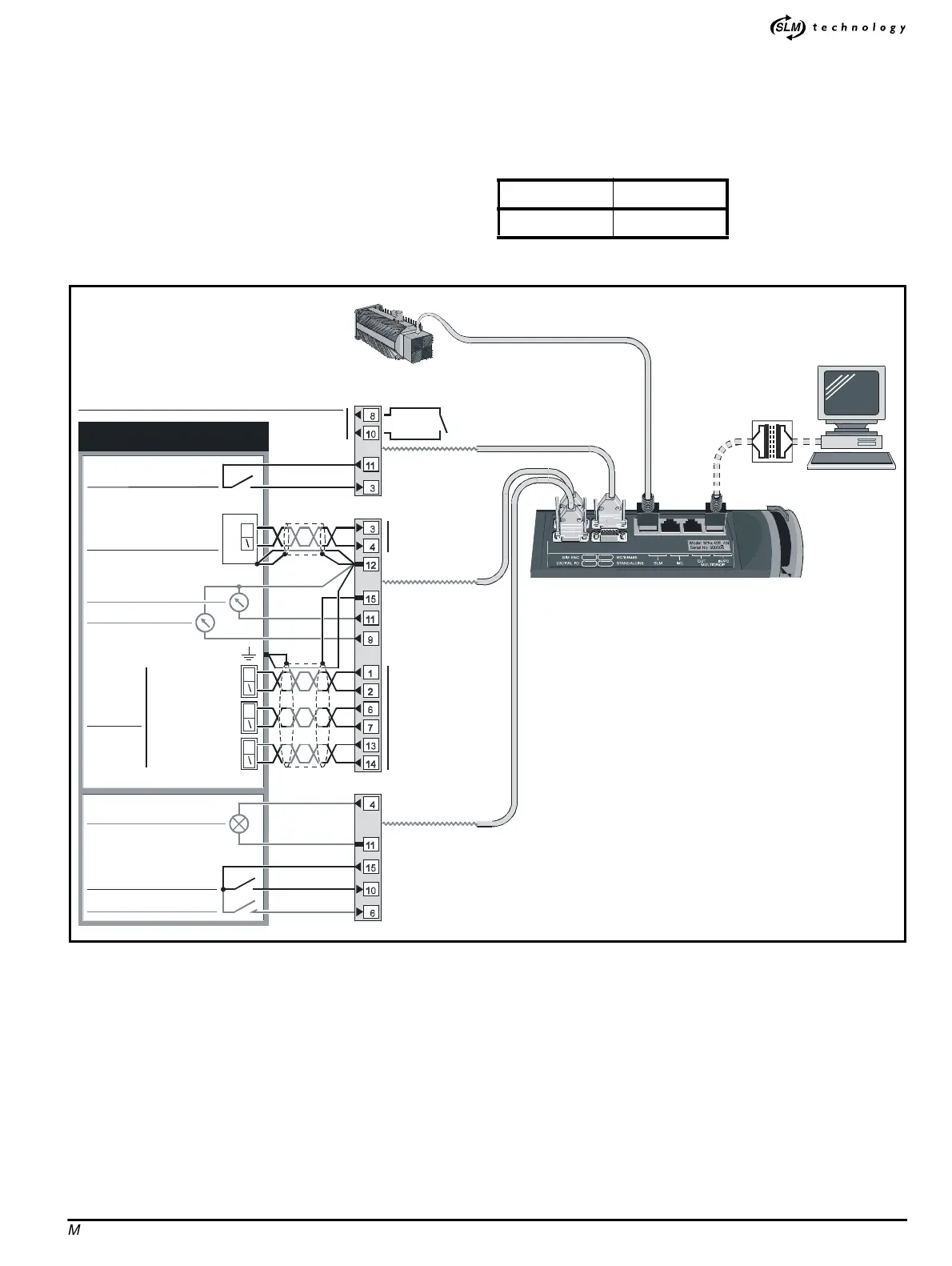

Figure 2-11 Signal connections for standard-precision speed
control by motion controller supplying an analog speed reference
Parameter Setting
1.14 {0.30} 1
Motion controller
RUN
DIGITAL I/O
AT ZERO SPEED
SIM ENC
0V
Speed reference
(±10V)
Standard-precision
analog input
SPEED
TORQUE
0V COMMON
24V user supply
RESET
Analog output 1
Analog output 2
Digital input 1
Digital input 6
Encoder
feedback
Simulated
encoder outputs
Frequency and
Direction outputs
Quadrature A
Frequency
Quadrature B
Direction
Z marker pulse
Cable shields
Digital output 2
MC/EIA485
Hardware enable
24V user supply
Hardware enable
Status
relay
Drive monitoring
_SL only
Isolation
device
